RGD2120Z CSM

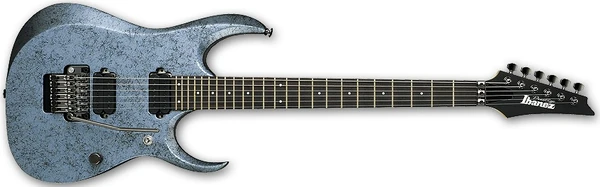

RGD2120Z Cobweb Silver Metallic (more images) Red copyright sprite

The RGD2120Z is an RGD series solid body electric guitar model introduced by Ibanez in 2010. It was made in Japan by FujiGen as part of the upscale Prestige line.

The RGD2120Z was one of the initial models in the new RGD series, which features an RG-based body shape with extra bevels at the top edge of the body and the horn cuts. The RGD models are built for down-tuning with a longer 26½" scale.

The RGD2120Z features a basswood body bolted to a maple and walnut neck with a 24-fret rosewood fingerboard with small dot position markers. Components include a pair of Ibanez V7 Custom and V8 Custom humbucking pickups, an Edge Zero double locking tremolo bridge with a ZPS3 tuning stabilizer and Gotoh tuning machines.

Titanium reinforcing rods were added to the neck for 2011.

Other RGD models include the seven-string RGD2127Z Prestige and the more affordable RGD320Z.

Specifications

Specifications for RGD2120Z
Model name: RGD2120Z
Year(s) produced: 2010–2012
Sold in: Worldwide
Made in: Japan
Finish(es): Cobweb Silver Metallic (CSM) / Invisible Shadow (ISH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge Zero w/ ZPS3 stabilizer
Hardware color:
Cosmo black
Neck
Neck type:
Wizard HP Prestige RGD
Neck material:
2010: 5-piece maple/ walnut
2011–2012: 5-piece maple/ walnut w/ KTS titanium reinforcement
Scale length:
673.5mm/ 26½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl small dot
Frets:
24 / jumbo
Nut:
Barless Top-Lok
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez V8 Custom (H)
Neck pickup:
Ibanez V7 Custom (H)
Controls:
Master volume / 3-way toggle
String gauge (factory):
.010–.046
Factory tuning:
1D, 2A, 3F, 4C, 5G, 6D

Images

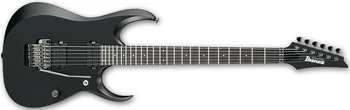

RGD2120Z ISH
RGD2120Z Invisible Shadow Red copyright sprite
