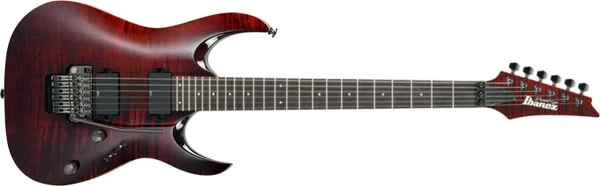

RGA420Z PRT.jpg
RGA420Z Predator's Tongue (more images) Red copyright sprite.png

The RGA420Z is an RGA series solid body electric guitar model introduced by Ibanez in 2010. It was made in Japan by FujiGen as part of the upscale Prestige line.

The RGA420Z features a flamed maple top with natural binding on a sculpted mahogany body bolted to a maple and walnut neck with a 24-fret rosewood fingerboard with dot position markers. Components include dual, covered Ibanez active humbucking pickups with an Active EQ control, an Edge Zero double locking tremolo bridge with a removable ZPS tuning stabilizer and Gotoh tuning machines.

The RGA420Z was among the first RGA models equipped with a tremolo, along with the seven string RGA427Z and the RGA220Z which is similar to the RGA420Z but lacks the flamed maple top.

The RGA420Z was discontinued after 2012.


Specifications for RGA420Z
Model name: RGA420Z
Year(s) produced: 2010–2012
Sold in: Worldwide
Made in: Japan
Finish(es): Devil's Shadow (DSH) / Predator's Tongue (PRT)
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top w/ binding
Neck joint:
Edge Zero tremolo w/ ZPS3 stabilizer
Hardware color:
Cosmo black
Neck type:
Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Fingerboard inlays:
Pearl dot
24 / jumbo
Barless Top-Lok
Machine heads:
Gotoh SG381
Pickup configuration:
Bridge pickup:
2010: Ibanez LoZ4-B active (H)
2011–2012: Ibanez CAP-LZ20 active (H)
Neck pickup:
2010: Ibanez LoZ4-N active (H)
2011–2012: Ibanez CAP-LZ10 active (H)
Master volume / 3-way lever pickup selector / active EQ knob

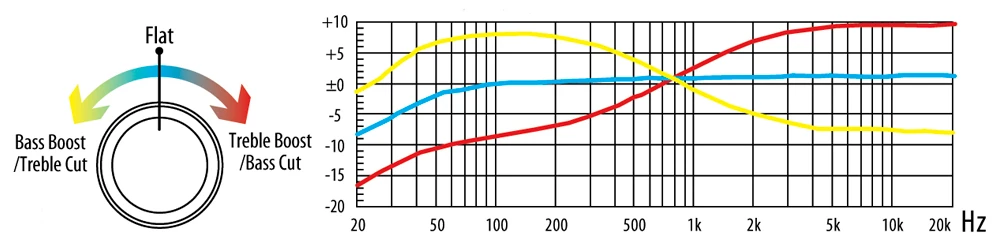

Active EQ

Active EQ.jpg

In place of the typical tone knob, the RGA420Z has an Active EQ controlled with the Active EQ knob. This EQ allows for everything from a bass boost/treble cut to treble boost/bass cut in a sooth and natural curve.

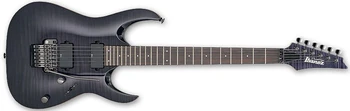

RGA420Z DSH.jpg
RGA420Z Devil's Shadow Red copyright sprite.png
