RG870QMZ BI

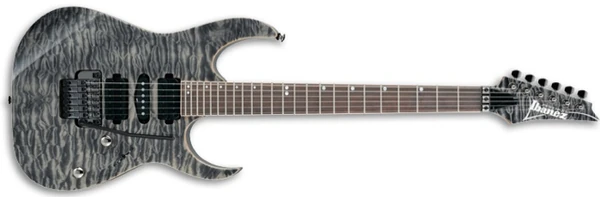

RG870QMZ Black Ice (more images) Red copyright sprite

The RG870QMZ is an RG series solid body electric guitar model introduced by Ibanez in 2011. It is part of the new Premium line of Indonesian made higher-grade models.

The RG870QMZ has a basswood body with quilted maple top, Ibanez VM pickups, a Wizard Premium neck and an Edge Zero II tremolo bridge.

For the US market, a similar model with DiMarzio IBZ pickups and no KTS Titanium Reinforcement is issued as the RG920QMZ. Another RG Premium model without the quilted maple top is issued as the RG870Z.

The RG870QMZL is a left-handed version. A similar model with a rosewood top, Dimarzios pickups, no KTS Titanium and white off-set dots, the RG870RWZ was offered in late 2015.

Specifications[]

Related content: Premium series | RG series | Models-icon
Specifications for RG870QMZ
Model name: RG870QMZ
Year(s) offered: 2011–2012
Sold in: Worldwide (except the USA)
Made in: Indonesia
Finish(es): Blazing Dusk (BDK) 2012 / Black Ice (BI) / High Voltage Violet (HVV) / Red Desert (RDT)
Body
Body type:
Solid body
Body material:
Basswood w/ quilted maple top w/ binding
Neck joint:
AANJ
Bridge:
Edge Zero II w/ ZPS3Fe stabilizer
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
Wizard Premium
Neck material:
5-piece maple/ walnut w/ KTS titanium reinforcement rods
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Offset pearl dot
Frets:
24 / jumbo nickel silver (Premium edge treatment)
Nut:
Barless Top-Lok (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez CAP-VM2 (H)
Middle pickup:
Ibanez CAP-VM1S (S)
Neck pickup:
Ibanez CAP-VM1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other available finishes

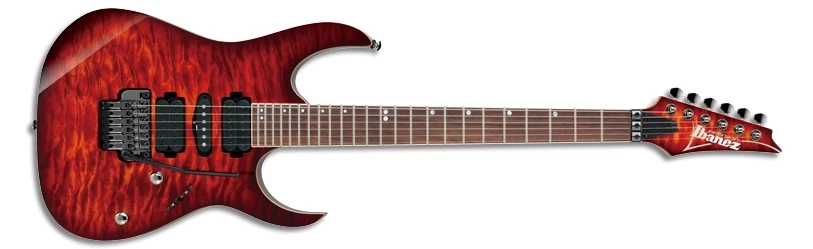

RG870QMZ BDK
Blazing Dusk

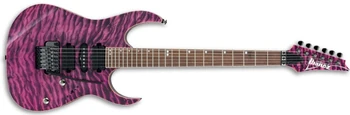

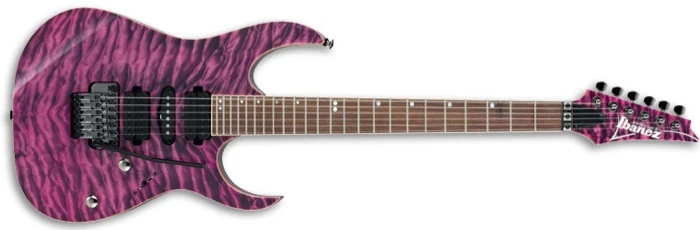

RG870QMZ HVV
High Voltage Violet

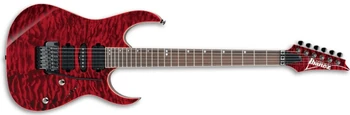

RG870QMZ RDT
Red Desert

Videos[]

2011 Ibanez RG870QMZ-BI "Black Ice" ( featuring : Marco Sfogli )
2011 Ibanez RG870QMZ-HVV "High Voltage Violet" ( featuring : Marco Sfogli )
