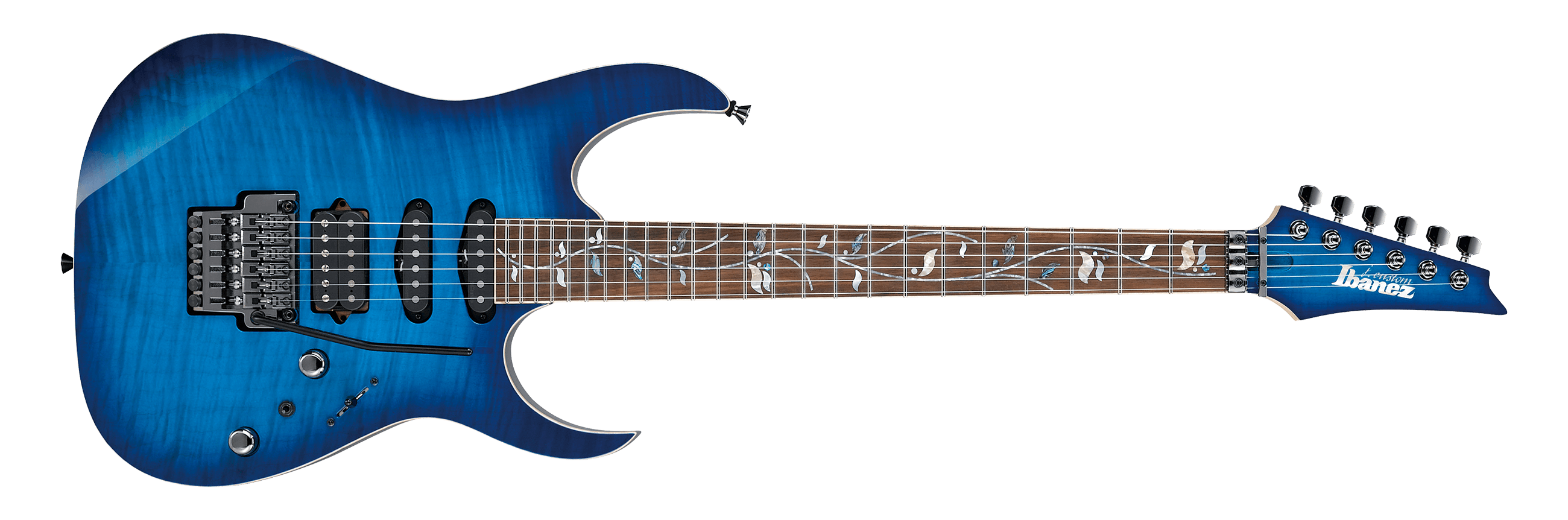

2020 RG8560 SPB 00 01
RG8560 Sapphire Blue (more images) Red copyright sprite

The RG8560 is an RG series solid body electric guitar model introduced by Ibanez in 2020. It was made in Japan by FujiGen as part of the high-end J Custom line.

The RG8560 features a 4mm thick flamed maple top with natural binding on an African mahogany body bolted to a maple and wenge neck with VelveTouch finish and a Macassar ebony fingerboard with flame maple binding and Tree of Life inlays. Components include a Lo-Pro Edge double locking tremolo bridge, DiMarzio Black Velvet pickups with a humbucker at the bridge with a mini-toggle coil split switch and single-coils in the neck and middle positions, Gotoh tuning machines and Gotoh locking strap pins.

The RG8520 is a related model with a pair of humbucking pickups. The RG8560SLTD is a similar spot model with a sapele burl top. The RG8560KE is a similar model with a figured Hawaiian koa top.

The RG8560 was discontinued after 2022.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for RG8560
Model name: RG8560
Year(s) offered: 2020–2022
Sold in: Japan
Made in: Japan
Price: MSRP: ¥ (2020[1]–2022[2])
Finish(es): Brownish Sphalerite (BSR) / Sapphire Blue (SPB)
Body
Body type:
Solid body
Body material:
African mahogany w/ 4mm AAA flamed maple top w/ natural binding
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Strap buttons:
Gotoh Free Lock-II
Knob style:
Gotoh VK1-19 knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
RG J Custom Super Wizard
Neck material:
5-piece maple/ wenge
Scale length:
648mm/ 25½"
Fingerboard material:
Macassar ebony w/ flamed maple binding
Fingerboard inlays:
Tree of life
Frets:
24 / jumbo nickel silver (j.custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
DiMarzio Black Velvet humbucker (H) passive/ alnico
Middle pickup:
DiMarzio Black Velvet middle (S) passive/ alnico
Neck pickup:
DiMarzio Black Velvet neck (S) passive/ alnico
Switch:
VLX91
Controls:
Master volume / master tone / 5-way lever pickup selector / mini-toggle coil-split switch
Output jack:
¼" stereo barrel (angled side mount)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other finishes

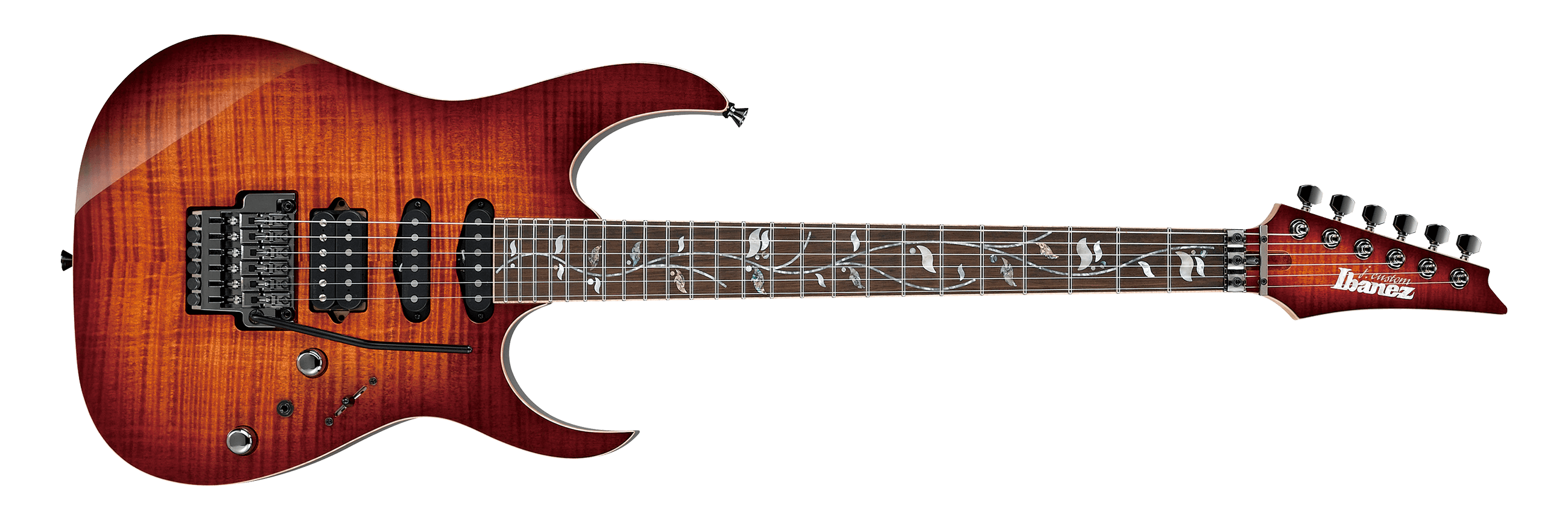

2020 RG8560 BSR 00 01
Brownish Sphalerite
Additional details

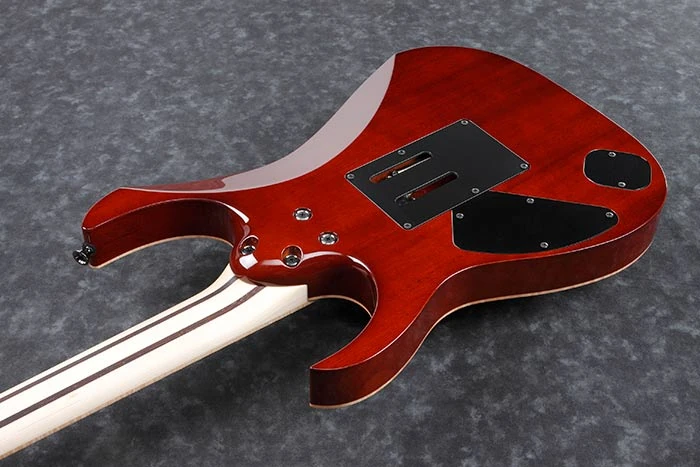

2021 RG8560 BSR 00 01 back
Rear of body (BSR finish)
HSS 5-way coil-tap-toggle
Pickup switching
Controls VT5 coil-split-toggle
Controls layout

Sources[]

  1. 2020 Japan catalog (p. 10)
  2. RG8560 product page, Ibanez Japan, archived May 2022
  • RG8560 product page, Ibanez Japan, archived April 2020
  • RG8560 product page, Ibanez Japan, archived January 2021
