For other models with the a similar name, see RG8520 (disambiguation).

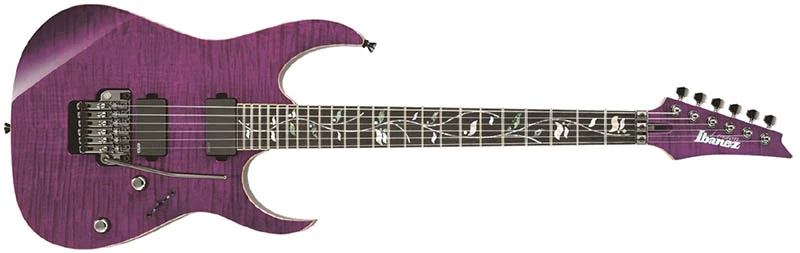

2017 RG8520ZE PA
RG8520ZE Purple Amethyst (more images) Red copyright sprite

The RG8520ZE is an RG series solid body electric guitar model introduced by Ibanez in 2017. It was made in Japan by FujiGen as part of the high-end J Custom line. It was a spot model sold exclusively through Japanese retailer Ikebe Gakki.

The RG8520ZE features a 4mm thick exotic maple top with binding on an African mahogany body bolted to a titanium reinforced maple and walnut neck with a 24-fret rosewood fingerboard with Tree of Life vine inlays. Components include an Edge Zero double locking tremolo bridge with a removable ZPS tuning stabilizer, dual EMG active humbucking pickups and Gotoh tuning machines.

The RG8520 is a similar model with DiMarzio pickups while the RG8420ZD is a similar model with Seymour Duncan pickups. The RG8420ZE is a similar model which was offered previously.

The RG8520ZE was offered only in 2017.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for RG8520ZE
Year(s) offered: 2017
Sold in: Japan
Made in: Japan
Finish(es): Black Onyx (BX) / Natural (NT) / Purple Amethyst (PA) / Royal Blue Sapphire (RBS) / Red Spinel (RS)
Body
Body type:
Solid body
Body material:
African mahogany w/ 4mm selected exotic maple top w/ binding
Neck joint:
AANJ
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer
Hardware color:
Cosmo black
Neck
Neck type:
RG J Custom Super Wizard
Neck material:
5-piece maple/ walnut w/ KTS titanium rods
Scale length:
648mm/ 25½"
Fingerboard material:
Selected rosewood
Fingerboard inlays:
Tree of life
Frets:
24 / jumbo (Prestige edge treatment)
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
String gauge (factory):
.009–.042
Electronics
Pickup configuration:
HH
Bridge pickup:
EMG 81 (H) active/ ceramic
Neck pickup:
EMG 60 (H) active/ ceramic
Controls:
Master volume / master tone / 3-way lever pickup selector

Images[]

Other available finishes

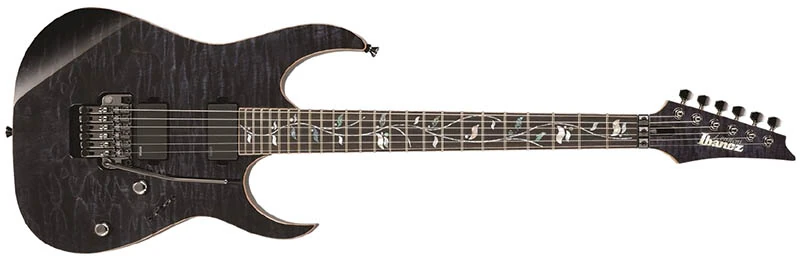

2017 RG8520ZE BX
Black Onyx

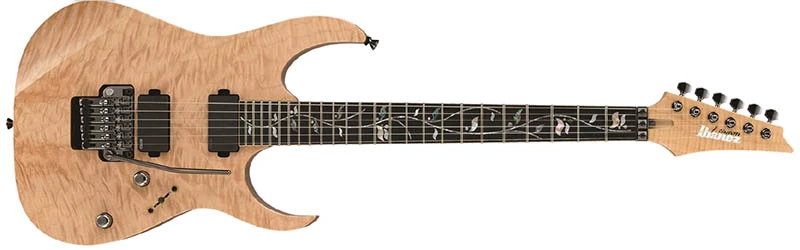

2017 RG8520ZE NT
Natural
2017 RG8520ZE RBS
Royal Blue Sapphire

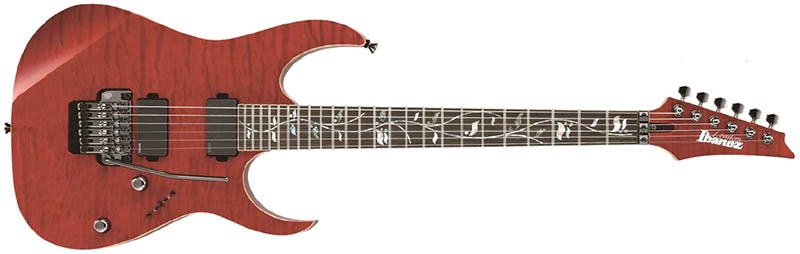

2017 RG8520ZE RS
Red Spinel
