RG8020G

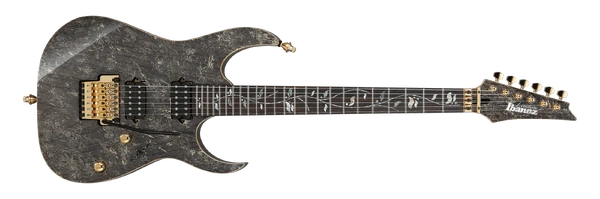

RG8020G Black Quartz (more images)

The RG8020G is an RG series solid body electric guitar model introduced by Ibanez in 2022. It is made in Japan by FujiGen as part of the high end J Custom line.

The RG8020G features a one-piece ash body bolted to a maple and wenge neck with a 24-fret rosewood fingerboard with pearl and abalone Tree of Life inlays and Luminlay side dots. Components include a pair of DiMarzio humbucking pickups with an Air Norton in the neck position and a The Tone Zone at the bridge, a Lo-Pro Edge double locking tremolo bridge, gold hardware, Gotoh SG381 machine heads and Gotoh Strap lock pins.

It's believed that approximately twenty-four examples were created.

Specifications

Related content: J Custom series | RG series |

Specifications for RG8020G

Model name: RG8020G Year(s) offered: 2022–2024 Sold in: Japan Made in: Japan Price: MSRP: JP¥ 360,000 (2022–2024) Finish(es): Black Quartz (BQZ)
Body Body type: Solid body Body material: Ash one piece (44mm thick) Neck joint: AANJ Bridge: Lo-Pro Edge tremolo (10.8mm string spacing) Knob style: Gotoh VK1-19 (knurled metal dome) Hardware color: Gold	Neck Neck type: RG J Custom Super Wizard Neck material: 5-piece maple/ wenge Scale length: 648mm/ 25½" Fingerboard material: Rosewood Fingerboard inlays: Pearl/ abalone Tree of Life/ Luminlay side dots Frets: 24 / jumbo stainless steel (J.custom edge treatment) Nut: Top-Lok III Gotoh (43mm) Machine heads: Gotoh SG381 String gauge (factory): .009/.011/.016/.024/.032/.042 (D'Addario EXL120) Factory tuning: 1E,2B,3G,4D,5A,6E (E Std.)	Electronics Pickup configuration: HH Bridge pickup: DiMarzio The Tone Zone (H) passive/ alnico Neck pickup: DiMarzio Air Norton (H) passive/ alnico Controls: Master volume / master tone / 5-way lever pickup selector / push-pull high pass filter on volume Output jack: ¼" stereo barrel (angled side mount)

About this table

Images

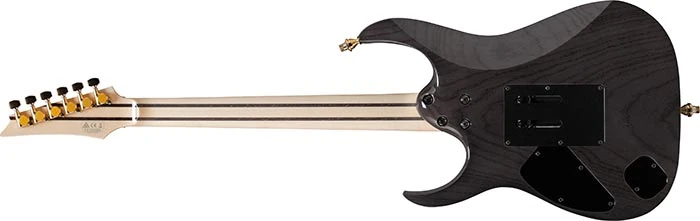

2022 Ibanez RG8020G ( Rear: Ash body bolted to a 5-piece maple & wenge RG J.Custom Super Wizard neck and Gotoh SG381 machine heads )

Additional details

Front of body

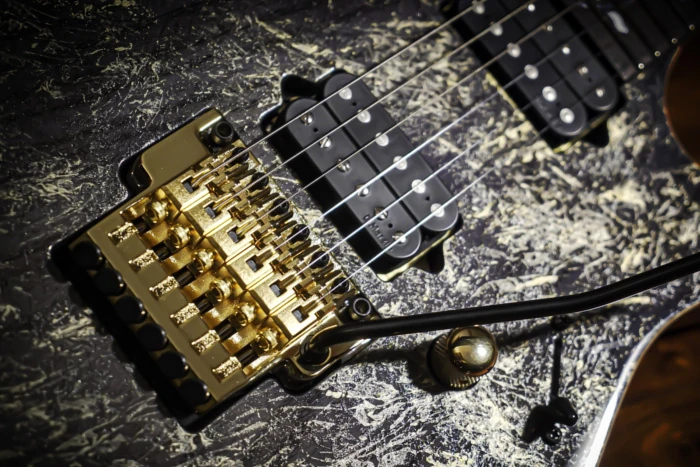

Lo-Pro Edge tremolo

DiMarzio pickups

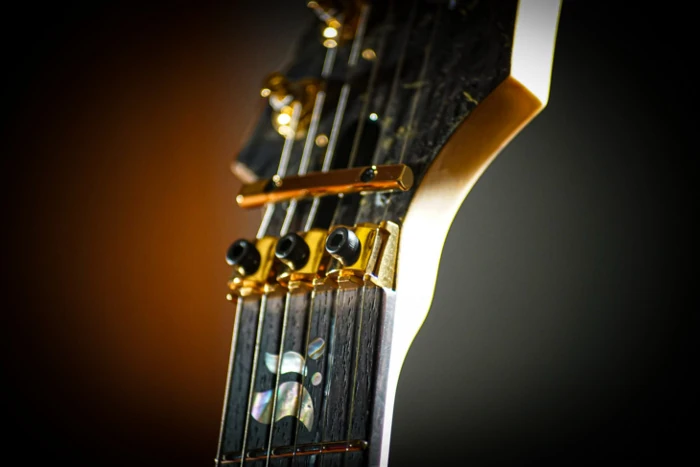

Gotoh Top-Lok III

Controls layout

Pickup switching

Video

2020 Ibanez RG8020G ( Featuring: HAZUKI from NEMOPHILA, Li-sa-X BAND ) playing “Petrichor”

Sources

• 1pcアッシュ･ボディとカスタム･フィニッシュで完成するj.custom "RG8020G-BQZ", Ibanez Japan, archived February 2022
• RG8020G product page, Ibanez Japan, archived January 2023
