1993 RG770QM LA

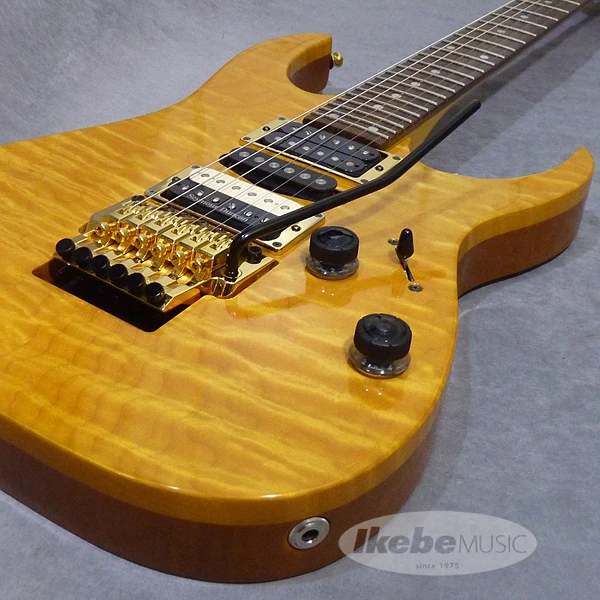

RG770QM Light Amber (more images) Red copyright sprite

The RG770QM is an RG series solid body electric guitar model introduced by Ibanez for 1993. It was made in Japan by FujiGen and was a spot model which never appeared in a catalog. It has also been referred to as the RG7CTQM.

The RG770QM features a thick quilted maple top on a mahogany body bolted to a maple neck with a 24-fret rosewood fingerboard with pearloid dot position markers. Components include DiMarzio IBZ/USA pickups with two humbuckers flanking a single-coil, a Lo-Pro Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines.

The RG770 is a similar model without the exotic top and with sharktooth fretboard markers. The RG770FM is a related model with a flamed maple top and sharktooth markers. The RG7CTTL is a related model with a curly maple top, gold hardware and Tree of Life fretboard inlays.

Very little information is known about this model. It is believed to have been available only in Japan and only in limited quantities.

Specifications[]

Related content: RG series | Models-icon
Specifications for RG770QM / RG7CTQM
Model name: RG770QM / RG7CTQM
Year(s) offered: 1993
Sold in: USA
Made in: Japan
Finish(es): Light Amber (LA)
Body
Body type:
Solid body
Body material:
Mahogany w/ quilted maple top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Hardware color:
Gold
Neck
Neck type:
Wizard
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Pearloid dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HSH
Bridge pickup:
IBZ/USA F2 (H)
Middle pickup:
IBZ/USA C2 (S)
Neck pickup:
IBZ/USA F4 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)

Images[]

Additional details
RG 770QM case-candy
Hang tag and warranty card
RG770QM top
10mm thick top
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
1994 RG770 wiring diagram
Wiring diagram
