For the more recent RG770FM, see RG770FM (2001–2002).
RG770FM BS

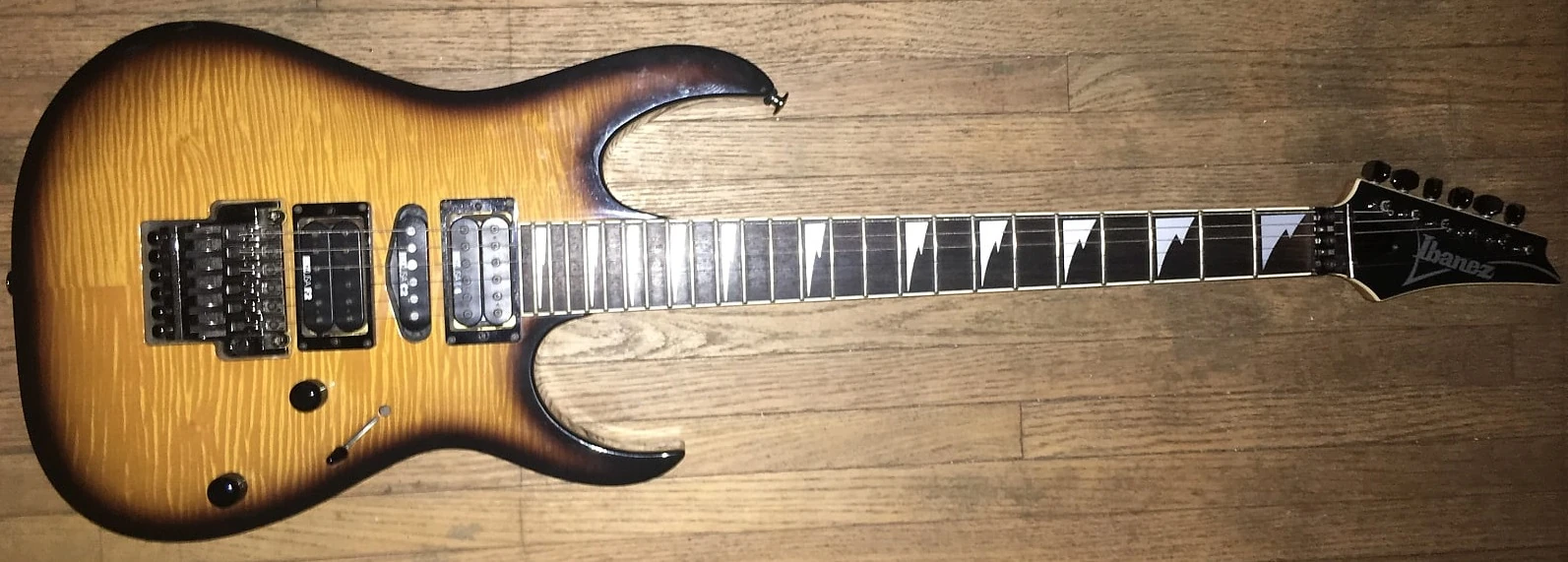

RG770FM Brown Sunburst (more images) Red copyright sprite

The RG770FM is an RG series solid body electric guitar model introduced by Ibanez for 1990. It was part of the Roadstar II series which later became know as the RG series. It was made in Japan by FujiGen and was available only in the USA market.

The RG770FM features a flamed maple top on a basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with binding and sharktooth position markers. Components include DiMarzio IBZ/USA pickups with F2 & F4 humbuckers flanking a C2 noiseless, stacked single-coil, an Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines.

The RG770 is a similar model without the exotic top. The RG770QM is a related model with a quilted maple top and dot position markers.

This RG770FM was available for only one year, but another model with the same name was offered in Japan only in 2000.

Specifications[]

Related content: RG series | Roadstar II series | Models-icon
Specifications for RG770FM (1990)
Model name: RG770FM (1990)
Year(s) offered: 1990
Sold in: USA
Made in: Japan
Finish(es): Brown Sunburst (BS) / Cherry Sunburst (CS)
Body
Body type:
Solid body
Body material:
Basswood w/ flamed maple top
Neck joint:
Tilt Joint
Bridge:
Edge tremolo (10.8mm string spacing)
Hardware color:
Cosmo black
Neck
Neck type:
Wizard
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Sharktooth
Frets:
24
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
IBZ/USA F2 (H)
Middle pickup:
IBZ/USA C2 (S)
Neck pickup:
IBZ/USA F4 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

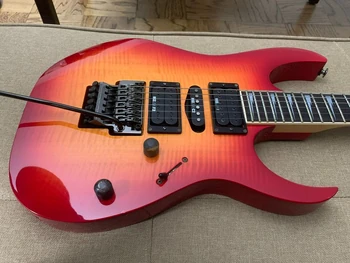

RG770FM CS (front)
Cherry Sunburst (Front)
RG770FM CS
Cherry Sunburst

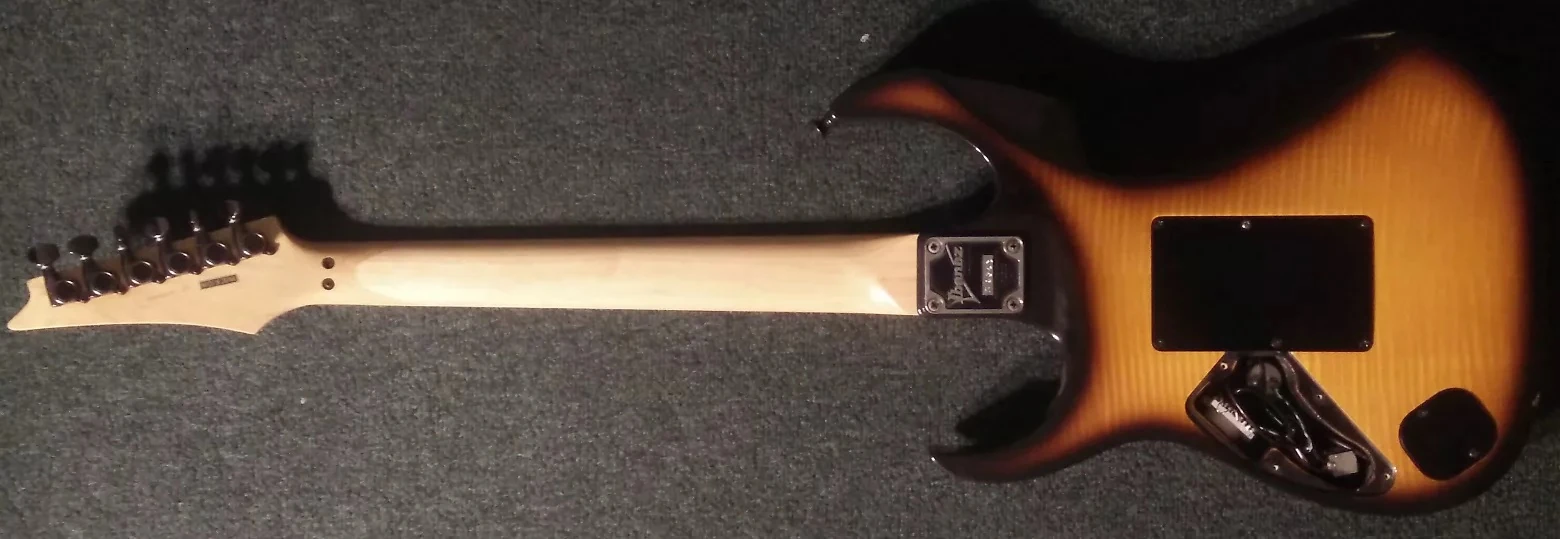

RG770FM BS rear
Brown Sunburst (Rear)

Video[]

1990 Ibanez RG770FM - CS ( Demo by "Good Guitars" )
