For the reissue of this model, see RG770DX (2008).

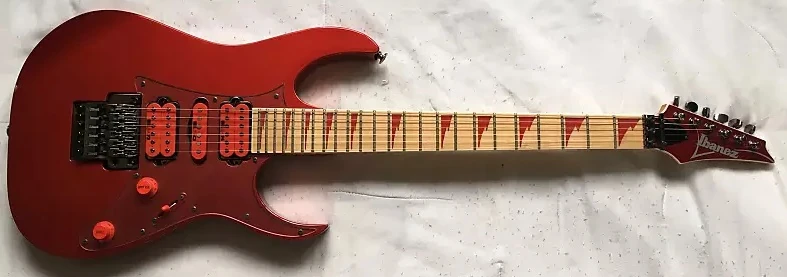

RG770DX RR 1
RG770DX Ruby Red (more images) Red copyright sprite

The RG770DX is an RG series solid body electric guitar model introduced by Ibanez in 1991. It was originally part of the Roadstar II series which later became to be known as the RG series. It was made in Japan by FujiGen.

The RG770DX features a basswood body bolted to a maple Wizard neck with a 24-fret maple fingerboard with binding and sharktooth position markers which match the finish color. Components include color-matched DiMarzio-made IBZ/USA pickups with two humbuckers flanking a single-coil, a double locking tremolo bridge with a locking nut, Gotoh tuning machines and a clear pickguard.

Initially the Edge tremolo was used, but that was replaced with the Lo-Pro Edge when that new tremolo was introduced for 1992.

The RG770DX was discontinued after 1993; a similar model was introduced in 1994 as the RG670DX. A limited edition reissue was offered in 2008.

Specifications

Specifications for RG770DX
Model name: RG770DX
Year(s) produced: 1991–1993
Sold in: Worldwide
Made in: Japan
Finish(es): Candy Apple (CA) 1992 / Laser Blue (LB) / Ruby Red (RR) 1991 / Violet Metallic (VM) 1992–1993
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt Joint
Bridge:
1991: Edge tremolo
1992–1993: Lo-Pro Edge tremolo
Pickguard:
Clear
Knob style:
Top hat (color-matched)
Hardware color:
Cosmo black
Neck
Neck type:
Wizard
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Maple w/ binding
Fingerboard inlays:
Color-matched sharktooth
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics
Pickup configuration:
HSH
Bridge pickup:
IBZ/USA F2 (H)
Middle pickup:
IBZ/USA C3 (S)
Neck pickup:
IBZ/USA F4 (H)
Controls:
Master volume / master tone / 5-way lever

Images

Additional finishes/ details
RG770DX CA
Candy Apple

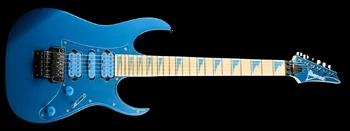

RG770DX LB 1
Laser Blue

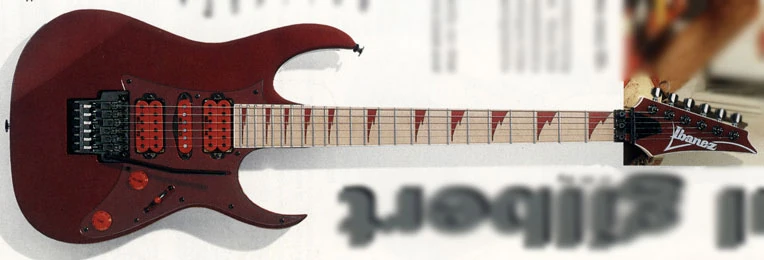

RG770DX VM
Violet Metallic
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
