RG752 CBM

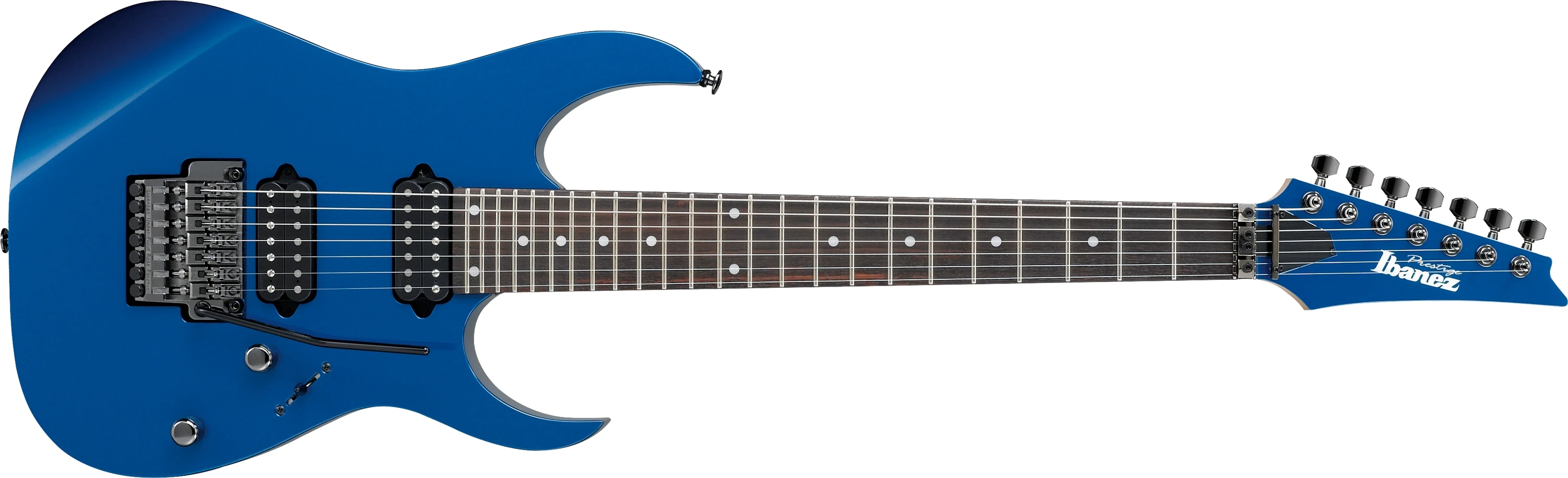

RG752 Cobalt Blue Metallic (more images) Red copyright sprite

The RG752 is a seven string RG series solid body electric guitar model introduced by Ibanez in 2014. It was made in Japan by FujiGen as part of the upscale Prestige line.

The RG752 features a basswood body bolted to a maple and wenge Wizard-7 neck with a 24-fret rosewood fingerboard with pearloid dot position markers. Components include a Lo-Pro Edge 7 double locking tremolo bridge, dual DiMarzio PAF7 humbucking pickups direct-mounted to the body, and Gotoh tuning machines.

The RG752FX is similar except it has a fixed bridge. The RG752AHM which was added in 2016 is similar except it has an ash body and birdseye maple fingerboard. The RG752M is a similar model with a maple fretboard which was introduced in 2019.

The RG752 was discontinued after 2016.

Specifications[]

Related content: Prestige series | RG series | Models-icon
Specifications for RG752
Model name: RG752
Year(s) offered: 2014–2016
Sold in: USA
Made in: Japan
Finish(es): Cobalt Blue Metallic (CBM) / Galaxy Black (GK)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Lo-Pro Edge 7 tremolo
Hardware color:
Cosmo black
Neck
Neck type:
Wizard-7
Neck material:
5-piece maple/ wenge
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio PAF 7 (H) passive/ ceramic
Neck pickup:
DiMarzio PAF 7 (H) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009–.054

Images[]

Other available finishes/ details

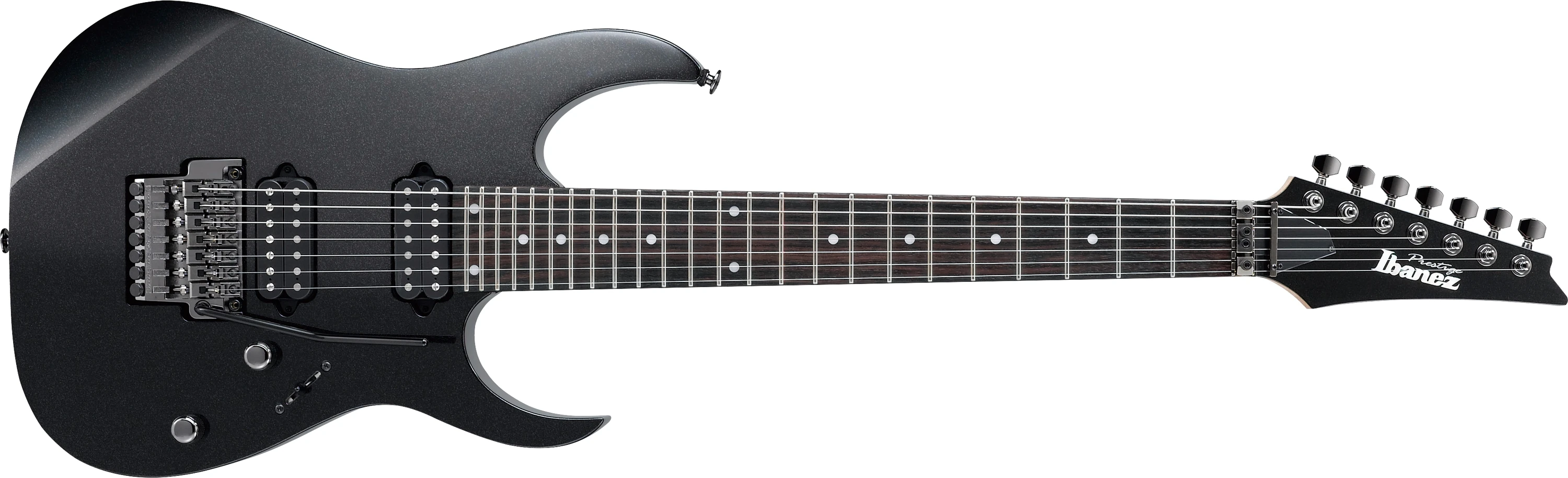

RG752 GK
Galaxy Black
2-Hum 5-way parallel-neck
Pickup switching diagram
Controls VT5
Control layout
