RG7421PB SBF

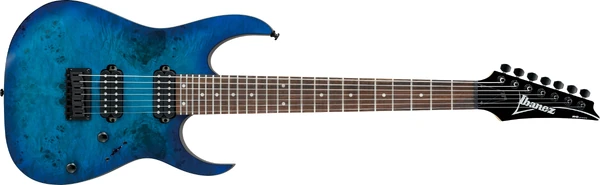

RG7421PB Sapphire Blue Flat (more images) Red copyright sprite

The RG7421PB is a seven string RG series solid body electric guitar model introduced by Ibanez in late 2014. It is produced in Indonesia.

The RG7421PB features a poplar burl top on a mahogany body with bolted to a maple Wizard II-7 neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a fixed bridge and dual Ibanez Quantum humbucking pickups.

For 2018 the rosewood fretboard was replaced with jatoba. For 2019 the mahogany body was replaced with meranti. For 2020 the bridge was replaced with the F107.

The RG7421 is similar model without the exotic top.

Specifications

'
Year(s) produced: 2014–2020
Sold in: Japan 2016–2020 / USA
Made in: Indonesia
Finish(es): Charcoal Brown Flat (CNF) 2014–2015 / Sapphire Blue Flat (SBF) / Transparent Gray Flat (TGF) 2016–2018
Body
Body type:
Solid body
Body material:
2014–2018: Mahogany w/ poplar burl top
2019–2020: Meranti w/ poplar burl top
Neck joint:
AANJ
Bridge:
2014–2019: Fixed 7 bridge
2020: F107 fixed (10.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Wizard II-7
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2014–2017: Rosewood
2018–2020: Jatoba
Fingerboard inlays:
White dot
Frets:
24 / jumbo
Nut:
Black plastic (48mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Quantum 7 (H) passive/ ceramic
Neck pickup:
Ibanez Quantum 7 (H) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever
Output jack:
¼" mono
String gauge (factory):
.010/.013/.017/.026/.036/.046/.059 (D'Addario EXL110-7)
Factory tuning:
1E,2B,3G,4D,5A,6E,7B

Images

Additional finishes/ details

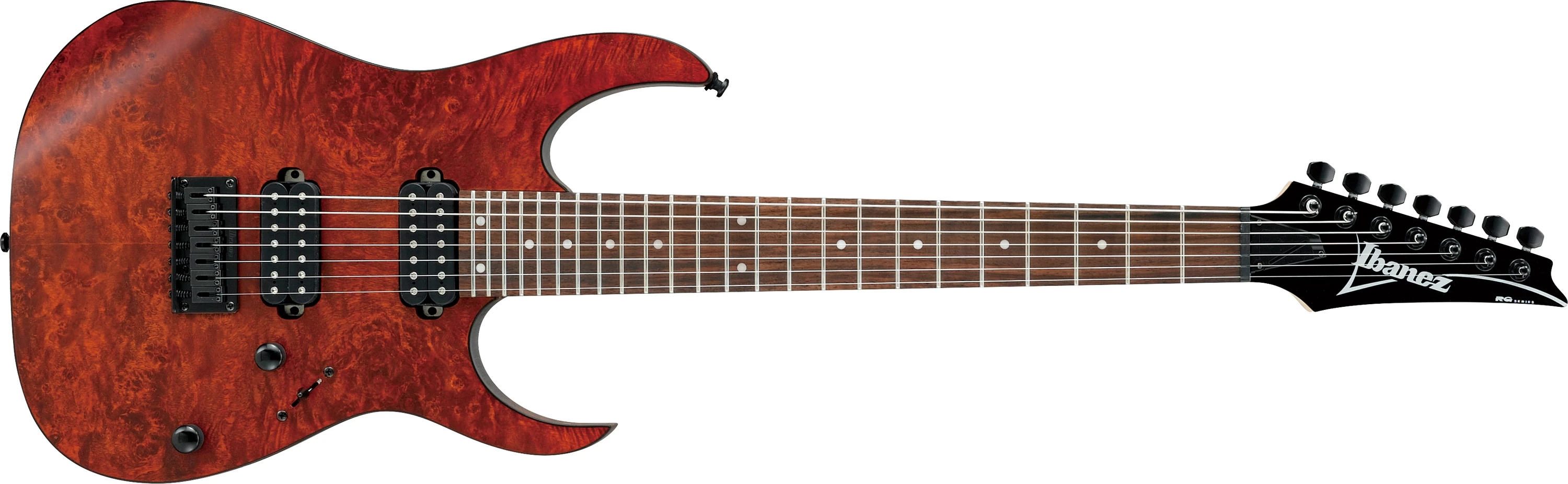

RG7421PB CNF
Charcoal Brown Flat

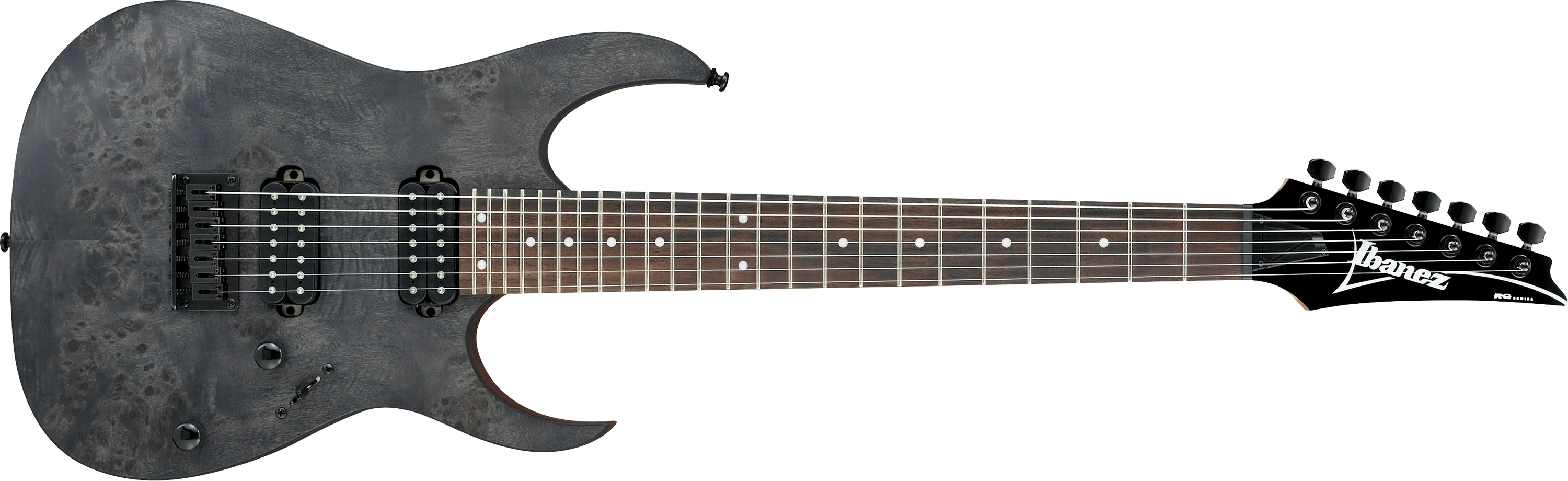

RG7421PB TGF
Transparent Gray Flat
HH 5-way parallel-neck
Pickup switching
Controls VT5
Control layout
