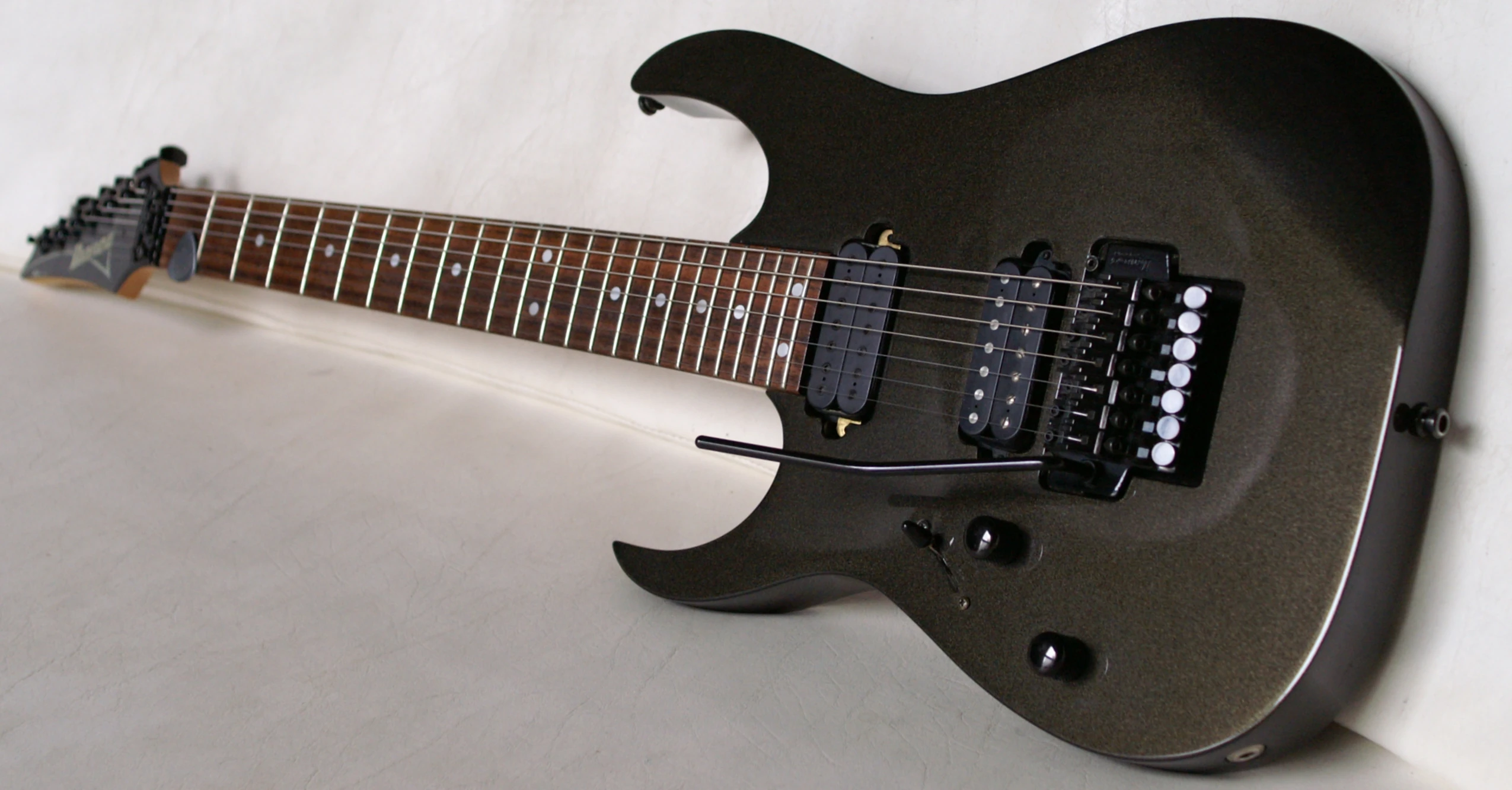

2000 RG7420L front
RG7420L Black (more images) Red copyright sprite

The RG7420L is a seven string left-handed RG series solid body electric guitar model introduced by Ibanez in mid-2000. It was also referred to as the RG7-420L in some instances.

Features of the RG7420L include a basswood body bolted to a maple and bubinga neck with a 24-fret rosewood fingerboard with dot position markers. Components include dual Ibanez Vintage humbucking pickups and a double locking tremolo bridge with a locking nut.

The RG7420 is a right-handed version.

The RG7420L was discontinued after 2002.

Specifications[]

Related content: RG series | Models-icon
Specifications for RG7420L / RG7-420L
Model name: RG7420L / RG7-420L
Year(s) offered: 2000–2002
Sold in: Worldwide
Made in: Japan
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Lo-TRS 7 tremolo
Hardware color:
Black
Neck
Neck type:
Wizard-7 (RG7)
Neck material:
1-piece maple w/ bubinga stripe
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez V87 (H)
Neck pickup:
Ibanez V77 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.010/.013/.017/.026/.036/.046/.059
Factory tuning:
1E,2B,3G,4D,5A,6E,7B

Images[]

Additional images
2002 RG7420L BK
Catalog image

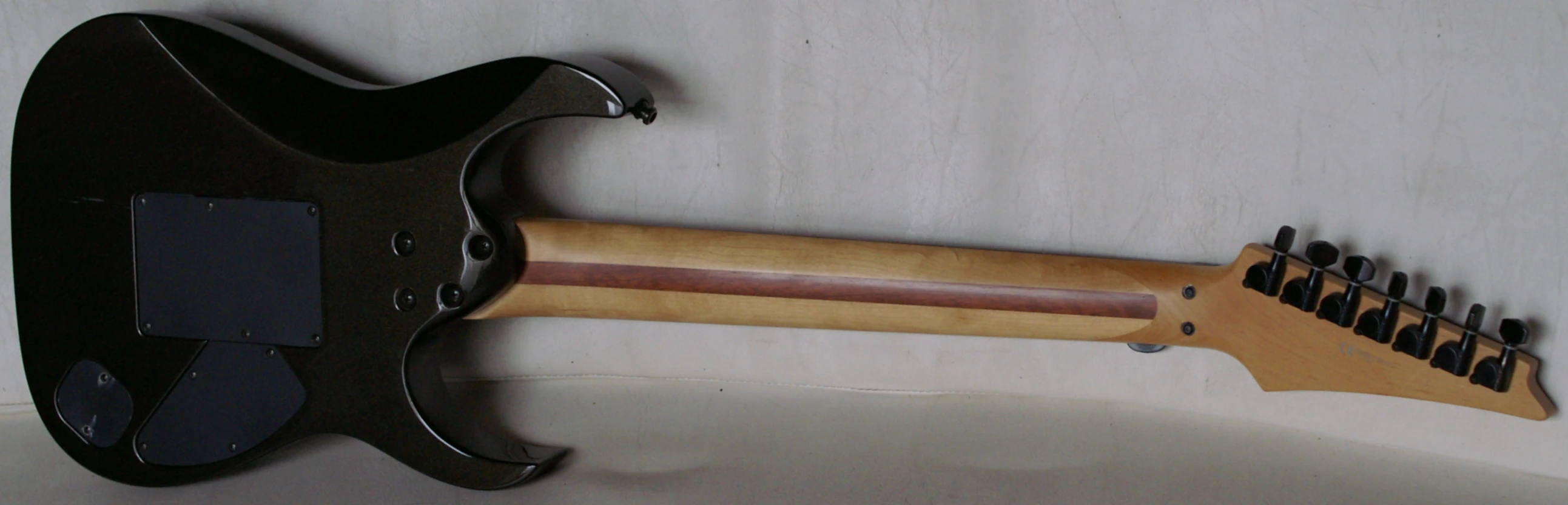

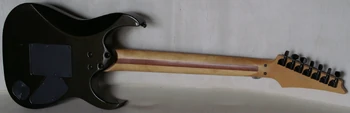

2000 RG7420L back
Back

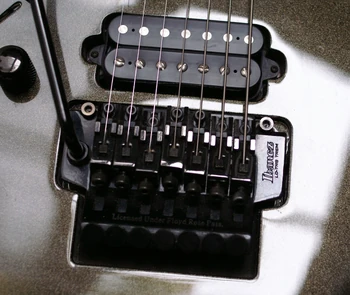

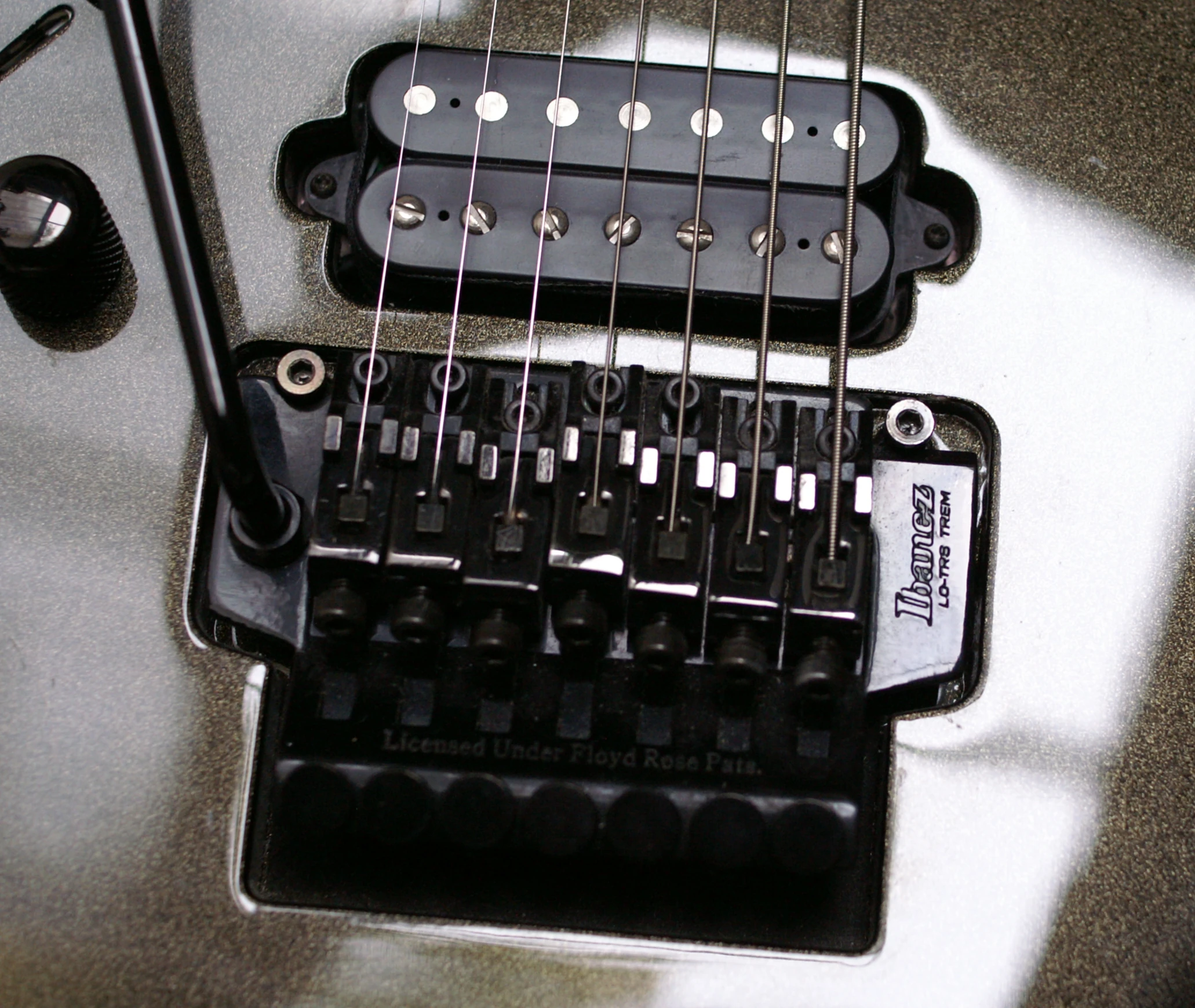

2000 RG7420L tremolo
Lo-TRS-7 tremolo

Non-catalog images courtesy of Phil Wake
