RG652AHM NGB

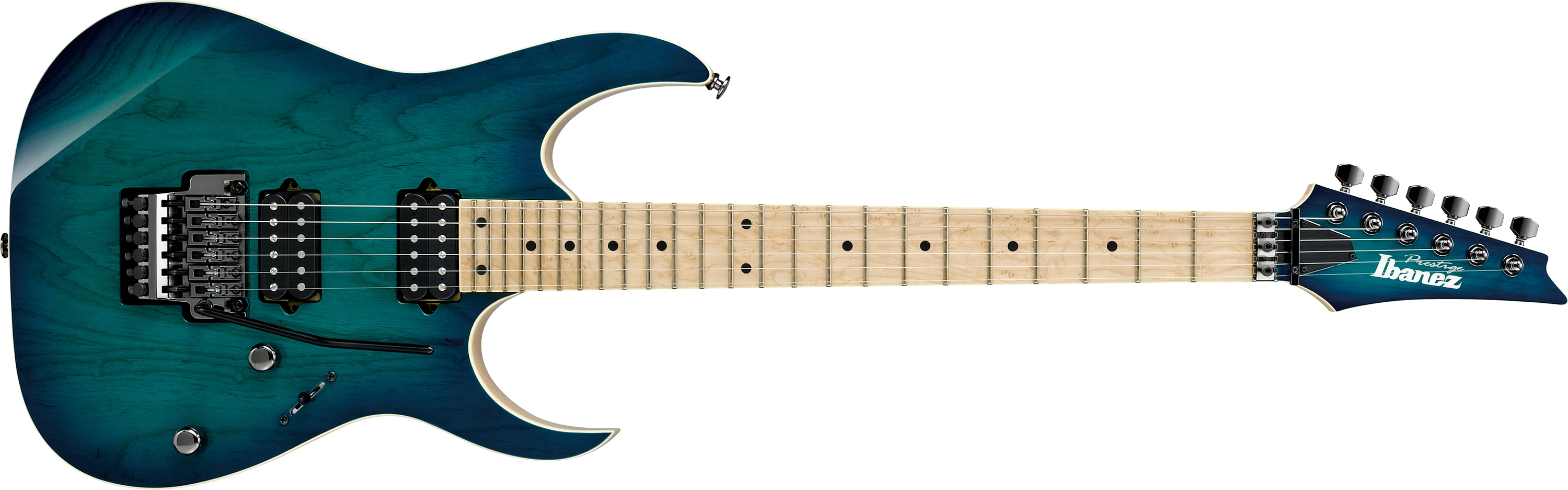

RG652AHM Nebula Green Burst (more images) Red copyright sprite

The RG652AHM is an RG series solid body electric guitar model introduced by Ibanez in 2015. It is made in Japan by FujiGen as part of the Prestige line.

The RG652AHM features an ash body bolted to a maple and walnut neck with a 24-fret birdseye maple fingerboard with cream binding and black dot position markers. Components include an Edge double locking tremolo bridge, dual DiMarzio humbucking pickups and Gotoh tuning machines.

The RG652AHML is a left-handed version. The RG652AHMFX is a similar model with a fixed bridge. The RG652AHMS is a related spot model with different pickups. The RG652K is a related model with an Australian blackwood top and marbled rosewood fretboard. The RG652AG is a related spot model with a puma ash top. The RGR652FM is a related spot model with a flamed maple top on a mahogany body and a reverse headstock. The RG652AM is another related spot model with a special finish.

Specifications

Specifications for RG652AHM
Year(s) produced: 2015–2020
Sold in: Worldwide
Made in: Japan
Finish(es): Antique White Blonde (AWD) 2016–2020; USA & Japan only[1] / Nebula Green Burst (NGB)
Body
Body type:
Solid body
Body material:
Ash
Neck joint:
AANJ
Bridge:
Edge tremolo (10.8mm string spacing)
Knob style:
Gotoh VK1-19 (knurled metal dome)
Hardware color:
Cosmo black
Neck
Neck type:
Super Wizard HP
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Birdseye maple w/ binding
Fingerboard inlays:
Black dot
Frets:
24 / jumbo (Prestige edge treatment)
Nut:
Top-Lok III
Machine heads:
Gotoh SG381 (non-locking)
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio The Tone Zone (H) passive/ alnico
Neck pickup:
DiMarzio Air Norton (H) passive/ alnico
Controls:
Master volume / master tone / 5-way lever
String gauge (factory):
.009/.011/.016/.024/.032/.042

Images

Additional finishes/ details

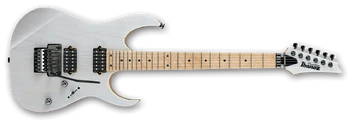

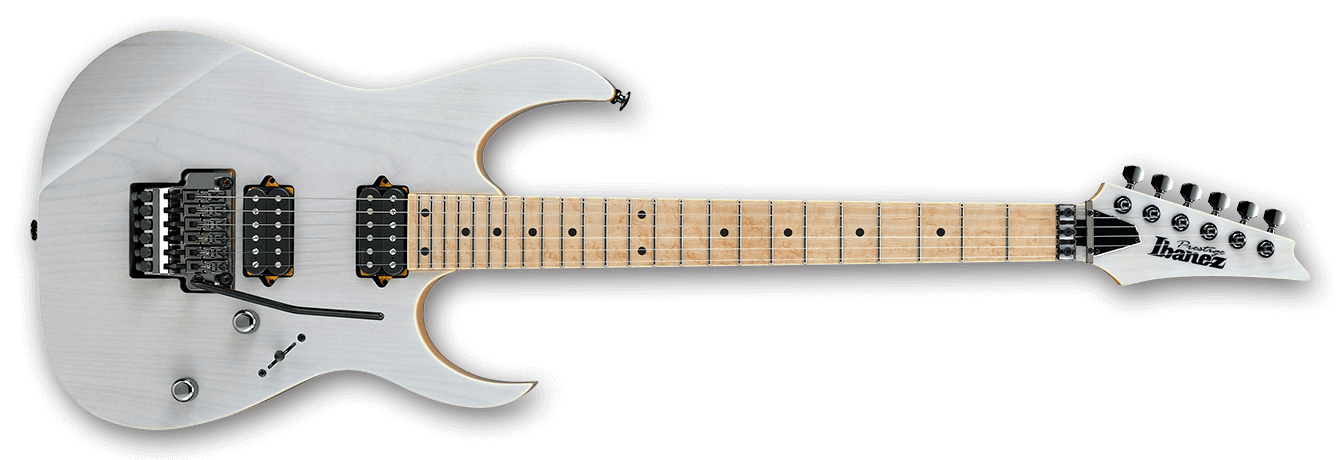

2016 RG652AHM AWD
Antique White Blonde
HH 5-way parallel-neck
Pickup switching diagram
Controls VT5
Control layout

Sources

  1. 2016 USA summer new product book (page 5)
