RG5EX1

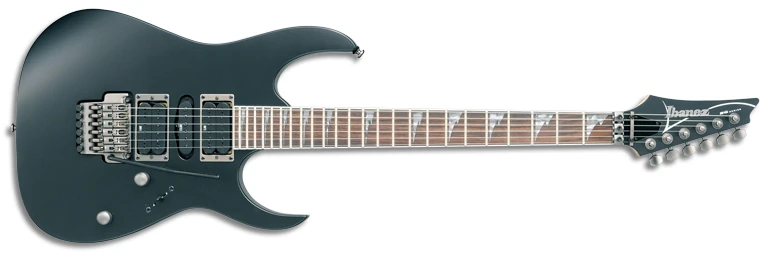

RG5EX1 Black Flat (more images)

The RG5EX1 is an RG series solid body electric guitar model introduced by Ibanez in 2006. It was produced in Indonesia.

The RG5EX1 features a basswood body bolted to a maple neck with a color-matched reverse headstock and a 24-fret bound rosewood fingerboard with black pearloid sharktooth position markers. Components include Ibanez Infinity pickups, a locking nut and an Edge III double locking tremolo bridge.

The RG5EX1L is a left-handed version.

The RG5EX1 was sold only through American musical instrument store chain Guitar Center. It was discontinued after 2010.

Specifications

Related content: RG series |

Specifications for RG5EX1

Model name: RG5EX1 Year(s) offered: 2006–2010 Sold in: USA Made in: Indonesia Finish(es): Black Flat (BKF) / Grey Pewter (GP)
Body Body type: Solid body Body material: Basswood Neck joint: AANJ Bridge: Edge III tremolo Hardware color: Powder cosmo	Neck Neck type: 2006–2009: Wizard II 2010: Wizard III Neck material: 3-piece maple Fingerboard material: Rosewood w/ binding Fingerboard inlays: Black pearloid Sharktooth Frets: 24 / jumbo Nut: 2006–2009: Locking 2010: Barless Top-Lok	Electronics Pickup configuration: HSH Bridge pickup: Ibanez INF4 Middle pickup: Ibanez INFS3 Neck pickup: Ibanez INF3 Controls: Master volume / master tone / 5-way lever pickup selector

About this table

Images

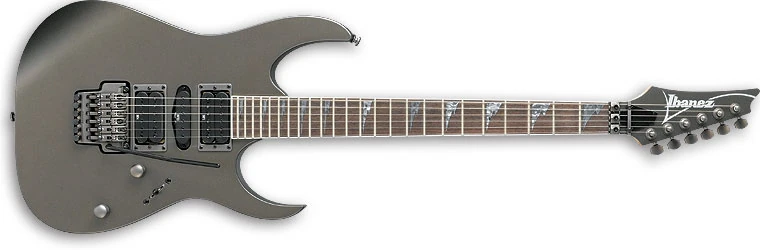

2006 Ibanez RG5EX1 Gray Pewter
