2013 RG550XH BK.jpg

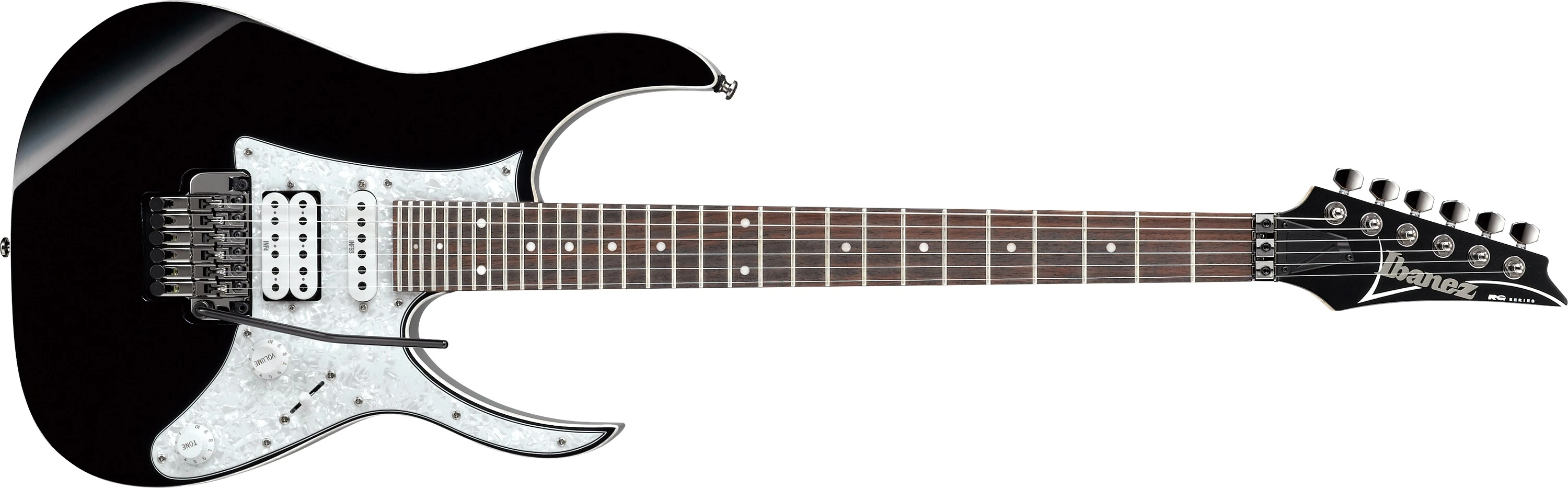

RG550XH Black (more images) Red copyright sprite.png

The RG550XH is an RG series solid body electric guitar model introduced by Ibanez in 2013. It was produced in Indonesia.

The RG550XH is an update of the long-running RG550. The most notable feature of the RG550XH is its extended range 30-fret neck and extra deep lower cutaway to allow the player to reach the extra fingerboard real estate.

The RG550XH features a basswood body bolted to a maple Wizard III neck with a 30-fret rosewood fingerboard with dot position markers. Components include an Edge Zero II double locking tremolo bridge with a removable ZPS tuning stabilizer and Ibanez Infinity pickups mounted in a white pearloid pickguard with a humbucker at the bridge and a single-coil in the middle position. Since the fretboard extends into the space where the neck pickup would be, this models makes use of a "Neck Pickup Simulator", which uses a preamp powered by a 9-volt battery to simulate a neck pickup tone.

The RG2011SC is a similar 30-fret model in the Prestige line.

The RG550XH was discontinued after 2015.

Specifications

Specifications for RG550XH
Model name: RG550XH
Year(s) produced: 2013–2015
Sold in: Worldwide (except Japan)
Made in: Indonesia
Finish(es): Black (BK) 2014–2015 / Blue Sparkle (BSP) 2014 / Red Sparkle (RSP) 2013
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge Zero II tremolo w/ ZPS3Fe stabilizer (10.8mm string spacing)
Pickguard:
White pearloid
Knob style:
Plastic top hat (white)
Hardware color:
Cosmo black
Neck
Neck type:
Wizard III-XH
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Dot
Frets:
30 / jumbo
Nut:
Locking (barless)
Electronics/ Strings
Pickup configuration:
HS
Bridge pickup:
Ibanez INF4 (H)
Middle pickup:
Ibanez INFS3 (S)
Neck pickup:
None (due to the extended fretboard) but emulated via the Neck PU Simulator
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Other available finishes

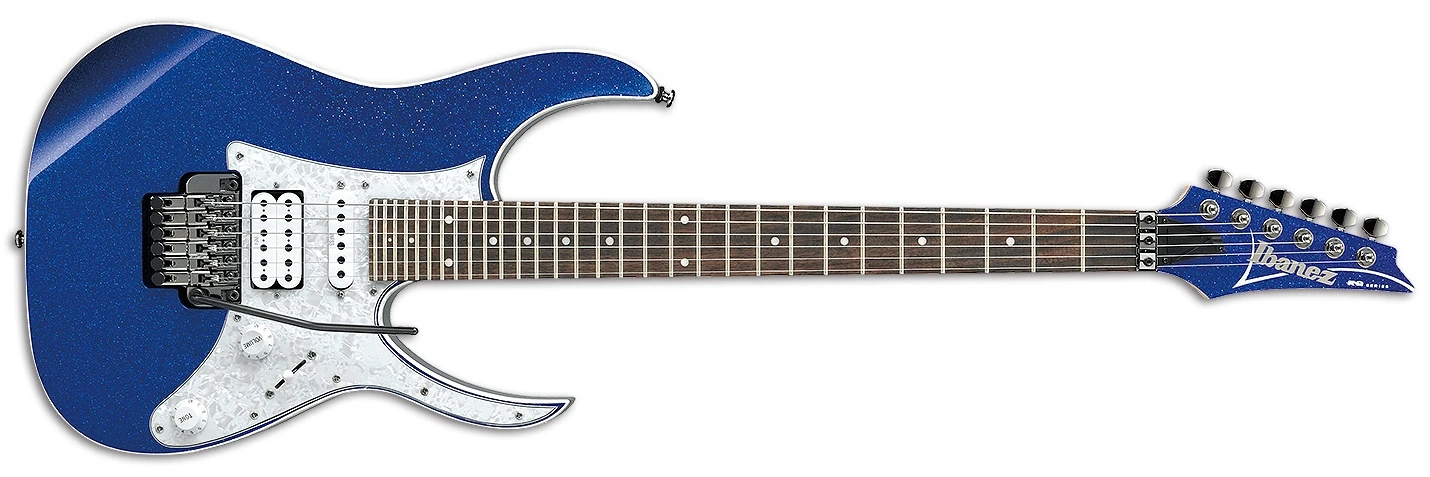

RG550XH BSP.jpg
Blue Sparkle

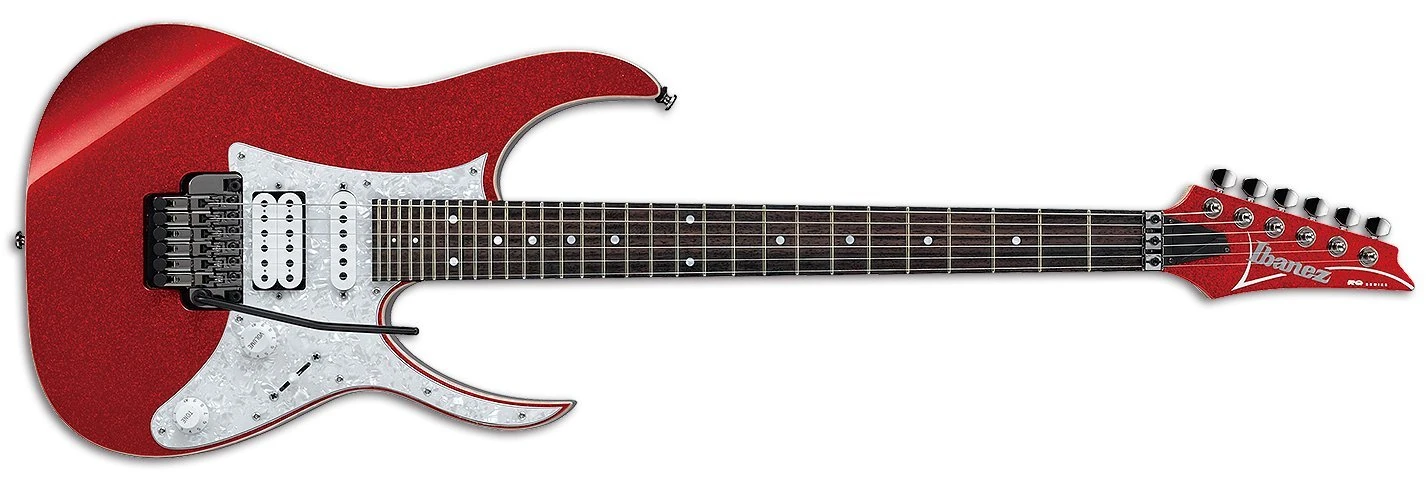

RG550XH RSP.jpg
Red Sparkle

Video

Ibanez RG550XH-BSP Blue Sparkle ( Demo Review )
Gavin Iedema plays "Save Me" with the Ibanez RG550XHRSP
