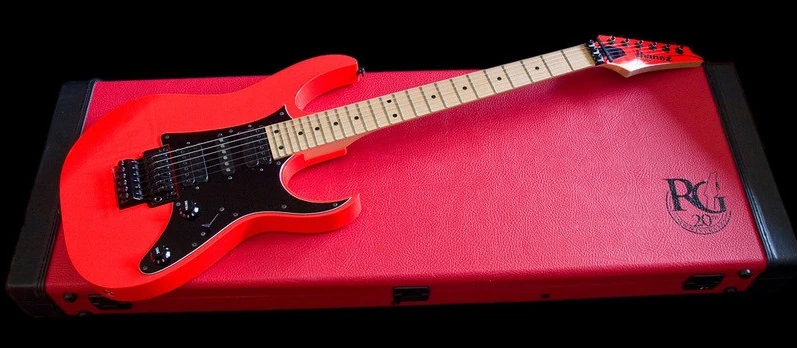

RG550MXX RF.jpg
RG550MXX Road Flare Red (more images) Red copyright sprite.png

The RG550MXX is an RG series solid body electric guitar model introduced by Ibanez in 2007. It was a reissue of the original RG550 in honor of the 20th anniversary of the model's debut.

The RG550MXX features a basswood body bolted to a maple and walnut neck with a 24-fret maple fingerboard with black dot position markers. Components include Ibanez pickups mounted in a black pickguard with a pair of V1/ V2 humbuckers flanking an S1 single-coil, an Edge double locking tremolo bridge and Gotoh tuning machines.

The reissue has a few features which were not typical of 2007-era models: the Edge tremolo (which had been retired in favor of the Edge Pro), the original tilt neck joint. The main difference between the reissue and the original is the neck: it has the original Wizard profile and instead of a one piece maple neck, the reissue has a five piece laminated maple and walnut neck more common on modern Ibanez guitars. The neck also is reinforced with KTS titanium rods.

There was also an RG550 reissue available with a rosewood fingerboard, the RG550RXX. Each of the 20th anniversary RGs came with a color matched, 20th anniversary case, and special strap and picks.

Specifications

Specifications for RG550MXX
Model name: RG550MXX
Year(s) produced: 2007
Sold in: Worldwide
Made in: Japan
Finish(es): Desert Sun Yellow (DY) / Road Flare Red (RF)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt Joint
Bridge:
Edge tremolo
Pickguard:
Black
Knob style:
Plastic top hat
Hardware color:
Black
Neck
Neck type:
Original 1987 Wizard shape
Neck material:
5-piece maple/ walnut w/ KTS titanium rods
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez V2 (H)
Middle pickup:
Ibanez S1 (S)
Neck pickup:
Ibanez V1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009–.042

Images

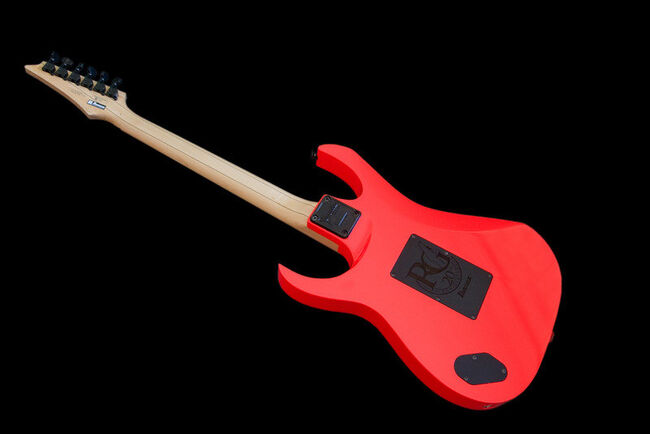

RG550MXX rear.jpg
Ibanez RG550MXX Road Flare Red ( Rear ) Red copyright sprite.png

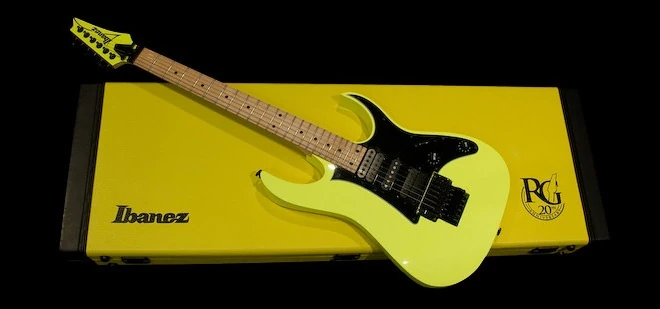

RG550MXX DY.jpg
Ibanez RG550MXX Desert Sun Yellow Red copyright sprite.png
Ibanez RG550MXX-DY ( Desert Sun Yellow )

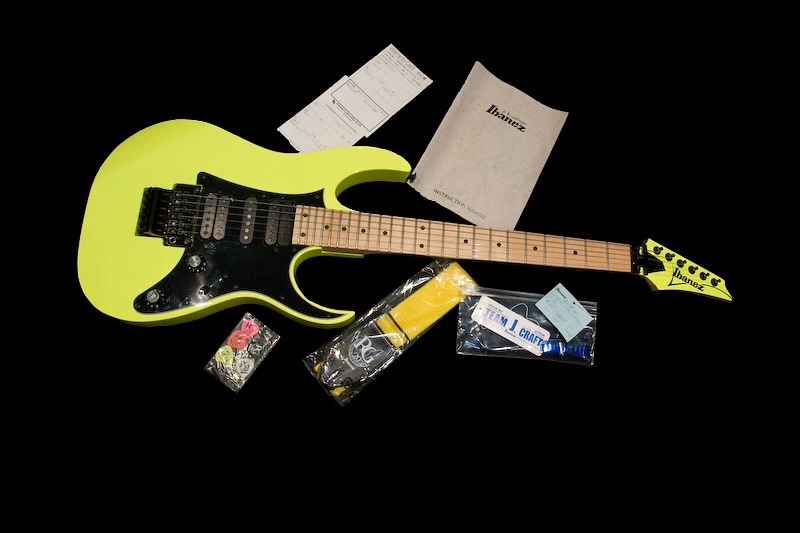

RG550MXX DY set.jpg
Full set

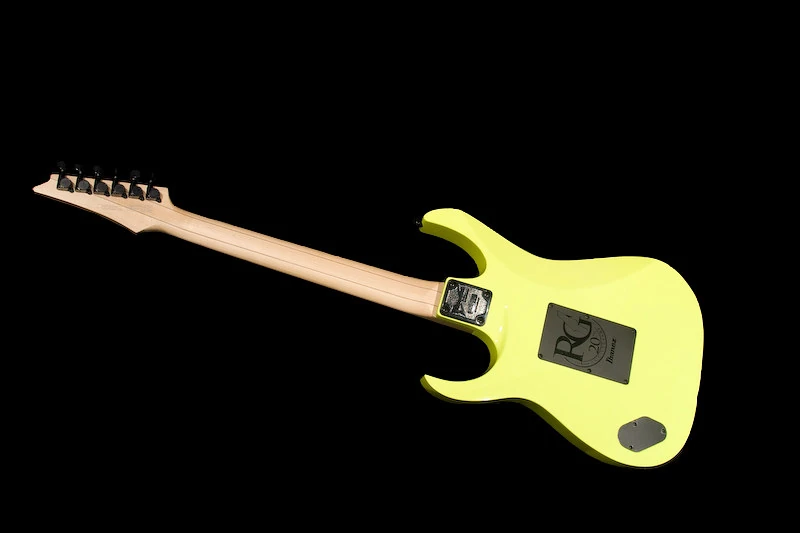

RG550MXX DY back.jpg
Rear of body
Additional details
HSH 5-way both-splits.png
Pickup switching diagram
Controls VT5.png
Control layout
