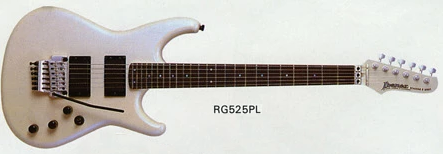

RG525 Pearl (more images) Red copyright sprite.png

The RG525 is a Roadstar II series solid body electric guitar model introduced by Ibanez in 1986. The Roadstar II series would eventually become known as the RG series.

The RG525 has the rounded-edge body style and swoopy, rounded headstock of the older Roadstar II style.

The RG525 features a basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with dot inlays. Components include dual Ibanez IBZ humbucking pickups with individual volume controls and Duo-Sound coil-tap functionality and an Edge double locking tremolo bridge with a locking nut.

The RG530 is a similar model with a flame maple top.

The RG525 was discontinued after just one year in production.

Specifications

Specifications for RG525
Model name: RG525
Year(s) produced: 1986
Sold in: USA
Made in: Japan
Finish(es): Black (BK) / Gun Metallic (GM) / Pearl (PL) / Silver (SV)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Bolt-on traditional square heel
Bridge:
Edge tremolo
Pickguard:
Black
Hardware color:
White gold
Black model: Black
Neck
Neck type:
Roadstar DX
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez IBZ (H)
Neck pickup:
Ibanez IBZ (H)
Controls:
2 volume / 1 tone / 3-way toggle / two Duo Sound switches

Images

Other available finishes
Black
RG525 GM.jpg
Gun Metallic[1]
Silver
Wimage.jpg An image for this article is missing!
An image of the RG525 Pearl (PL) and Silver (SV) is wanted for this article. You can help by finding, uploading and adding it!
User submitted images
IMG 20181230 115814.jpg

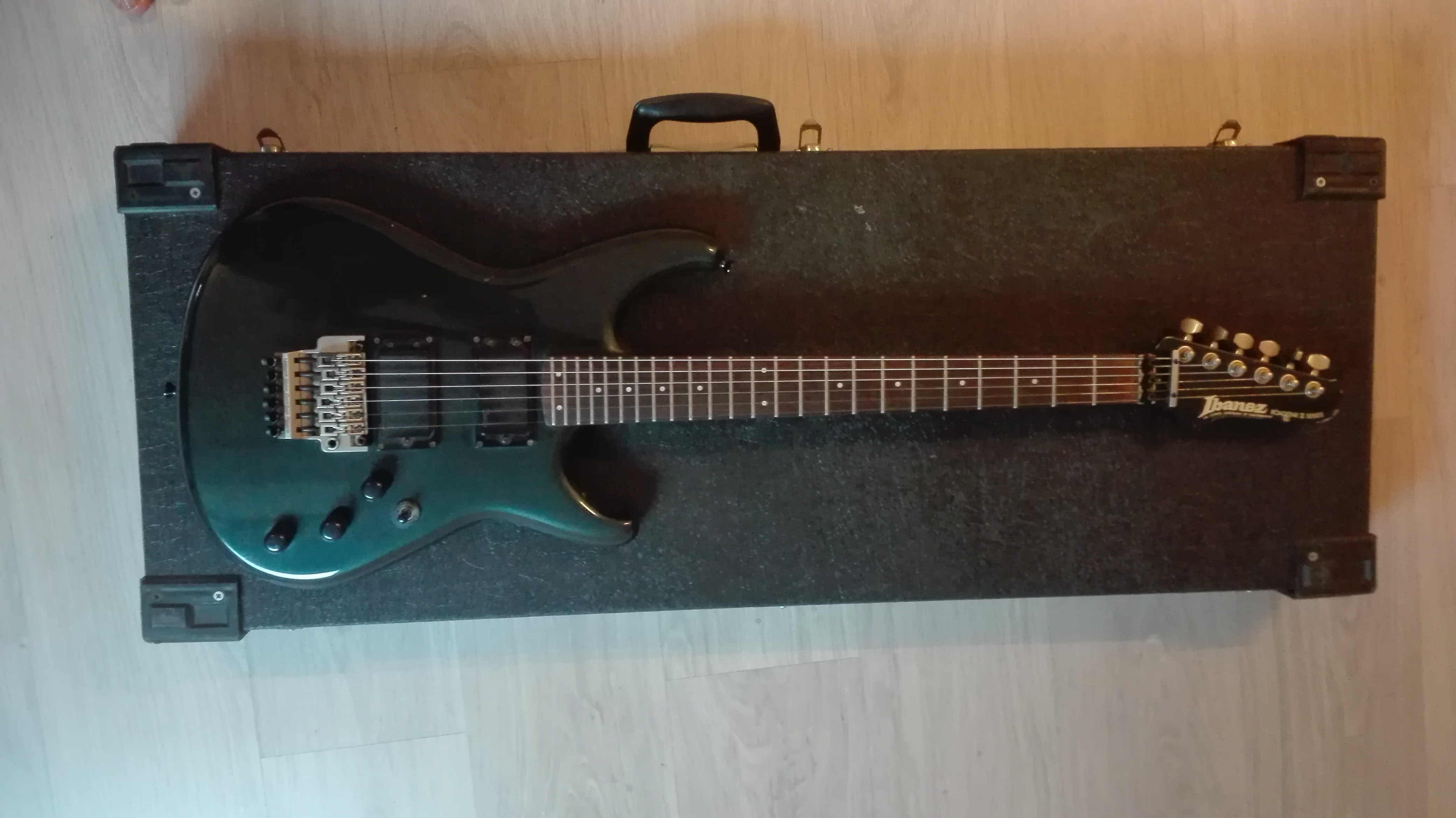

Body
IMG 20181230 115741.jpg

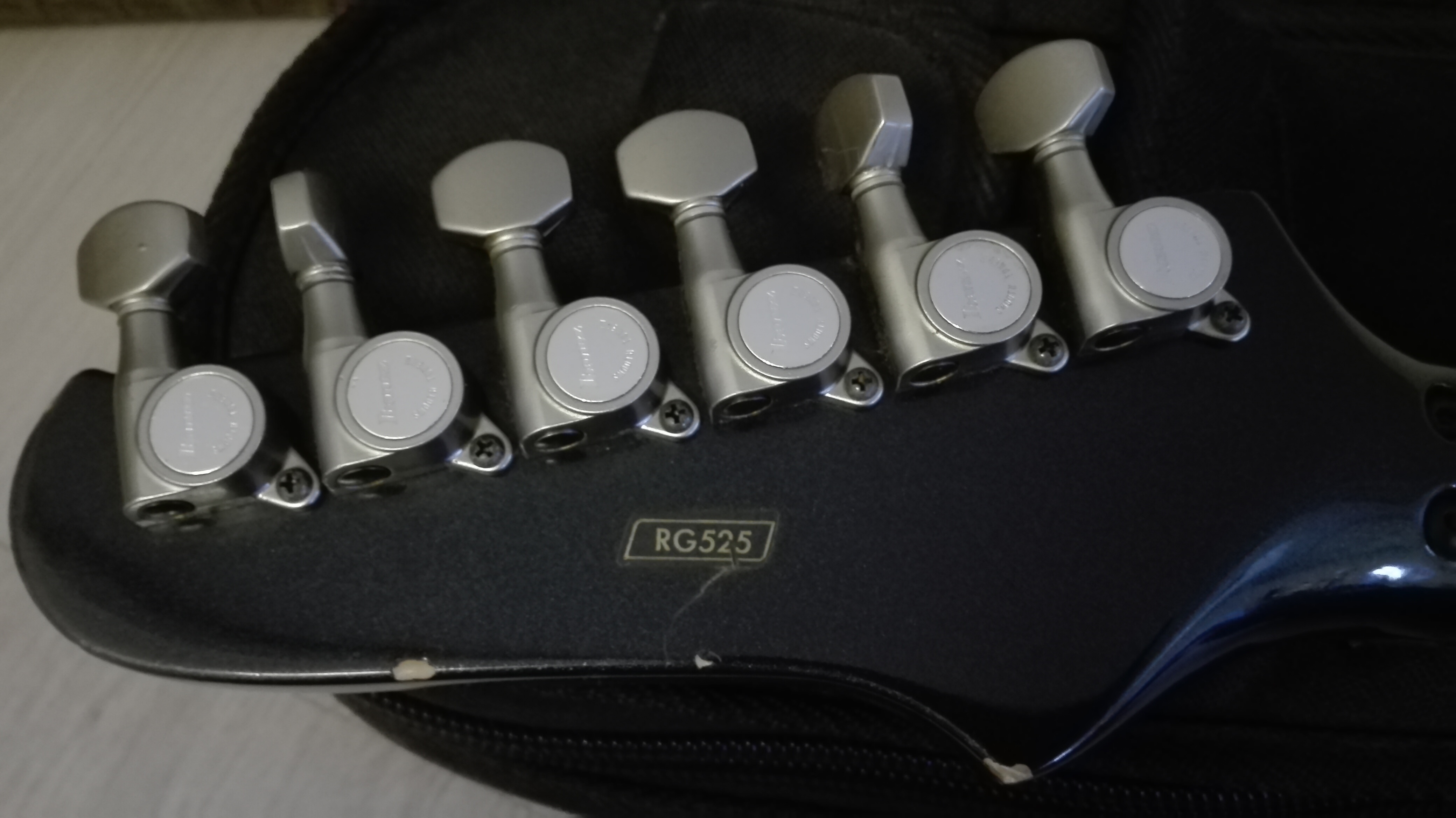

Headstock (front)
IMG 20181230 115931.jpg
Headstock (rear)
IMG 20181230 115957.jpg
Neck joint plate
IMG 20181230 120220.jpg
Rear
IMG 20181230 120256.jpg
Front
