1995 RG507 BK
RG507 Black (more images) Red copyright sprite

The RG507 is an RG series solid body electric guitar model introduced by Ibanez in late 1995. It was made in Japan by FujiGen.

The RG507 features a basswood body bolted to a maple neck with a black headstock and a 24-fret rosewood fingerboard with dot position markers. Components include an Edge double locking tremolo bridge with a locking nut, Ibanez pickups with a pair of humbuckers mounted in pickup rings flanking a single-coil and Gotoh tuning machines.

The RG505 is a similar model with a pickguard. The RG570 is a similar model which is sold in other markets. The RG517 is a virtually identical model with special flaked finishes which was offered in 1996 & 1997. The RG502BE is a related model with a birdseye maple top and without the middle pickup.

The RG507 was discontinued after 1999.

Specifications[]

Related content: RG series | Models-icon
Specifications for RG507
Model name: RG507
Year(s) offered: 1995–1999
Sold in: Europe
Made in: Japan
Finish(es): Black Gold (BD) 1997–1998 / Black (BK) / Gray Nickel (GN) 1999 / Gold Rush (GR) 1998 / Jewel Blue (JB) 1995–1997 / Ruby Red (RR) 1996
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge tremolo (10.8mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Wizard II
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez V8 (H)
Middle pickup:
Ibanez S1 (S)
Neck pickup:
Ibanez V7 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes & details

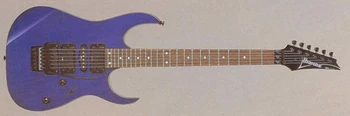

1995 RG507 JB
Jewel Blue

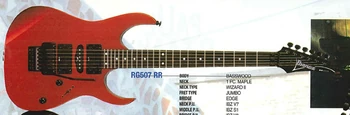

1996 RG507 RR
Ruby Red
1997 RG507 BD
Black Gold

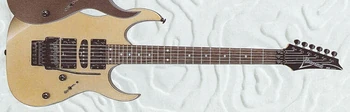

1998 RG507 GR
Gold Rush

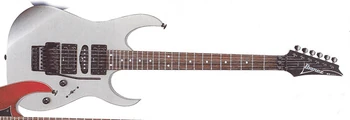

1999 RG507 GN
Gray Nickel
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
Wiring-diagram 1994 RG-HSH-RG550
Wiring diagram 1995–1996[1]

Sources[]

  1. RG507 wiring diagram, Ibanez, archived April 2003
