For other RG470L models, see RG470L (disambiguation).
Ibanez RG470L

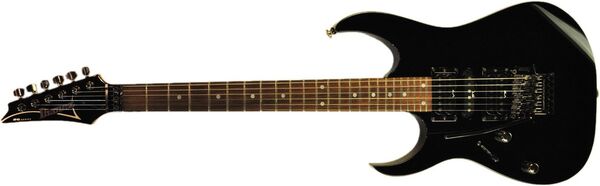

RG470L Black (more images) Red copyright sprite

The RG470L is an RG series solid body electric guitar model introduced by Ibanez in 1994. It replaced the Japanese made RG470L from the previous year.

This iteration of the RG470L features a basswood body bolted to a maple Wizard II neck with a 24-fret rosewood fingerboard with dot position markers. Components include Ibanez Infinity pickups and a Lo TRS II double locking tremolo bridge with a locking nut.

Changes from the previous year's Japanese-made model include the new All access neck joint (rather than a square heel joint with a metal plate), and different neck, bridge and pickups.

The RG470 is a right-handed version.

This model was discontinued after 1999 with production returning to Japan for the 2000 model.

Specifications

'
Model name: RG470L (1994–1999)
Year(s) produced: 1994–1999
Sold in: Europe / USA
Made in: Korea
Finish(es): BK (Black) / JB (Jewel Blue) 1994, USA only
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Lo TRS II
Hardware color:
Black
Neck
Neck type:
Wizard II
Neck material:
1-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / jumbo
Nut:
Locking
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez INF2 (H)
Middle pickup:
Ibanez INFS1 (S)
Neck pickup:
Ibanez INF1 (H)
Controls:
Master volume / master tone / 5-way lever
RG470L JB
RG470L Jewel Blue Red copyright sprite
Wimage An image for this article is missing!
An image of the RG470L Jewel Blue (JB) is wanted for this article. You can help by finding, uploading and adding it!
