For other models with a similar name, see RG450DX (disambiguation).
For other models in the RG450 lineage, see RG450 (disambiguation).
RG450DXB WH
RG450DXB White Red copyright sprite

The RG450DXB is an RG series solid body electric guitar model introduced by Ibanez for 2015. It replaced another model with the same name, but with significant changes. It was produced in Indonesia.

The RG450DXB features a mahogany body bolted to a one-piece maple Wizard III neck with a 24-fret rosewood fingerboard with binding and sharktooth position markers. Components include Ibanez Quantum pickups, a standard double locking tremolo bridge and a locking nut.

For 2018 the rosewood fretboard was replaced with jatoba. For 2019 the mahogany body was replaced with meranti.

The RG450DXBL is a left-handed version. The RG450DX is a similar model with cosmo black hardware and a black finish. The RG450EXB is a very similar spot model with different finishes and a black pickguard which was introduced in 2019 as an exclusive for Guitar Center and Musician's Friend.

This version of the RG450DXB was replaced for 2024 with a new model with the same name which has an Edge Zero II bridge.

Specifications[]

Related content: RG series | Models-icon
Specifications for RG450DXB (2015–2023)
Model name: RG450DXB (2015–2023)
Year(s) offered: 2015–2023
Sold in: USA
Made in: Indonesia
Finish(es): White (WH)
Body
Body type:
Solid body
Body material:
2015–2018: Mahogany
2019–2023: Meranti
Neck joint:
AANJ
Bridge:
Standard DL tremolo (10.5mm string spacing)
Pickguard:
White pearloid
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Wizard III
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2015–2017: Rosewood w/ binding
2018–2023: Jatoba
Fingerboard inlays:
Sharktooth
Frets:
24 / jumbo nickel silver
Nut:
Locking barless (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez Quantum bridge (H) passive/ ceramic
Middle pickup:
Ibanez Quantum Single (S) passive/ alnico
Neck pickup:
Ibanez Quantum neck (H) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" mono (side mounted w/ oval plate)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)

Images[]

Additional details

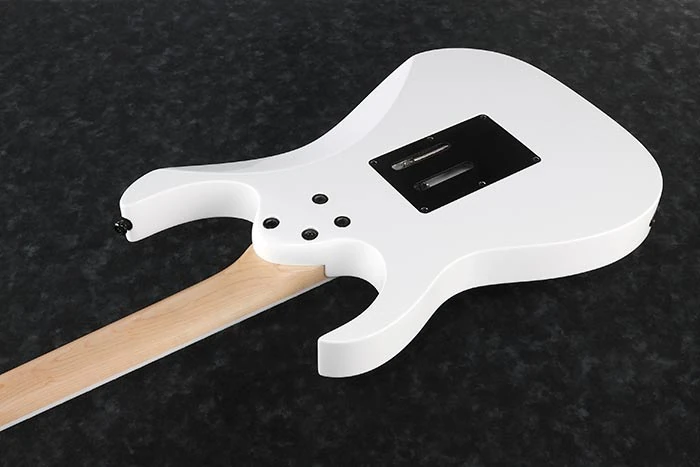

2021 RG450DXB WH 1P 04 back
Rear of body
HSH 5-way both-splits
Pickup switching
Controls VT5
Controls layout

Sources[]

  • 2015 USA catalog (p. 19)
  • RG450DXB product page, Ibanez USA, archived June 2015
  • RG450DXB product page, Ibanez USA, archived November 2017
  • RG450DXB product page, Ibanez USA, archived January 2018
  • RG450DXB product page, Ibanez USA, archived January 2019
  • RG450DXB product page, Ibanez USA, archived January 2020
  • RG450DXB product page, Ibanez USA, archived January 2021
  • RG450DXB product page, Ibanez USA, archived May 2022
  • RG450DXB product page, Ibanez USA, archived January 2023
