For the later model of the same name, see RG450DXBL (2015–2019).
For other models in the RG450DX lineage, see RG450DX (disambiguation).

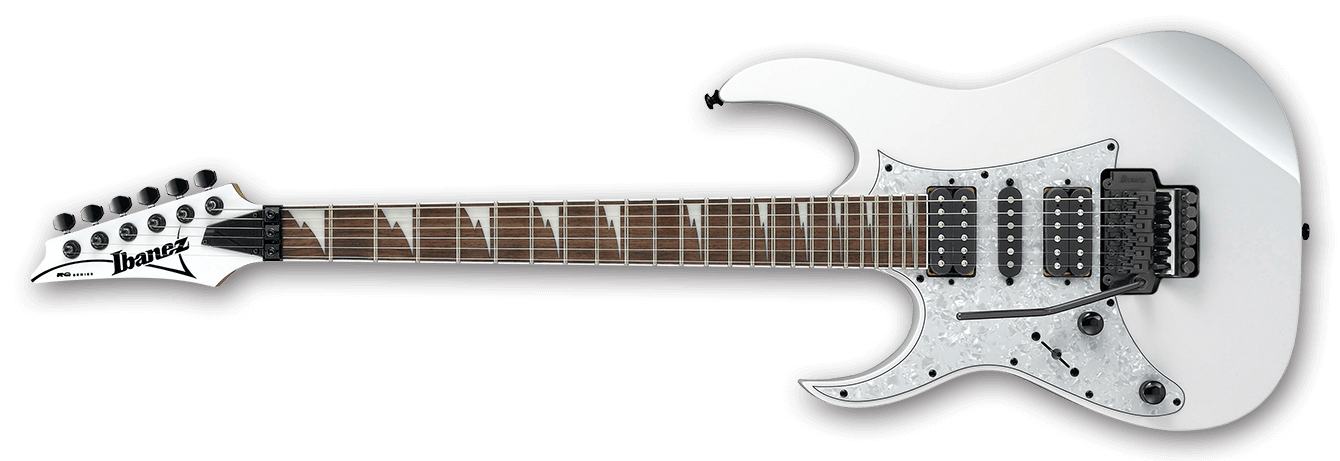

RG450DXBL WH
RG450DXBL White Red copyright sprite

The RG450DXBL is a left-handed RG series solid body electric guitar model introduced by Ibanez in 2013.

The RG450DXBL features a basswood body bolted to a three-piece maple Wizard III neck with a 24-fret rosewood fingerboard with sharktooth position markers. Components include Ibanez Infinity pickups in an HSH configuration, an Edge Zero II double locking tremolo bridge and a locking nut.

From 2013, the Edge Zero II no longer includes the ZPS3 zero-point sytem anymore on non-Prestige models. It is replaced by a conventional 3 springs/claw setup.

The RG450DXB is a right-handed version.

This RG450DXBL was replaced for 2015 with another model with the same name but which has several significant changes.

Specifications[]

Related content: Left-handed guitar models | RG series | Models-icon
Specifications for RG450DXBL
Model name: RG450DXBL
Year(s) offered: 2013–2014
Sold in: Japan / USA
Made in: Indonesia
Finish(es): White (WH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge Zero II tremolo (10.8mm string spacing)
Pickguard:
White pearloid
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Wizard III
Neck material:
3-piece maple
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Sharktooth
Frets:
24 / jumbo nickel silver
Nut:
Barless Top-Lok
Machine heads:
Ibanez die-cast
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez INF4 (H)
Middle pickup:
Ibanez INFS3 (S)
Neck pickup:
Ibanez INF3 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" mono (side mounted w/ metal plate)

Images[]

Additional details
HSH 5-way both-splits
Pickup switching

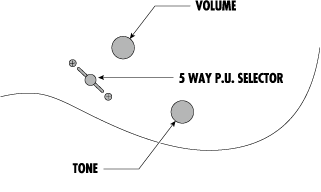

Controls VT5 lefty
Controls layout
