RG420HPAH

RG420HPAH Blue Wave Black

The RG420HPAH is an RG series solid body electric guitar model introduced by Ibanez for 2020. It was produced in Indonesia.

The RG420HPAH features an ash top with white binding on a nyatoh body bolted to a roasted maple Wizard III neck with a 24-fret jatoba fingerboard with white dot position markers and luminescent side dots. Components include a pair of direct-mounted DiMarzio Fusion Edge humbucking pickups with gold covers, a double locking tremolo bridge and Ibanez tuning machines.

The RG421HPAH is a similar model with a fixed bridge. The RG420HPFM is a related model with a flamed maple top and different pickups.

The RG420HPAH was discontinued after 2021.

Specifications

Related content: RG series |

Specifications for RG420HPAH

Model name: RG420HPAH Year(s) offered: 2020–2021 Sold in: USA Made in: Indonesia Finish(es): Blue Wave Black (BWB)
Body Body type: Solid body Body material: Nyatoh w/ ash top & white binding Neck joint: AANJ Bridge: Double locking tremolo (10.5mm string spacing) Knob style: Knurled metal dome Hardware color: Gold	Neck Neck type: Wizard III Neck material: One-piece roasted maple Scale length: 648mm/ 25½" Fingerboard material: Jatoba Fingerboard inlays: White dot luminescent side dots Frets: 24 / jumbo nickel silver Nut: Locking barless (43mm) Machine heads: Ibanez die-cast	Electronics/ Strings Pickup configuration: HH Bridge pickup: DiMarzio Fusion Edge bridge (H) passive/ ceramic Neck pickup: DiMarzio Fusion Edge neck (H) passive/ ceramic Controls: Master volume / master tone / 3-way lever pickup selector / coil-split toggle Output jack: ¼" stereo barrel (side mounted) String gauge (factory): .009/.011/.016/.024/.032/.042 (D'Addario EXL120) Factory tuning: 1E,2B,3G,4D,5A,6E (E Std.)

About this table

Images

Additional details

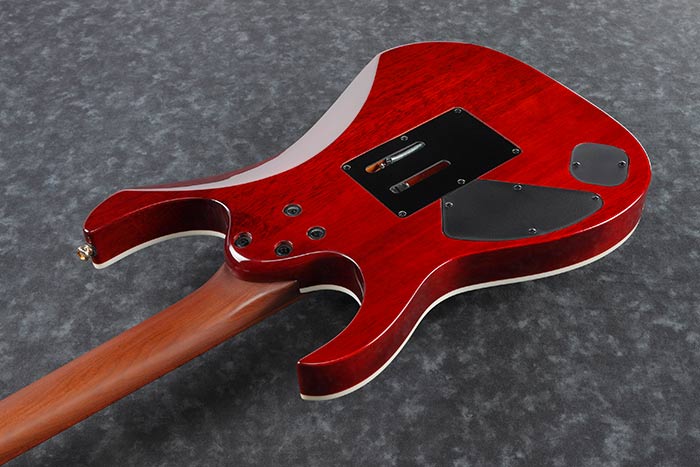

Rear of body

Pickup switching

Controls layout

Sources

• RG420HPAH product page, Ibanez USA, archived January 2020
• RG420HPAH product page, Ibanez USA, archived January 2021
