RG3770FZ TB

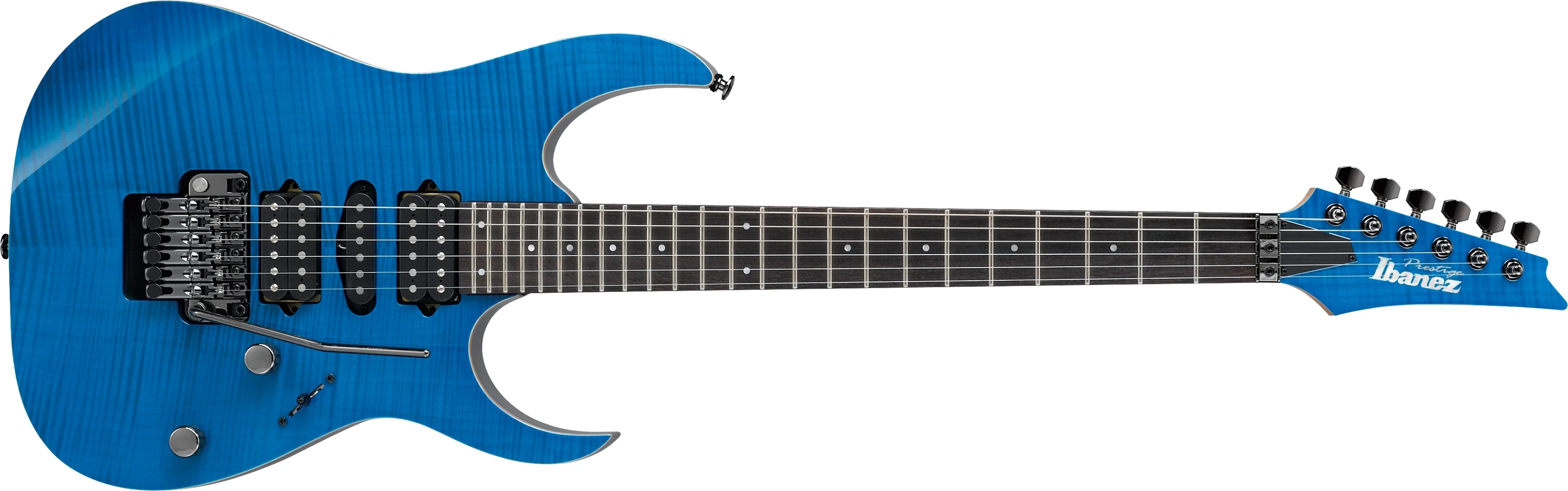

RG3770FZ Transparent Blue (more images) Red copyright sprite

The RG3770FZ is an RG series solid body electric guitar model introduced by Ibanez in 2014. It was made in Japan by FujiGen Prestige line.

The RG3770FZ features a mahogany body with flamed maple top bolted to a maple and walnut Super Wizard HP neck with a 24-fret rosewood fingerboard with mother of pearl dot position markers. Components include DiMarzio pickups with a pair of humbuckers flanking a single-coil and an Edge Zero double locking tremolo bridge with a removable ZPS3 tuning stabilizer.

The earlier RG3770Z was similar but lacked the exotic flamed maple top. The RG3750FZ is a similar model with a pickguard.

The RG3770FZ was discontinued after 2017.

Specifications

Specifications for RG3770FZ
Model name: RG3770FZ
Year(s) produced: 2014–2017
Sold in: Asia / China / Europe / North America (except USA), South America & Oceania
Made in: Japan
Finish(es): Black Haze (BH) 2016–2017 / Transparent Blue (TB) / Transparent Red (TR) 2014–2016
Body
Body type:
Solid body
Body material:
2014–2017: Mahogany w/ flamed maple top
Neck joint:
AANJ
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer
Hardware color:
Cosmo black
Neck
Neck type:
Super Wizard HP Prestige
Neck material:
5-piece maple/ walnut w/ KTS titanium rods
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Mother of pearl dot
Frets:
24 / jumbo (Prestige edge treatment)
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever
String gauge (factory):
.009–.042

Images

Additional finishes/ details

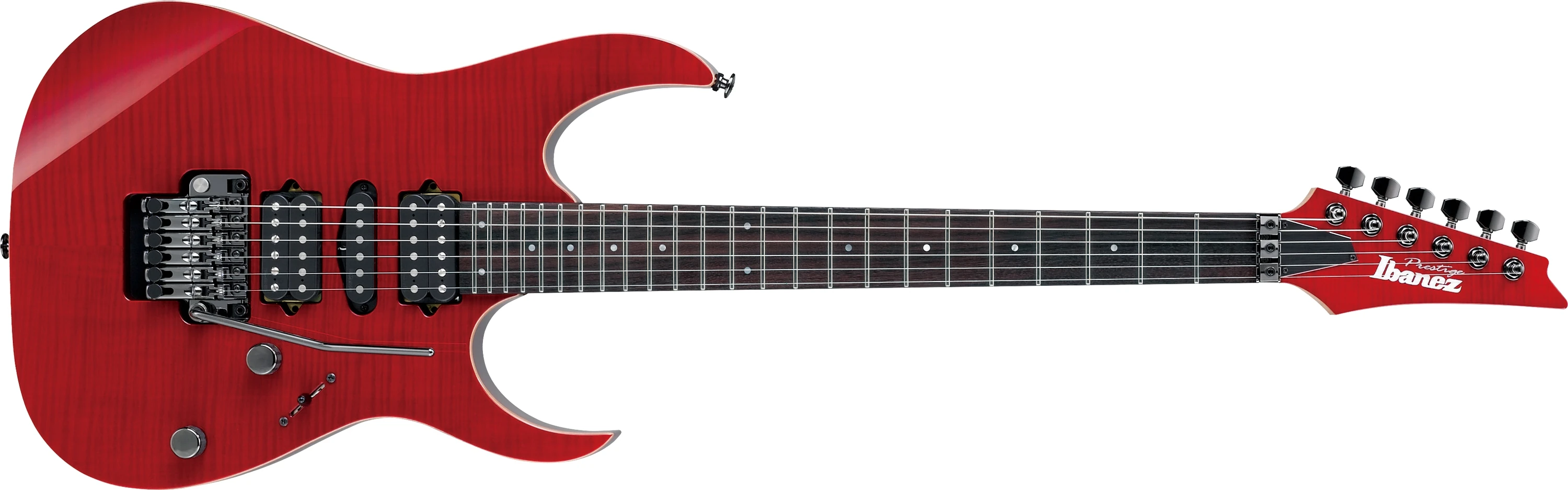

RG3770FZ TR
Transparent Red

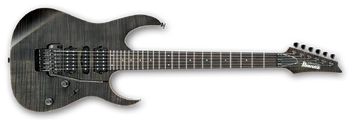

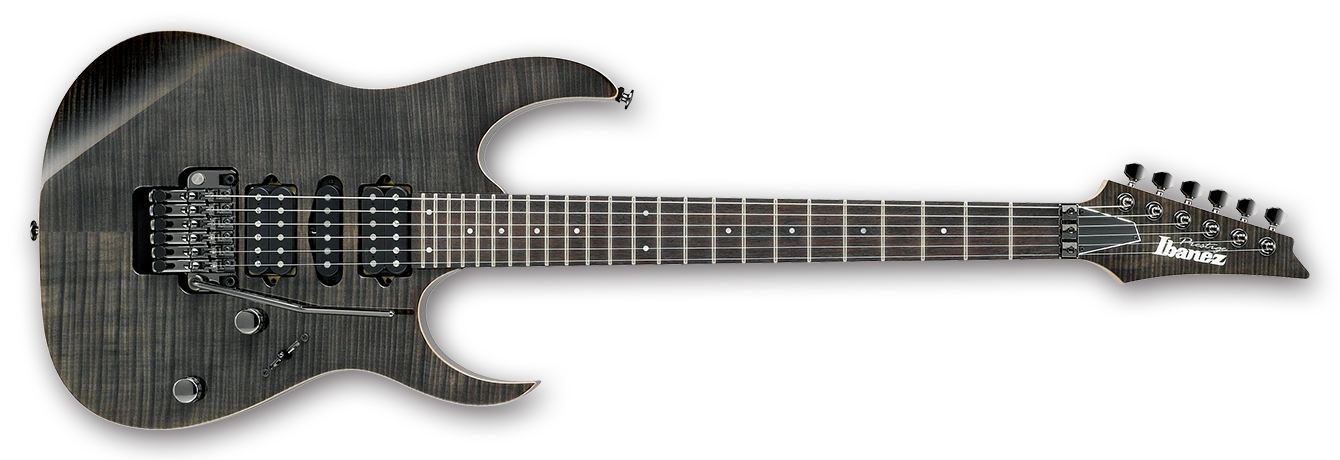

RG3770FZ BH
Black Haze
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
