For other RG370 models, see RG370 (disambiguation).

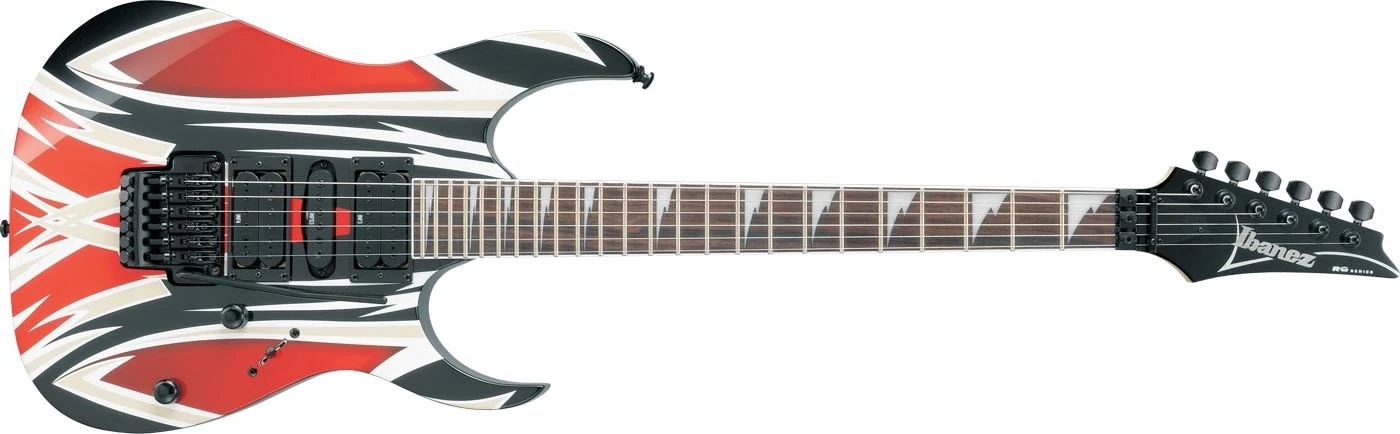

RG370DXGP2 BK
RG370DXGP2 BK.jpg Red copyright sprite

The RG370DXGP2 is an RG series solid body electric guitar model introduced by Ibanez in 2007. It was produced in Indonesia.

The most remarkable aspect of the RG370DXGP2 is the graphic pattern finish. It features a basswood body bolted to a maple Wizard II neck with a 24-fret rosewood fingerboard with white binding and sharktooth position markers. Components include an Edge III double locking tremolo bridge and Ibanez Infinity pickups with a pair of humbuckers mounted in pickup rings flanking a single-coil.

Other models in the Graphic Print RG series are the GP1, GP3 and GP4. The RG370DX is a similar model without the graphic print finish.

Specifications

Specifications for RG370DXGP2
Year(s) produced: 2007–2008
Sold in: USA
Made in: Indonesia
Finish(es): Black with Graphic Print finish
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge III
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Wizard II
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Sharktooth
Frets:
24 / jumbo
Nut:
Locking (with string retainer bar)
Machine heads:
Ibanez die-cast
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez Infinity 4 (H)
Middle pickup:
Ibanez Infinity Single 3 (S)
Neck pickup:
Ibanez Infinity 3 (H)
Controls:
Master volume / master tone / 5-way lever

Images

Additional details
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
