RG350DXZ WH

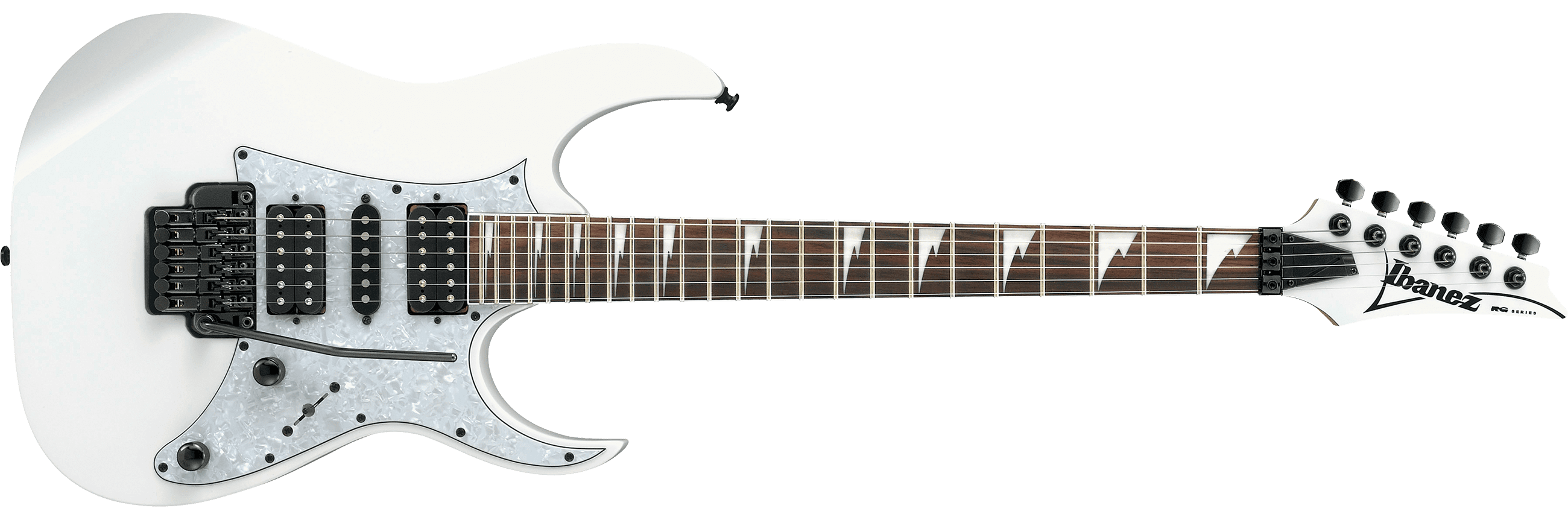

RG350DXZ White (more images) Red copyright sprite

The RG350DXZ is an RG series solid body electric guitar model introduced by Ibanez for 2011. It replaced the RG350DX. In the USA, it was still known as the RG350DX, since the Z suffix is ignored for some models in promotional material. It was produced in Indonesia.

The RG350DXZ features a basswood body bolted to a maple Wizard III neck with a 24-fret bound rosewood fingerboard with sharktooth position markers. Components include an Edge Zero II double locking tremolo bridge with a removable tuning stabilizer and Ibanez pickups with two humbuckers flanking a single-coil.

A major update in 2015 introduced a mahogany body, a one-piece neck, new pickups and new finishes. For 2018 the rosewood fretboard was replaced with jatoba. For 2019 the mahogany body was replaced with meranti.

The RG350DXZL is a left-handed version. The RG350ZB is a similar model with white dot inlays and a black pickguard. The RG351DX is a related model with a fixed bridge. The RGV250 is a related spot model with a non-locking tremolo.

The RG350DXZ was discontinued after 2023. It was essentially replaced for 2024 by the similar RG450DXB.

Specifications[]

Related content: RG series | Models-icon
Specifications for RG350DXZ / RG350DX (USA only)
Model name: RG350DXZ / RG350DX (USA only)
Year(s) offered: 2011–2023
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA 2011–2012
Made in: Indonesia
Finish(es): Black (BK) 2015–2017 / Deep Violet Metallic (DVM) 2015 / White (WH)
Body
Body type:
Solid body
Body material:
2011–2014: Basswood
2015–2018: Mahogany
2019–2023: Meranti
Neck joint:
AANJ
Bridge:
Edge Zero II tremolo w/ ZPS3Fe stabilizer (10.8mm string spacing)
Pickguard:
White pearloid
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Wizard III
Neck material:
2011–2014: 3-piece maple
2015–2023: 1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2011–2017: Rosewood w/ binding
2018–2023: Jatoba w/ binding
Fingerboard inlays:
Sharktooth
Frets:
24 nickel silver
Nut:
Locking (barless) (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
2011–2014: Ibanez INF4 (H)
2015–2023: Ibanez Quantum bridge (H) passive/ ceramic
Middle pickup:
2011–2014: Ibanez INFS3 (S)
2015–2023: Ibanez Quantum middle (S) passive/ alnico
Neck pickup:
2011–2014: Ibanez INF3 (H)
2015–2023: Ibanez Quantum neck (H) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" mono (side mounted w/ oval plate)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other available finishes

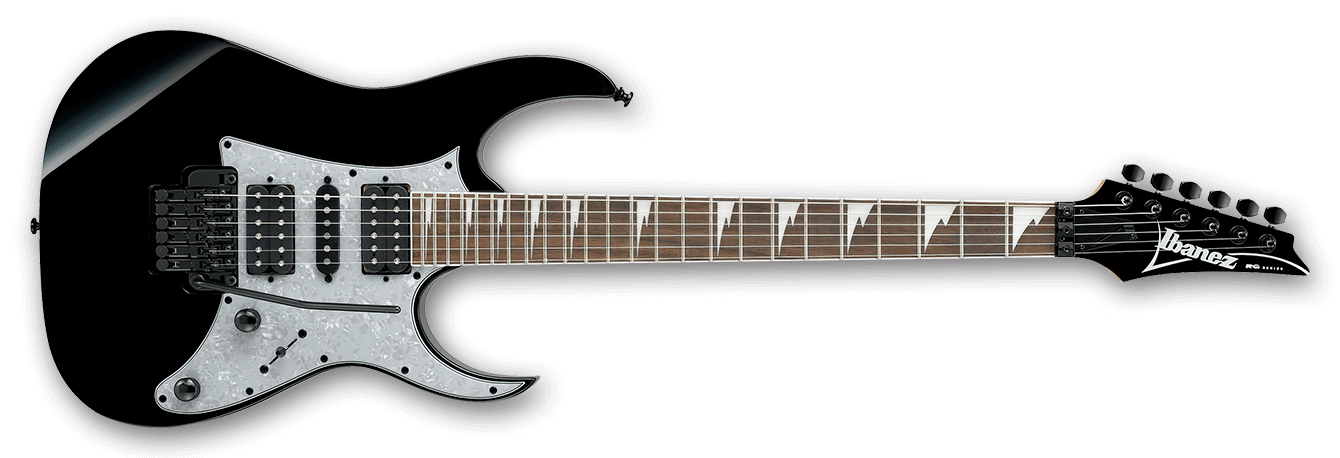

RG350DXZ BK
Black
RG350DXZ DVM
Deep Violet Metallic
Additional details

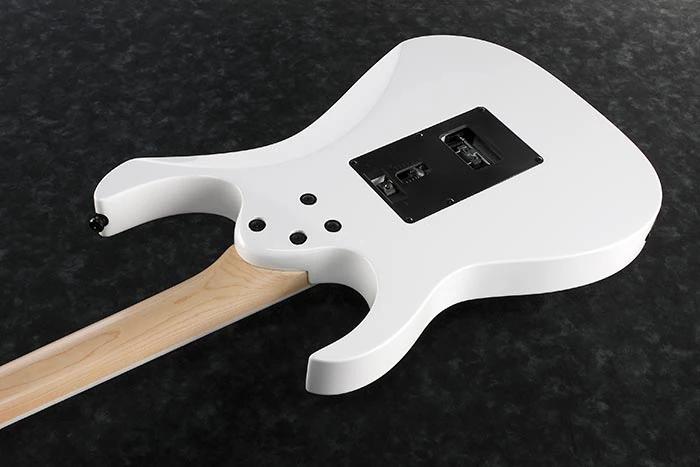

2021 RG350DXZ WH 1P 04 back
Rear of body
HSH 5-way both-splits
Pickup switching
Controls VT5
Controls layout

Video[]

Ibanez RG350DXZ ( Demo )
RG350DXZ AD
2011 Ibanez RG350DXZ AD. Red copyright sprite
