RG3270M DBK
RG3270M Deep Black (more images) Red copyright sprite

The RG3270M is an RG series solid body electric guitar model introduced by Ibanez in 2002. It was made in Japan as part of the upscale Prestige line.

The RG3270M features a flamed maple top on a mahogany body bolted to a maple Wizard neck with a 24-fret maple fingerboard with offset abalone dot inlays. Components include DiMarzio pickups with two PAF Pro humbuckers flanking a Blue Velvet single-coil, a Lo Pro Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines.

The Edge Pro tremolo replaced the Lo Pro Edge for 2003.

The RG3270 is a nearly identical model with a rosewood fretboard. The RG3271 is a similar model with a hard-tail bridge.

The RG3270M was available only in Japan, but the RG3120 and RG3120F are similar models which were offered worldwide. It was discontinued after 2004.

Specifications[]

Related content: Prestige series | RG series | Models-icon
Specifications for RG3270M
Model name: RG3270M
Year(s) offered: 2002–2004
Sold in: Japan
Made in: Japan
Finish(es): Deep Black (DBK) / Transparent Blue (TB)
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top w/ binding
Neck joint:
AANJ
Bridge:
2002: Lo-Pro Edge
2003–2004: Edge Pro tremolo
Knob style:
Tek Grip
Hardware color:
Cosmo black
Neck
Neck type:
Wizard
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Offset abalone dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio PAF Pro (H)
Middle pickup:
DiMarzio Blue Velvet (S)
Neck pickup:
DiMarzio PAF Pro (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

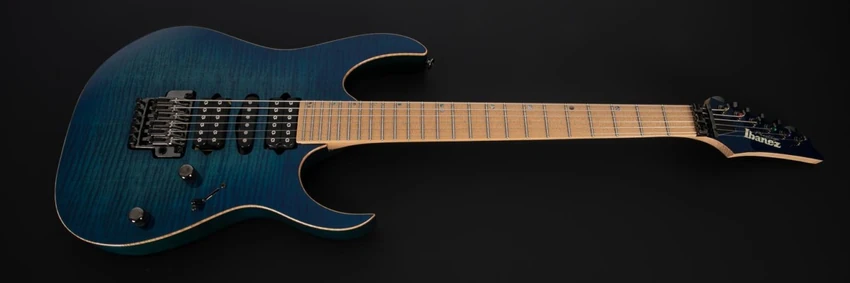

2003 RG3270M-TB
2003 Ibanez RG3270M-TB Transparent Blue Red copyright sprite
Additional details for RG3270M-TB

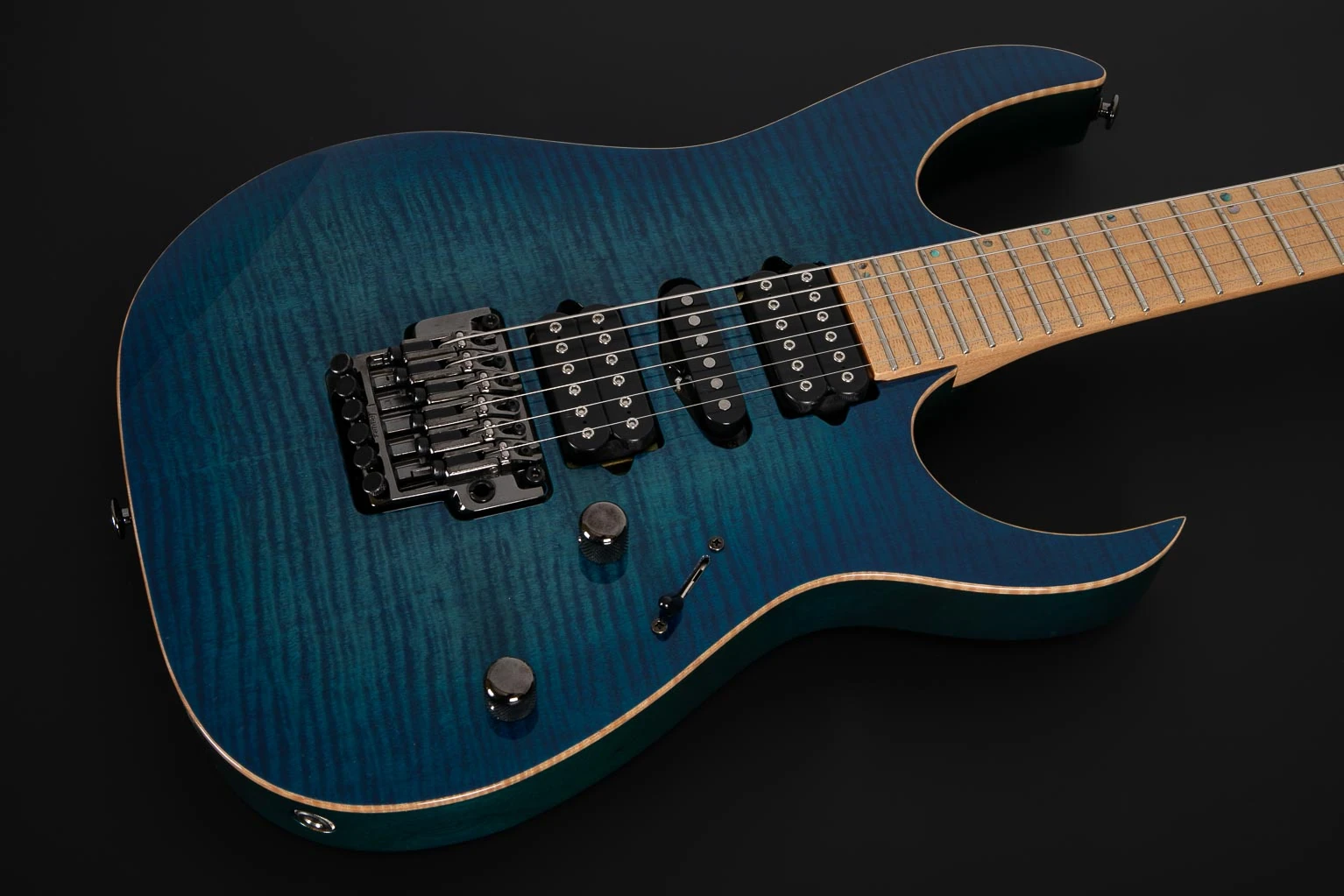

2003 RG3270M-TB front
Front of body

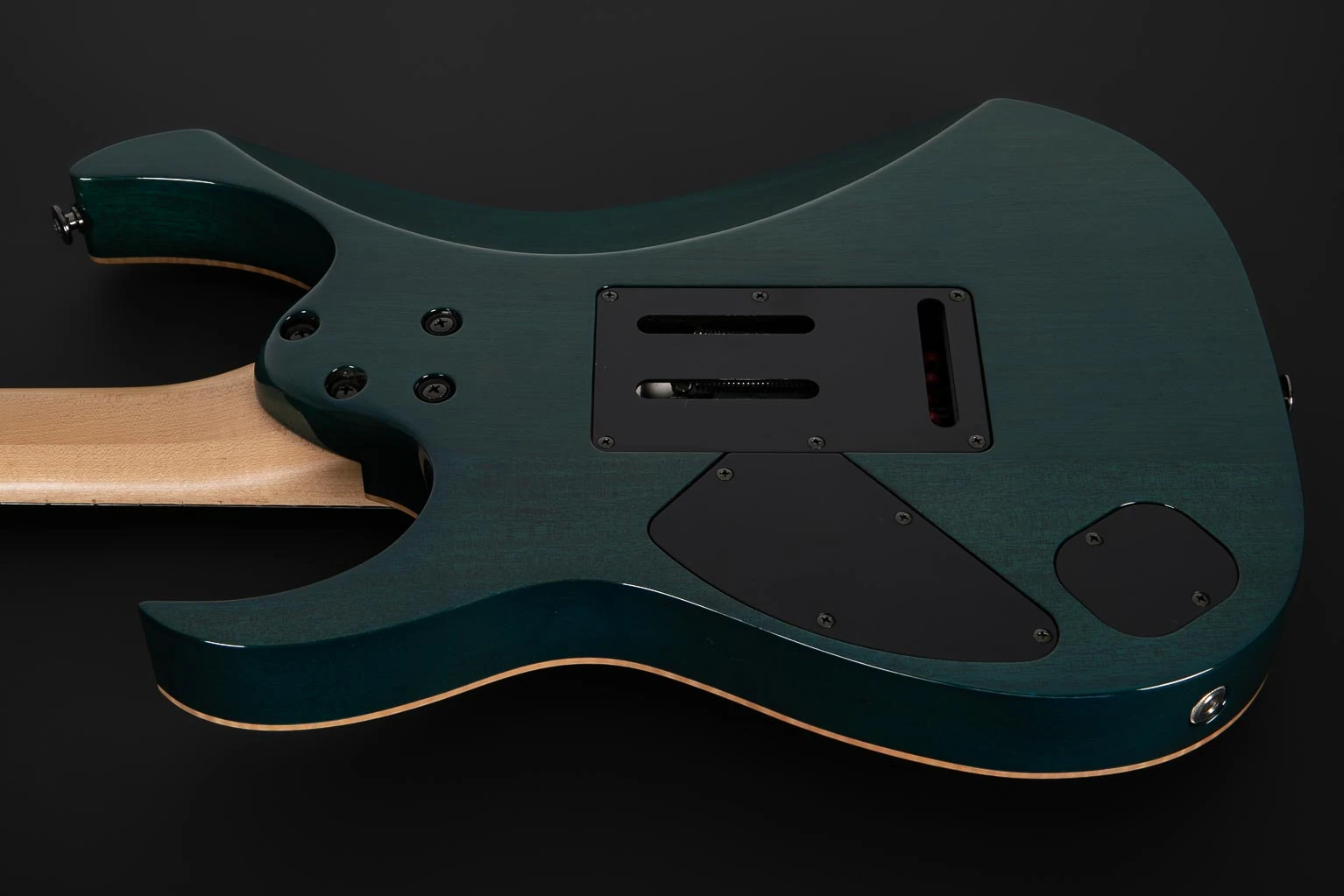

2003 RG3270M-rear
Rear of body

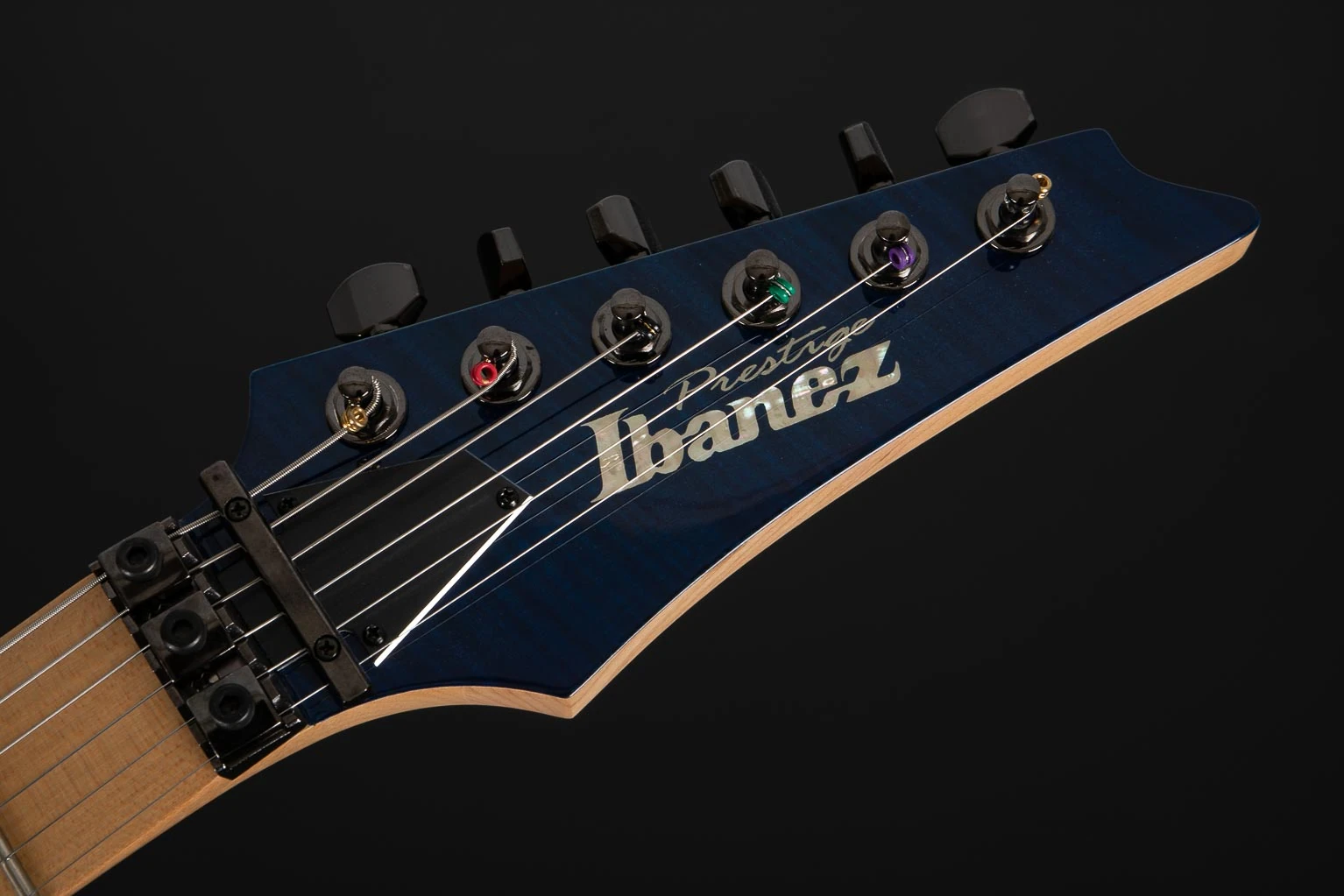

2003 RG3270M-headstock
Headstock

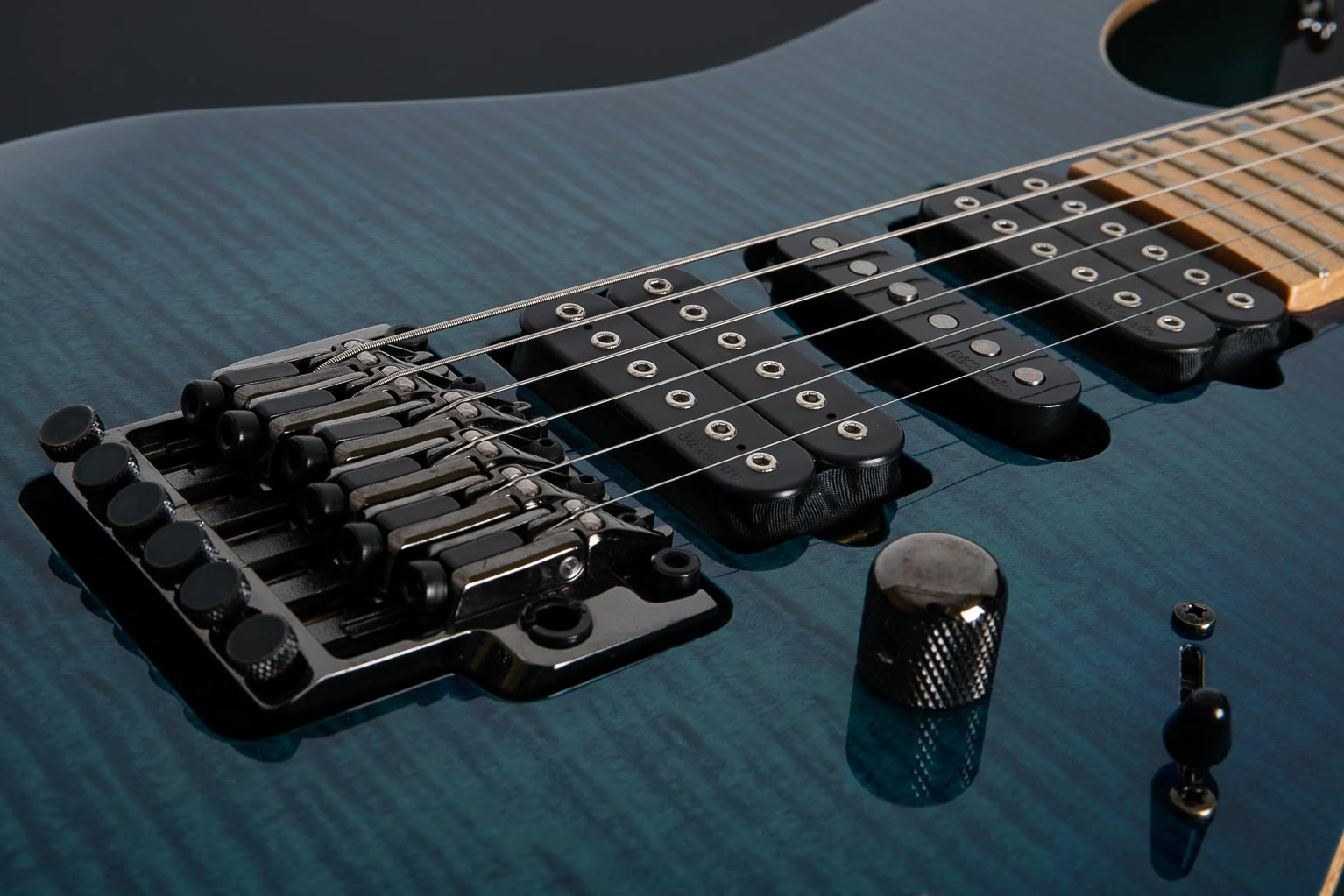

2003 RG3270M-pu
DiMarzio Pickups
