RG320FM AM

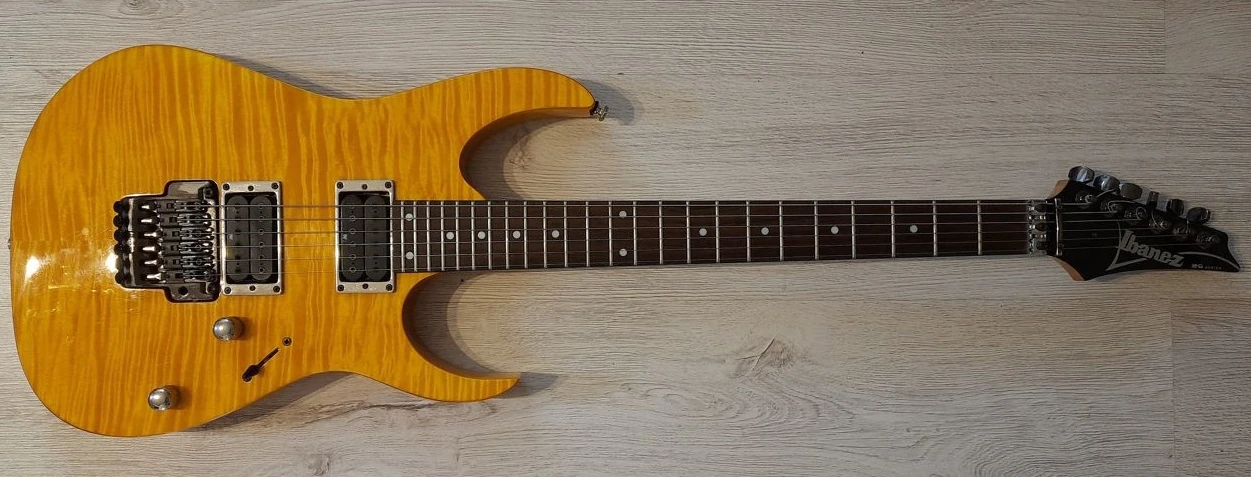

RG320FM Amber (more images) Red copyright sprite

The RG320FM is an RG series solid body electric guitar model introduced by Ibanez in 2003.

Features of the RG320FM include a basswood body with a flamed maple top bolted to a maple neck with a 24-fret rosewood fingerboard with dot position markings. Components include dual Ibanez humbucking pickups and a double locking tremolo bridge.

The RG320FM was produced in Korea from 2003 until 2005 when production moved to Indonesia. Several changes were made to the Indonesian models, including a new set of pickups, a different tremolo and a multi-piece neck.

The RG320FML is a left-handed version. The RG320FA is a similar model with a figured ash top.

The RG320FM was replaced for 2008 with the RG320DXFM which is similar but has sharktooth fretboard inlays.

Specifications[]

Related content: RG series | Models-icon
Specifications for RG320FM
Model name: RG320FM
Year(s) offered: 2003–2007
Sold in: Europe / Japan / USA
Made in: Korea (2003–2005)/ Indonesia (2005–2007)
Finish(es): AM (Amber) / TG (Transparent Gray) 2007 / TL (Transparent Lavender Blue)
Body
Body type:
Solid body
Body material:
Basswood w/ flamed maple top
Neck joint:
AANJ
Bridge:
2003–2004: Edge Pro II tremolo
2005–2007: Edge III tremolo
Hardware color:
Cosmo black
Neck
Neck type:
Wizard II
Neck material:
2003–2004: 1-piece maple
2005–2007: 3-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / jumbo
Electronics
Pickup configuration:
HH
Bridge pickup:
2003–2004: PSND2
2005–2007: INF4
Neck pickup:
2003–2004: PSND1
2005–2007: INF3
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Other available finishes

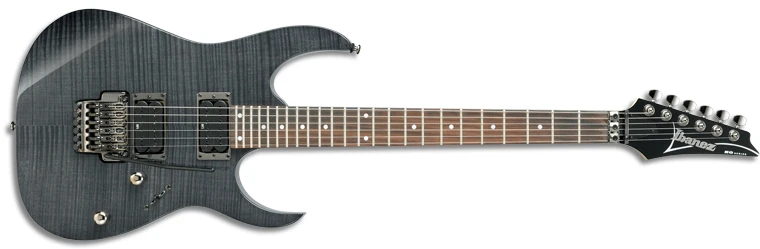

RG320FM TG
Transparent Gray

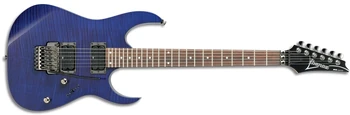

2007 RG320FM TL
Transparent Lavender
