RG2770Z SPB
RG2770Z Sapphire Blue (more images) Red copyright sprite

The RG2770Z is an RG series solid body electric guitar model introduced by Ibanez in 2010. It was made in Japan as part of the upscale Prestige line and was sold exclusively in Japan. It was a limited edition model and the first model in was to be the "With a Difference" series.

The RG2770Z features a 4mm thick flamed maple top on a mahogany body bolted to a maple and walnut Wizard HP neck with a 24-fret rosewood fingerboard with small offset dot position markers. Components include DiMarzio IBZ pickups with a pair of direct mounted humbuckers flanking a single-coil, an Edge Zero double locking tremolo bridge with a removable ZPS3 tuning stabilizer and Gotoh tuning machines.

The RG2570Z is a related model with a basswood body and wedge sharktooth fretboard inlays.

The RG2770Z was discontinued after 2012.

Specifications

Specifications for RG2770Z
Model name: RG2770Z
Year(s) produced: 2010–2012
Sold in: Japan
Made in: Japan
Finish(es): Devil's Shadow (DSH) / Regal Brown Burst (RBB) 2010 / Sapphire Blue (SPB) / Red Spinel (RS) 2012
Body
Body type:
Solid body
Body material:
Mahogany body w/ 4mm flamed maple top
Neck joint:
AANJ
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer
Knob style:
Collet
Hardware color:
Cosmo black
Neck
Neck type:
Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Small offset pearl dot
Frets:
24 / jumbo
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio IBZ RG (H)
Middle pickup:
DiMarzio IBZ RG-S (S)
Neck pickup:
DiMarzio IBZ RG (H)
Controls:
Master volume / master tone / 5-way lever

Images

Additional finishes/ details

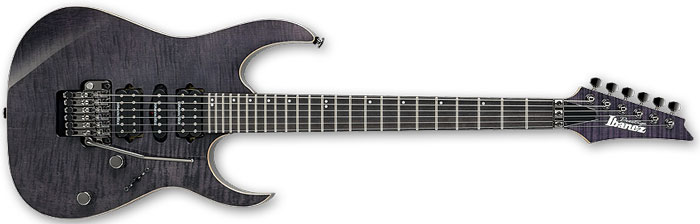

RG2770Z DSH
Devil's Shadow

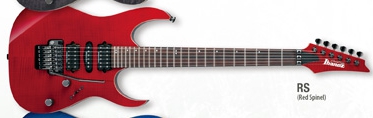

2012 RG2770Z RS
Red Spinel

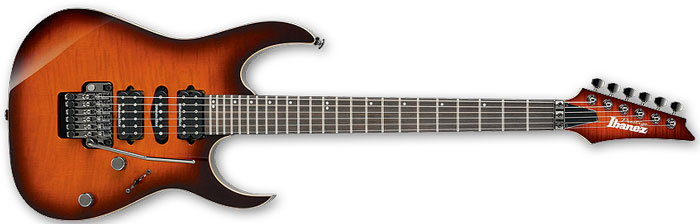

RG2770Z RBB
Regal Brown Burst
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
