RG2750QV RS.png

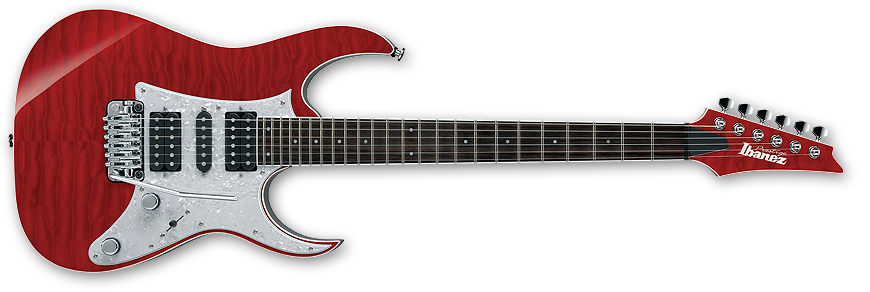

RG2750QV Red Spinel (more images) Red copyright sprite.png

The RG2750QV is an RG series solid body electric guitar model introduced by Ibanez in 2013. It was made in Japan by FujiGen as part of the upscale Prestige line.

The RG2750QV features a quilted maple top with white binding on an alder body bolted to a maple and walnut Wizard HP neck with a 24-fret rosewood fingerboard with dot position markers. Components include Ibanez pickups mounted in a pearloid pickguard with a pair of True Duo humbuckers flanking a Short Tracer 2 single-coil, a SynchroniZR ball bearing pivot synchronized tremolo bridge with a ZPS-FX stabilizer, a Graph Tech TUSQ nut and Gotoh tuning machines.

The RG2750Q is a somewhat similar model with different pickups and bridge.

The RG2750QV was discontinued after 2016.

Specifications

Specifications for RG2750QV
Year(s) produced: 2013–2016
Sold in: Japan
Made in: Japan
Finish(es): Red Spinel (RS) / Transparent Aqua Blue (TAB) / Transparent Black (TBK)
Body
Body type:
Solid body
Body material:
Alder w/ 4mm quilted maple top w/ white binding
Neck joint:
AANJ
Bridge:
SynchroniZR with ZPS-FX stabilizer
Pickguard:
White pearloid
Hardware color:
Chrome
Neck
Neck type:
Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / jumbo
Nut:
Graph Tech Black TUSQ XL (43mm)
Machine heads:
Gotoh SG381 (non-locking)
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez True Duo Blast 2 (H)
Middle pickup:
Ibanez Short Tracer 2 (S)
Neck pickup:
Ibanez True Duo Blast 1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector / push-pull True Duo switch on volume
String gauge (factory):
.009–.042

Images

Additional finishes/ details

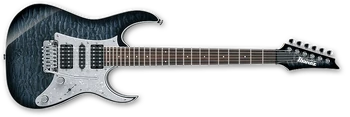

RG2750QV TBK.png

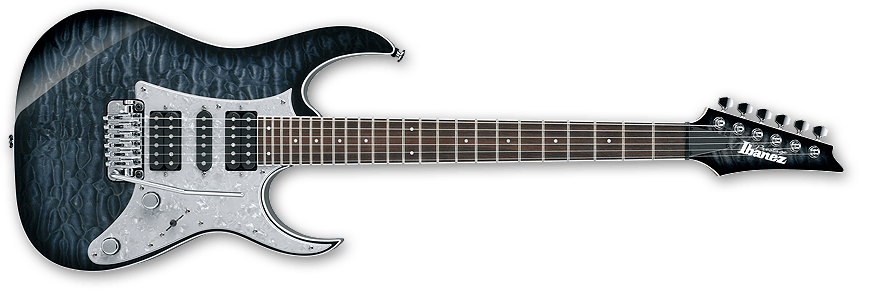

Transparent Black
2016 RG2750QV TAB 00 01.jpg

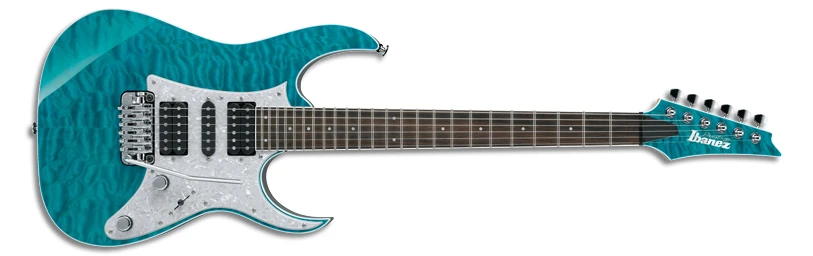

Transparent Aqua Blue
HSH 5-way push-pull stacked-single.png
Pickup switching diagram
VT-5-way push-pull-coil-split-volume.png
Control layout
