This page is about the RG270 from 1998–2002, made in Korea. For other RG270 models, see RG270 (disambiguation).

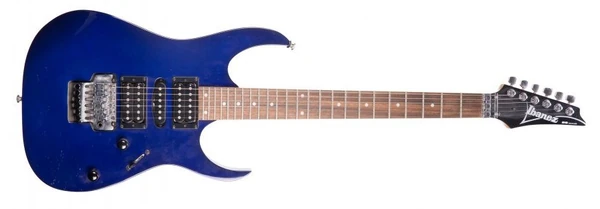

2002 RG270 JB
RG270 Jewel Blue (more images) Red copyright sprite

The RG270 is an RG series solid body electric guitar introduced by Ibanez in 1998. This model replaced the very similar RG270R as well as a previous model with a maple fretboard. This model was made in Korea, but in 2001 and 2002 another model with the same name was produced concurrently in Japan.

The RG270 features a basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with pearl dot position markers. Components include a single locking tremolo bridge and Ibanez Powersound pickups. For 2002 the SLT101 single-locking tremolo was replaced by a ILT1 double locking tremolo.

This Korean-made version has a different bridge, nut, tuners and hardware color than the Japanese-made version, but is otherwise similar.

The RG270DX is a similar model with sharktooth position markers. The RG270L is a left-handed version. The RG220 is a similar model without the middle pickup.

This version of the RG270 was discontinued after 2002.

Specifications[]

Related content: RG series | Models-icon
Specifications for RG270
Model name: RG270
Year(s) offered: 1998–2002
Sold in: Europe / USA
Made in: Korea
Finish(es): BK (Black) / CA (Candy Apple) 1998, Europe only / GP (Gray Pewter Matte) 2002 / JB (Jewel Blue) / LR (Lipstick Red) 1999 / MG (Metallic Green) 1998, USA only / MW (Moon Shadow) 2002
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
1998–2001: SLT101 SL tremolo
2002: ILT1 DL tremolo
Hardware color:
Chrome (black knobs)
Neck
Neck type:
Wizard II
Neck material:
1-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / jumbo
Nut:
Locking
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez PSND2 (H)
Middle pickup:
Ibanez PSNDS (S)
Neck pickup:
Ibanez PSND1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Other available finishes

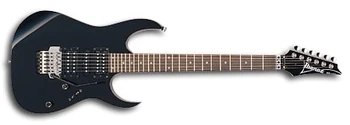

2002 RG270 BK
Black

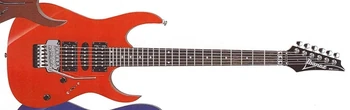

1998 RG270 CA
Candy Apple

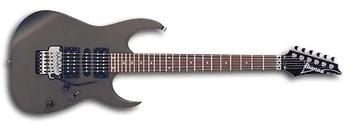

2002 RG270 GP
Gray Pewter Matte
1999 RG270 LR
Lipstick Red
Metallic Green
2002 RG270 MW
Moon Shadow
Wimage An image for this article is missing!
An image of the RG270 MG (Metallic Green) is wanted for this article. You can help by finding, uploading and adding it!
