RG2570MZ CAB

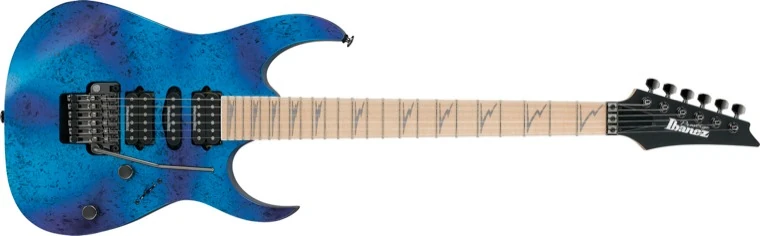

RG2570MZ Caribbean Blue Lagoon (more images) Red copyright sprite

The RG2570MZ is an RG series solid body electric guitar model introduced by Ibanez in 2009. It was produced in Japan by FujiGen as part of the upscale Prestige line.

It is based on the 2008 limited edition RG2470MZ. Changes from that model include the finish and the maple fingerboard with wedge sharktooth inlays. Other features of the RG2570MZ are a basswood body, an Edge Zero double locking tremolo bridge and DiMarzio IBZ pickups.

For 2010, the finish was changed again and the neck profile was renamed Wizard HP, now with KTS Titanium reinforcement rods.

The RG2570Z is a similar model with a rosewood fingerboard. The RGSP1 and RGSP2 are visually similar special models with the Edge Pro tremolo.

The RG2570MZ was discontinued after 2014, being replaced with the RG2570MZA which is similar but uses different pickups.

Specifications[]

Related content: Prestige series | RG series | Models-icon
Specifications for RG2570MZ
Model name: RG2570MZ
Year(s) offered: 2009–2014
Sold in: Worldwide (except the USA)
Made in: Japan
Finish(es): Caribbean Blue Lagoon (CAB) / Vital Blue (VBE) / White (WH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer
Hardware color:
Cosmo black
Neck
Neck type:
2009: Wizard Prestige
2010–2014: Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Maple w/ binding
Fingerboard inlays:
Wedge sharktooth
Frets:
24 / jumbo
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio IBZ RG (H)
Middle pickup:
DiMarzio IBZ RG-S (S)
Neck pickup:
DiMarzio IBZ RG (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Other available finishes

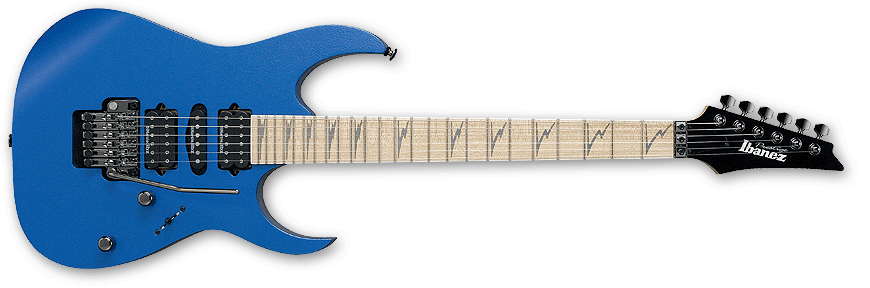

RG2570MZ VBE
RG2570MZ Vital Blue
RG2570MZ WH
RG2570MZ White
