RG2560ZEX CW

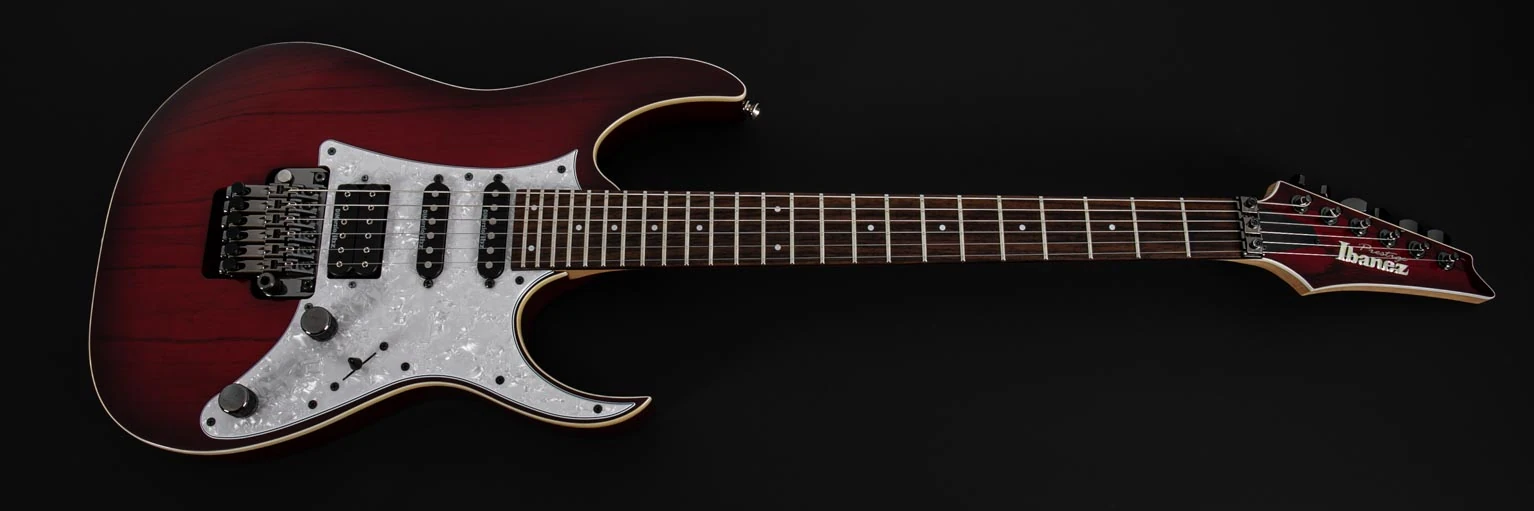

RG2560ZEX Crimson Wine (more images) Red copyright sprite

The RG2560ZEX is an RG series solid body electric guitar model introduced by Ibanez in 2010. It was made in Japan by FujiGen as part of the Prestige line. It was sold exclusively in Japan and produced in relatively small quantities.

The RG2560ZEX features an ash body bolted to a maple and walnut neck with a 24-fret rosewood fingerboard with abalone dot position markers. Components include DiMarzio/IBZ pickups with a humbucker at the bridge and single-coils in the neck and middle positions, an Edge Zero double locking tremolo bridge and Gotoh tuning machines.

The HSS pickup configuration is fairly unusual among RG series models.

The RG2560MZEX is a similar model with a maple fretboard.

Specifications[]

Related content: Prestige series | RG series | Models-icon
Specifications for RG2560ZEX
Year(s) offered: 2010–2012
Sold in: Japan
Made in: Japan
Finish(es): Abyss Blue Burst (ABT) / Crimson Wine (CW) / Desert Sunset Burst (DST)
Body
Body type:
Solid body
Body material:
Ash w/ binding
Neck joint:
AANJ
Bridge:
Edge Zero tremolo w/ ZPS3 (10.8mm string spacing)
Pickguard:
White pearloid
Hardware color:
Cosmo black
Neck
Neck type:
Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone dot
Frets:
24 / jumbo
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
DiMarzio IBZ RG (H)
Middle pickup:
DiMarzio IBZ RG-S (S)
Neck pickup:
DiMarzio IBZ RG-S (S)
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other finishes

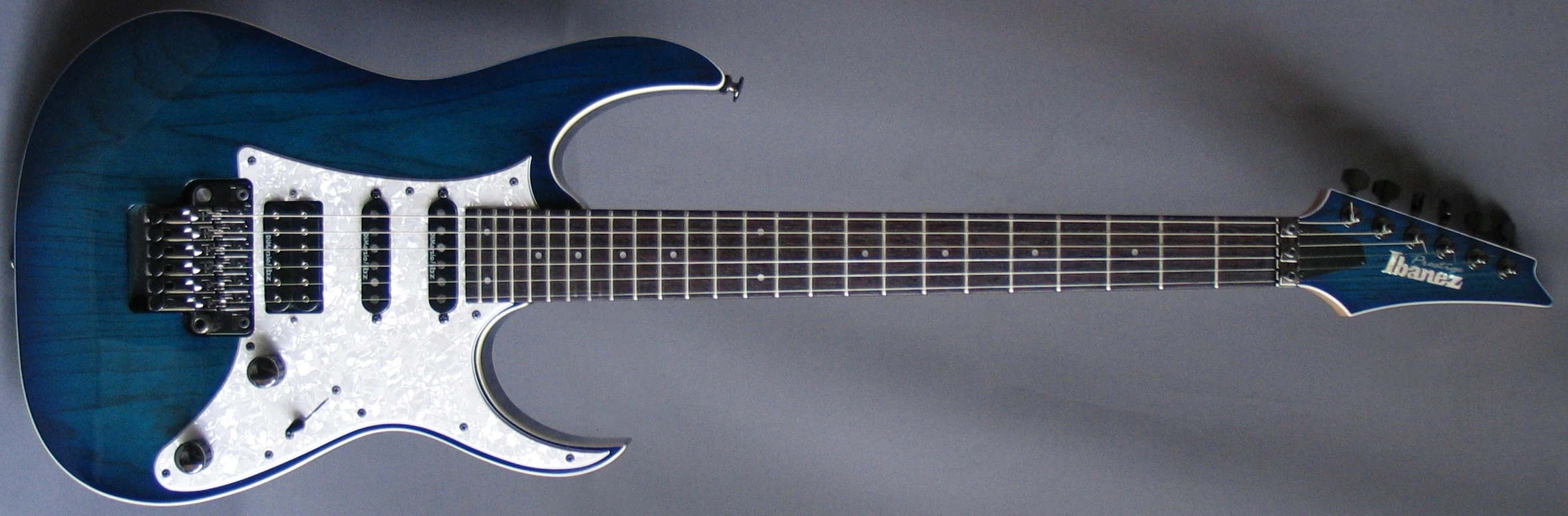

2011 RG2560ZEX ABT
Abyss Blue Burst

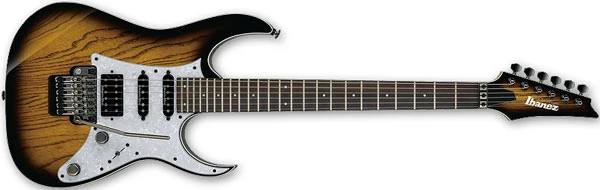

RG2560ZEX DST
Desert Sunset Burst
Additional details

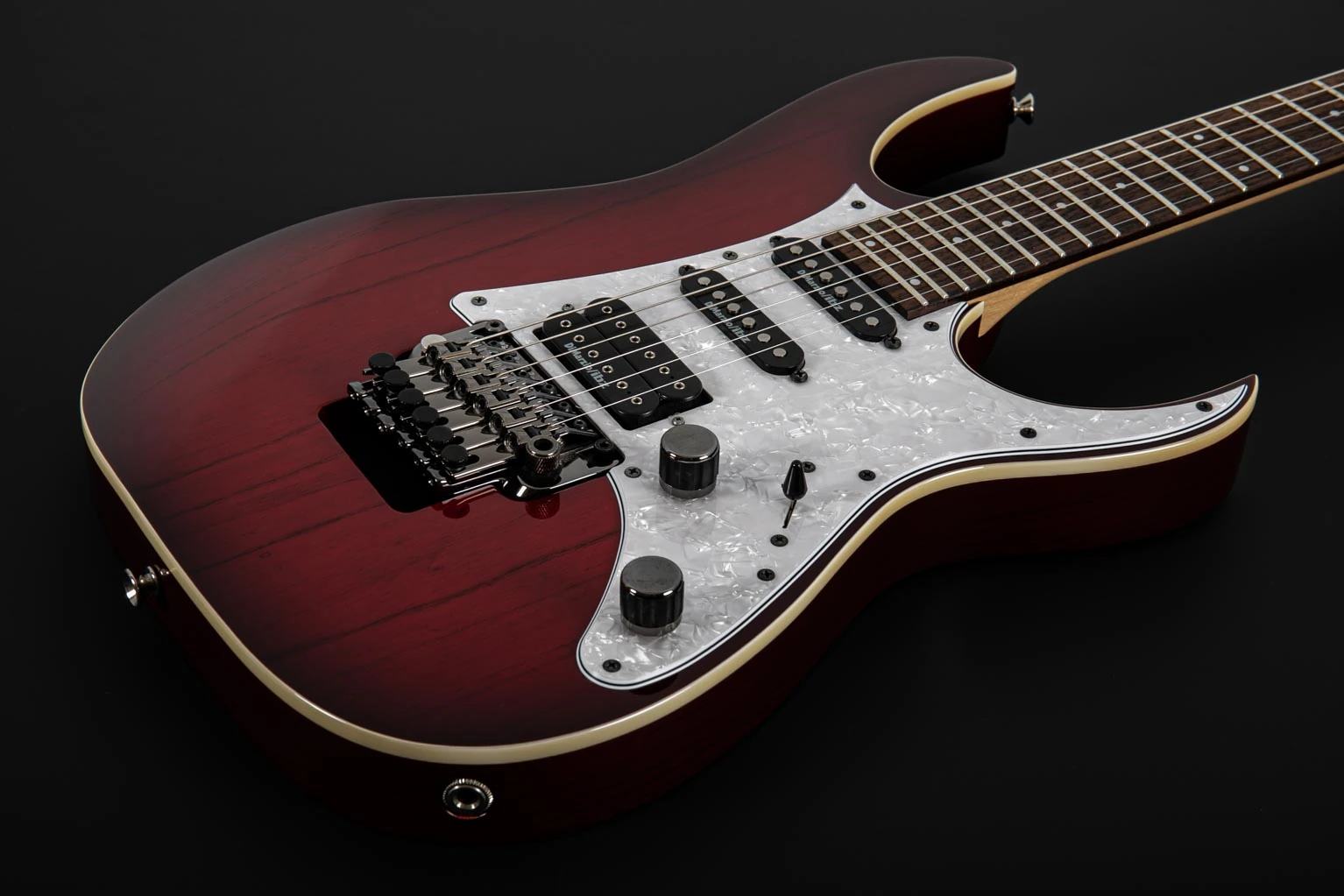

RG2560ZEX CW body
Front of body (CW finish)

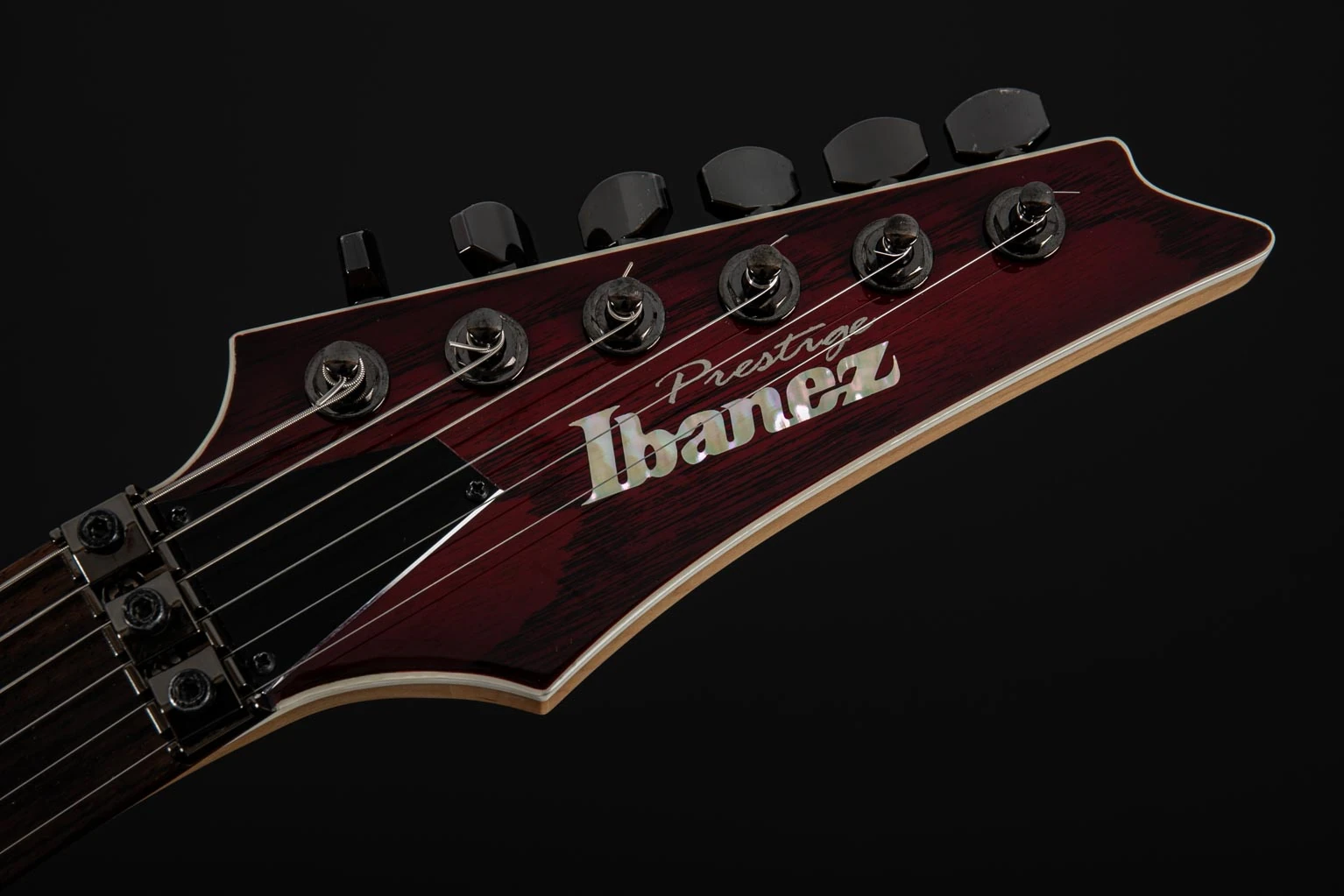

RG2560ZEX CW headstock
Headstock (CW finish)
HSS 5-way split
Pickup switching diagram
Controls VT5
Control layout
