RG2228A BK

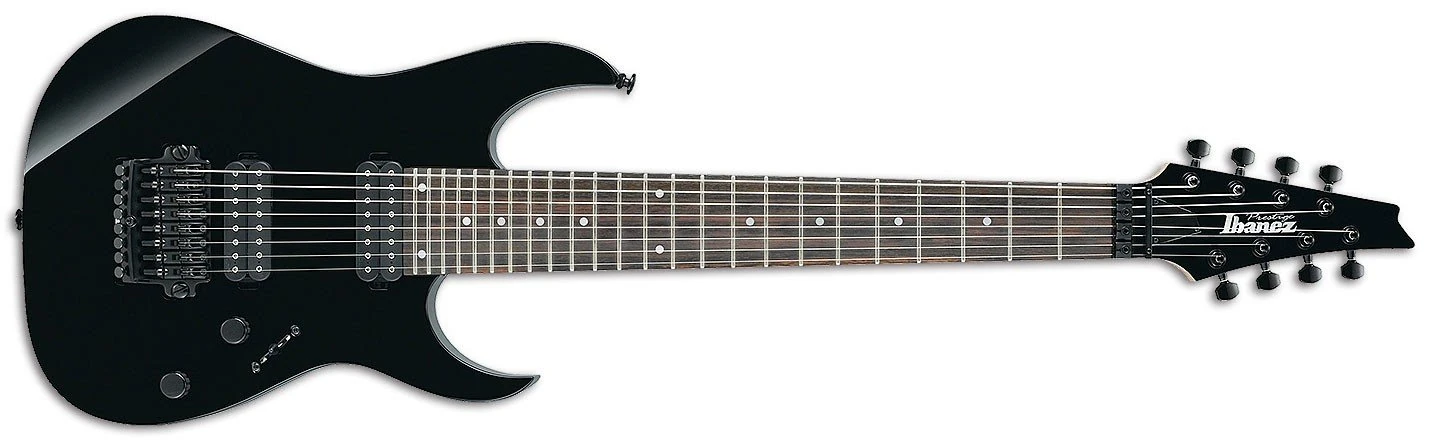

RG2228A in Black (more images) Red copyright sprite

The RG2228A is an eight-string RG series solid body electric guitar model introduced by Ibanez in 2012. It is part of the Japanese crafted Prestige line.

The RG2228A features a basswood body mated to a 27" scale maple and wenge Ultra neck with a 24-fret rosewood fingerboard with dot inlays. Components include dual DiMarzio humbucking pickups with a 5-way selector switch, a fixed bridge, a locking nut and Gotoh tuners.

The RG2228 is a virtual twin except it has EMG pickups and a 3-way selector switch.

The RG2228A was discontinued after 2013.

Specifications

Specifications for RG2228A
Model name: RG2228A
Year(s) produced: 2012–2013
Sold in: Europe / Japan / USA
Made in: Japan
Finish(es): WH (White) / BK (Black)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
FX Edge III-8 tremolo
Hardware color:
Black
Neck
Neck type:
Ultra-8 Prestige
Neck material:
5-piece maple/ wenge w/ KTS titanium rods
Scale length:
685.8mm/ 27”
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / jumbo
Nut:
Locking
Machine heads:
Gotoh SG381 (non-locking)
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio D Activator 8 (H)
Neck pickup:
DiMarzio D Activator 8 (H)
Controls:
Master volume / master tone / 5-way lever
String gauge (factory):
.009–.065
Factory tuning:
1D# 2A# 3F# 4C# 5G# 6D# 7A# 8F

Images

RG228A GW

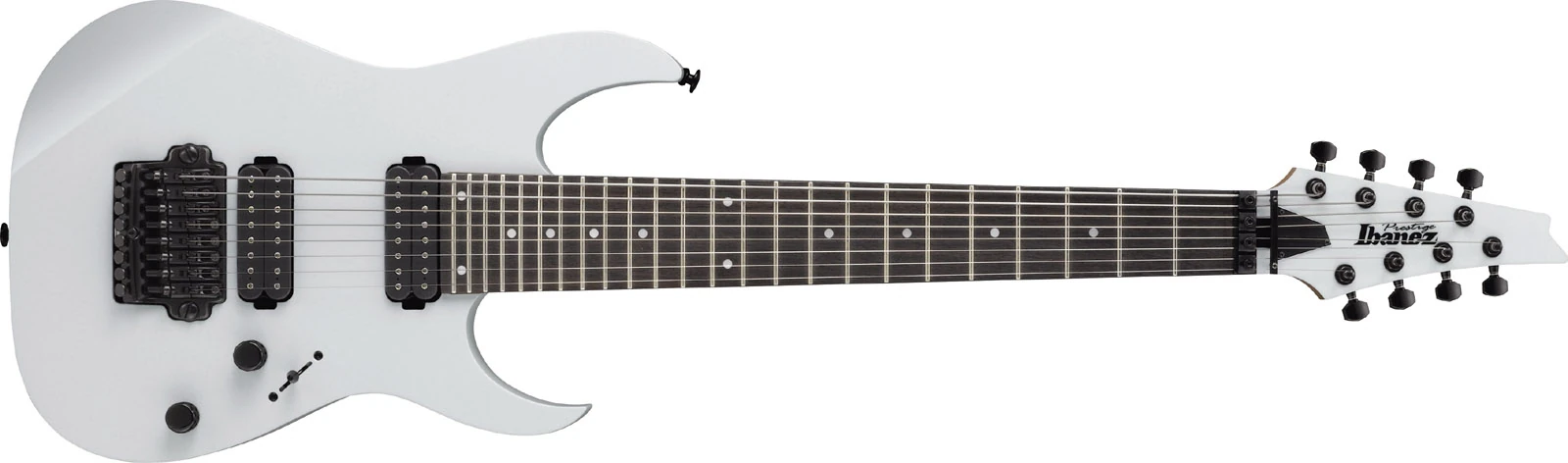

RG2228A in White Red copyright sprite
