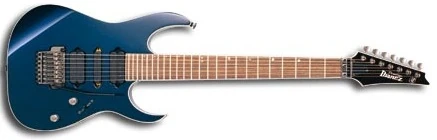

RG2077XL RB.jpg
RG2077XL Royal Blue Red copyright sprite.png

The RG2077XL is a seven string RG series solid body electric guitar model introduced by Ibanez in 2003. It was made in Japan by FujiGen as part of the upscale Prestige line.

The RG2077XL features an extended 27" scale length neck. It has a basswood body with binding bolted to a maple and bubinga neck with a 24-fret rosewood fingerboard with binding and offset abalone dot position markers. Components include DiMarzio pickups with a pair of humbuckers flanking a single-coil, the new Edge Pro double locking tremolo bridge, and Gotoh tuning machines.

It replaced the RG1077XL which is very similar aside from the tremolo.

The RG2077XL was discontinued after just one year in production.

Specifications

Specifications for RG2077XL
Year(s) produced: 2003
Sold in: Worldwide (except Japan & USA)
Made in: Japan
Finish(es): Royal Blue (RB)
Body
Body type:
Solid body
Body material:
Basswood w/ top binding
Neck joint:
AANJ
Bridge:
Edge Pro 7
Knob style:
Gotoh VK1-19
Hardware color:
Powder cosmo
Neck
Neck type:
Wizard-7 27" Prestige
Neck material:
3-piece maple/ bubinga
Scale length:
686mm/ 27"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Offset abalone dot
Frets:
24 / jumbo
Nut:
Top-Lok III (48mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio RG-7-B (H)
Middle pickup:
DiMarzio Blaze-M (H)
Neck pickup:
DiMarzio RG-7-N (H)
Switch:
VLX91
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel
Factory tuning:
1E,2B,3G,4D,5A,6E,7B

Images

Additional details
HSH 5-way both-splits.png
Pickup switching diagram
Controls VT5.png
Control layout

Video

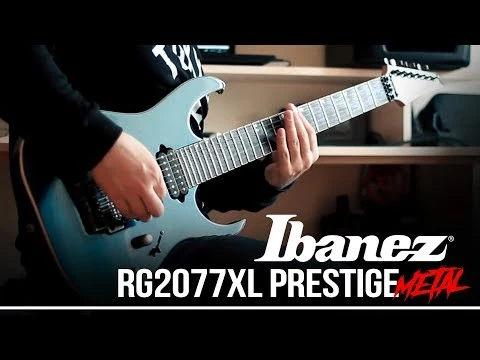

Ibanez RG2077XL ( Metal - Demo )
