RG1820X GK
RG1820X Galaxy Black Red copyright sprite

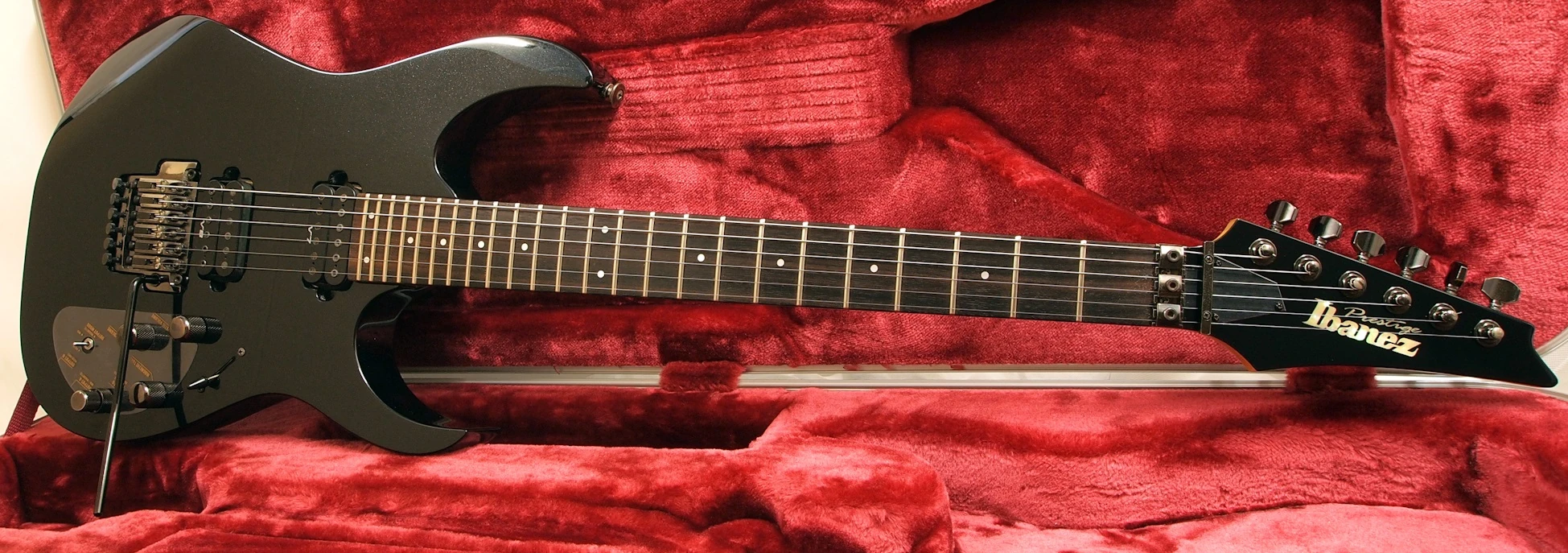

The RG1820X is an RG series solid body electric guitar model introduced by Ibanez in 2005. It was made in Japan by FujiGen as part of the upscale Prestige line.

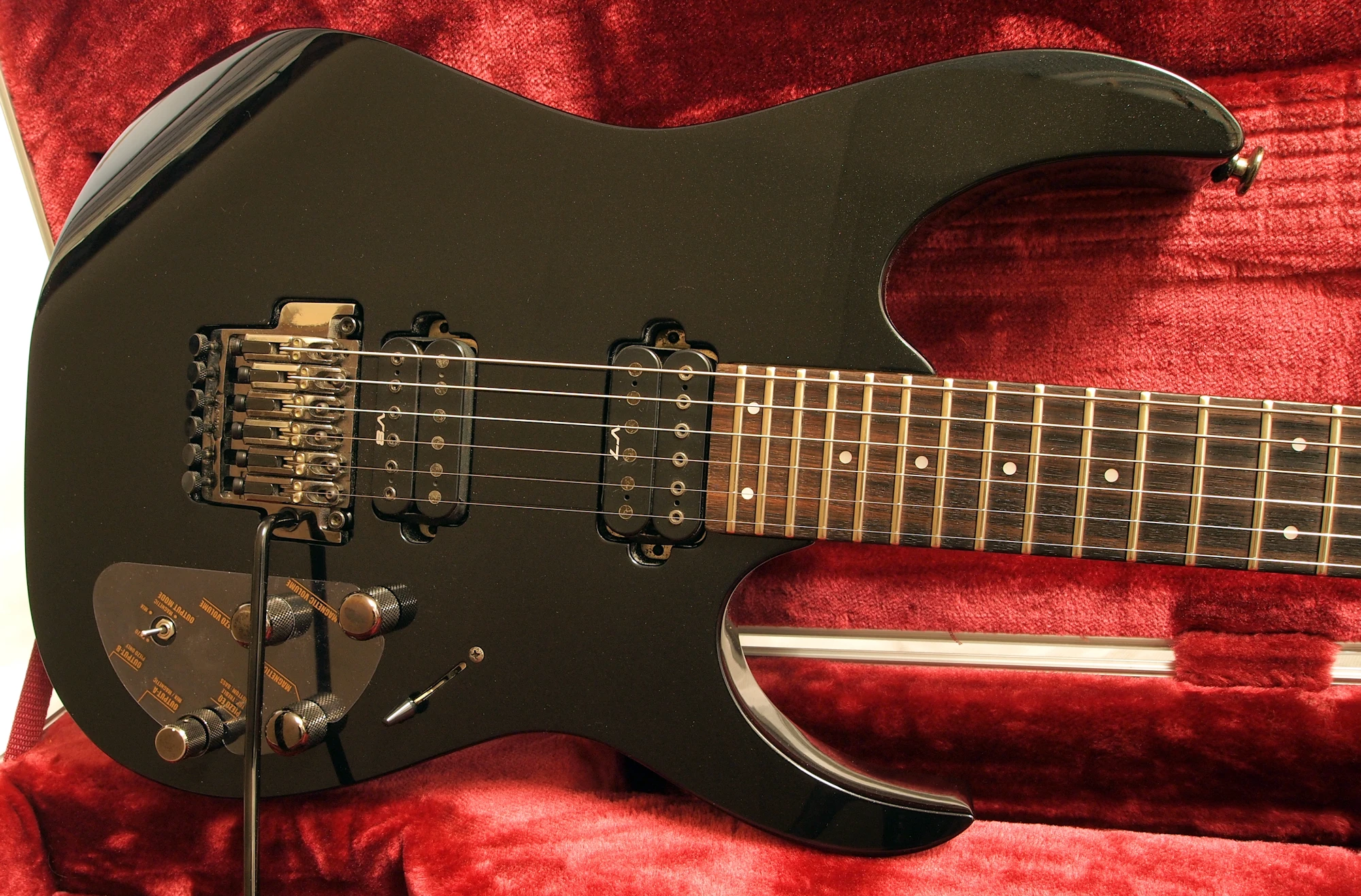

The RG2120X features a basswood body bolted to a maple and walnut neck with a 24-fret rosewood fingerboard with binding and small pearloid dot position markers. Components include a pair of Ibanez humbucking pickups and a Double Edge Pro double locking tremolo bridge with a L.R. Baggs active piezo pickup saddles which offer an acoustic-like tone. Controls consist of a volume, tone and 5-way selector for the magnetic pickups plus a separate volume and 2-band EQ for the piezo along with a 3-way toggle for selecting magnetic pickup only, piezo only or mixed output.

It replaced the similar RG1620X, adding the stacked tone control for the piezo.

The RG1820X was discontinued after 2009. It was the last RG model featuring a piezo.

Specifications

Specifications for RG1820X
Year(s) produced: 2005–2009
Sold in: Worldwide
Made in: Japan
Finish(es): Galaxy Black (GK)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Double Edge Pro w/ L.R. Baggs piezo
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
Wizard Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Small pearl dot
Frets:
24 / jumbo
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HH + piezo
Bridge pickup:
Ibanez V8 (H)
Neck pickup:
Ibanez V7 (H)

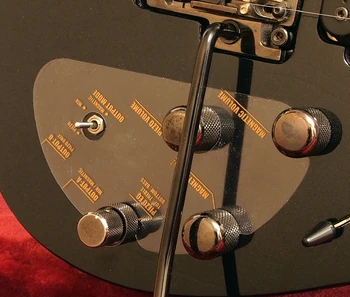

Controls:
Mag. pickups: Master volume / master tone / 5-way lever
Piezo: 1 volume / two-band EQ (stacked)
Mixed output selection: 3-way toggle

Images

Additional details

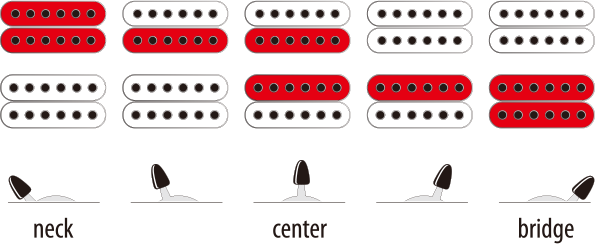

HH 5-way split
Magnetic pickup switching diagram
