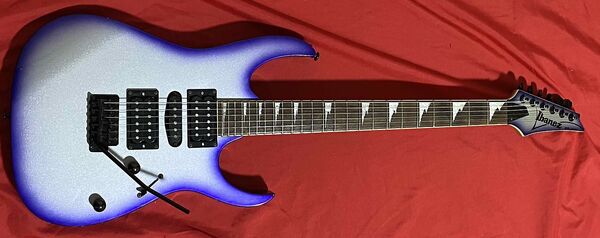

2003 RG180DX BLD
RG180DX Blue Shadow (more images) Red copyright sprite

The RG180DX is an RG series solid body electric guitar model introduced by Ibanez in 2001. It was made by the World company in South Korea and was sold only in Japan.

The RG180DX features a basswood body bolted to a maple neck with a 24-fret bound rosewood fingerboard with sharktooth position markers. Components include a Ibanez pickups and a synchronized tremolo bridge.

The RG170DX is a similar model which is sold outside Japan.

The RG180DX was discontinued after 2004

Specifications[]

Related content: RG series | Models-icon
Specifications for RG180DX
Year(s) offered: 2001–2004
Sold in: Japan
Made in: Korea
Finish(es): Black (BK) / Blue Shadow (BLD) / Red Shadow (RDD) / Red Sunburst (RST)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
2001–2002: Standard tremolo
2003: FAT-20 tremolo
Hardware color:
Black
Neck
Neck type:
Wizard II
Neck material:
1-piece maple
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Sharktooth
Frets:
24 / jumbo
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez WH1-B (H)
Middle pickup:
Ibanez WS1 (S)
Neck pickup:
Ibanez WH1-N (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Other available finishes

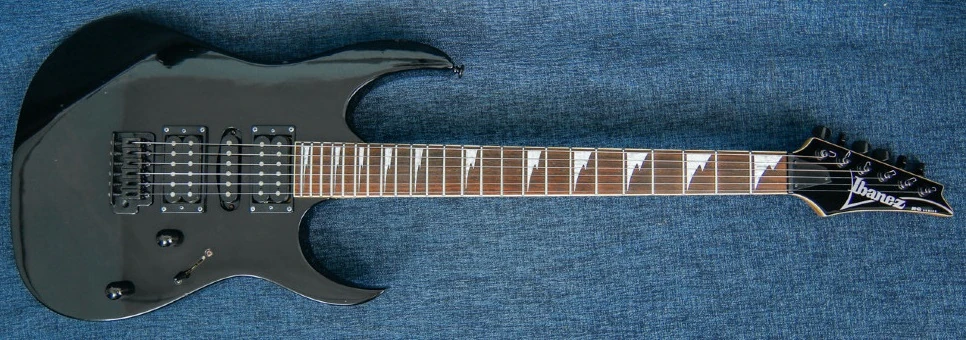

2003 RG180DX BK
Black

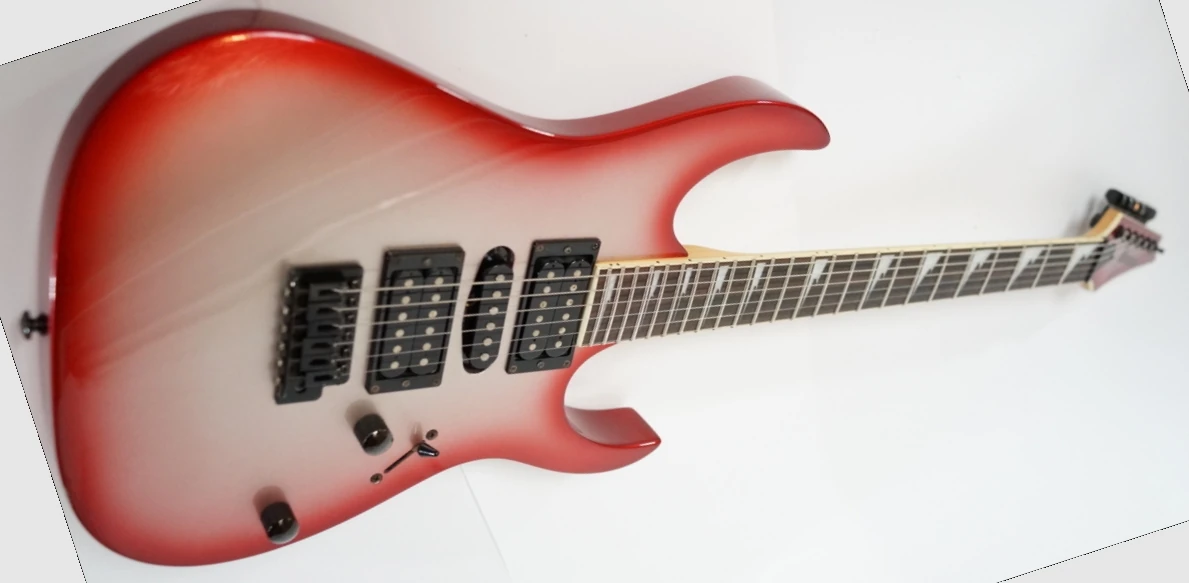

2001 RG180DX RST
Red Sunburst

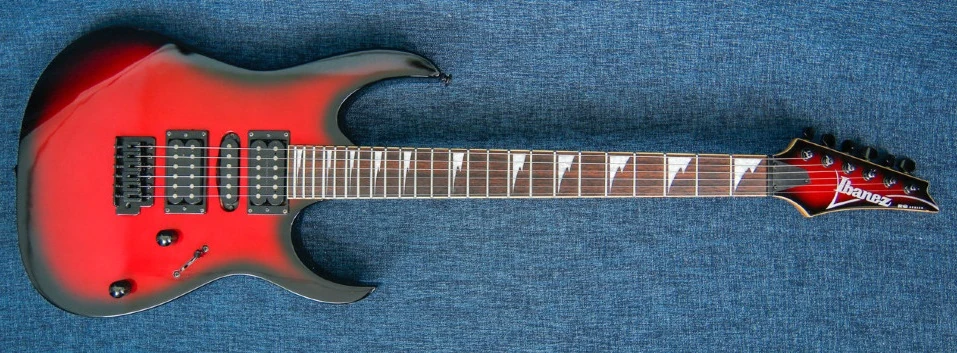

2001 RG180DX RS
Red Shadow
