This page is about the Edge Zero-equipped RG1550MZL. For RG1550ML with an Edge Pro, see RG1550ML.

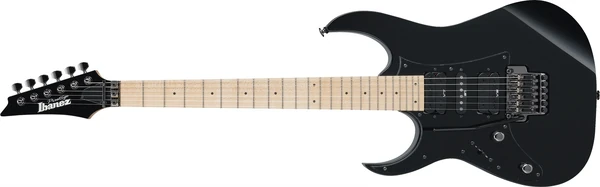

RG1550MZL BK
RG1550MZL Black Red copyright sprite

The RG1550MZL is a left-handed RG series solid body electric guitar model introduced by Ibanez for 2010. It was made in Japan by FujiGen as part of the upscale Prestige line.

The RG1550MZL replaced the RG1550ML, with the major difference being a new tremolo. However, in the USA the RG1550ML name is still applied to this new model, as the Z suffix is ignored for some models in promotional material. It is considered to be in the lineage of the classic RG550L.

The RG1550MZL features a basswood body bolted to a maple and walnut neck with a 24-fret maple fingerboard with small black dot position markers. Components include Ibanez pickups mounted in a black pickguard with V7 & V8 humbuckers flanking an S1 single-coil, the newly introduced Edge Zero double locking tremolo bridge with a removable ZPS3 tuning stabilizer and Gotoh tuning machines.

The RG1550MZ is a right-handed version.

The RG1550MZL was discontinued after 2011.

Specifications[]

Related content: Prestige series | RG series | Models-icon
Specifications for RG1550MZL / RG1550ML USA only
Model name: RG1550MZL / RG1550ML USA only
Year(s) offered: 2010–2011
Sold in: USA
Made in: Japan
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer (10.8mm string spacing)
Pickguard:
Black
Hardware color:
Cosmo black
Neck
Neck type:
Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Small black dot
Frets:
24 / jumbo
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez V8 (H)
Middle pickup:
Ibanez S1 (S)
Neck pickup:
Ibanez V7 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
