This page is about the Edge Zero-equipped RG1550MZ. For the RG1550M featuring the Edge Pro, see RG1550M.

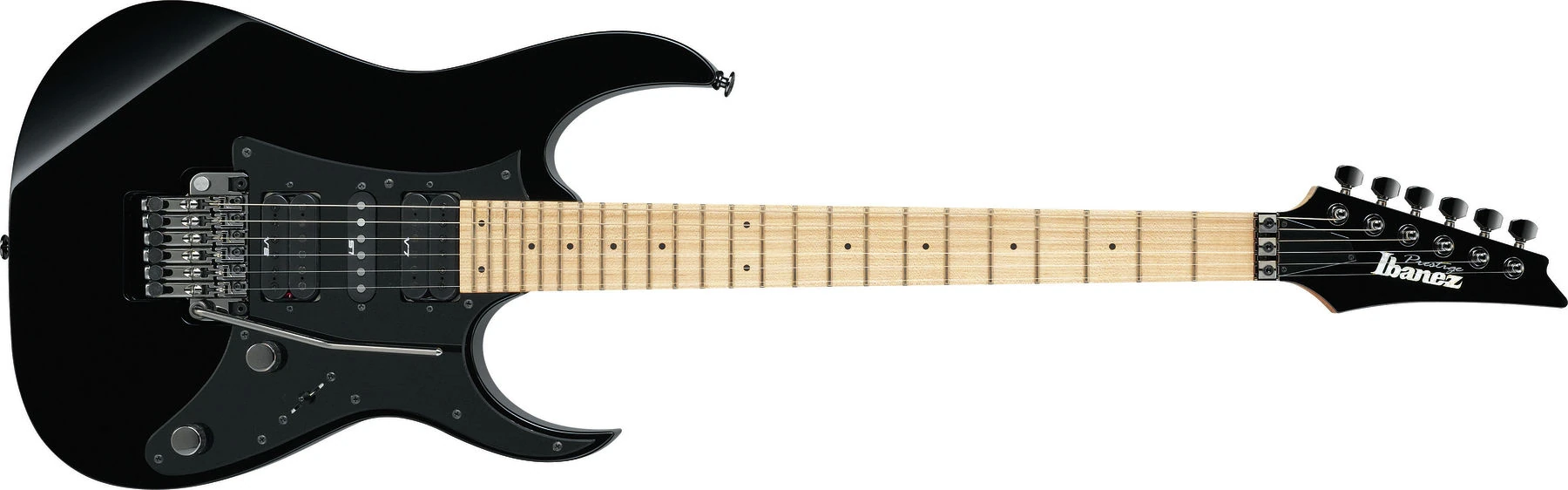

RG1550MZ BK
RG1550MZ Black (more images) Red copyright sprite

The RG1550MZ is an RG series solid body electric guitar model introduced by Ibanez in 2010. It was made in Japan by FujiGen as part of the upscale Prestige line.

The RG1550MZ replaced the RG1550M, with the major difference being a new tremolo. However, in the USA the RG1550M name is still applied to this new model, as the Z suffix is ignored for some models in promotional material. It is considered to be in the lineage of the classic RG550.

The RG1550MZ features a basswood body bolted to a maple and walnut neck with a 24-fret maple fingerboard with small black dot position markers. Components include Ibanez pickups mounted in a black pickguard with V7 & V8 humbuckers flanking an S1 single-coil, the newly introduced Edge Zero double locking tremolo bridge with a removable ZPS3 tuning stabilizer and Gotoh tuning machines.

The RG1550MZL is a left-handed version.

The RG1550MZ was discontinued after 2011.

Specifications

Specifications for RG1550MZ
Model name: RG1550MZ / RG1550M (in the USA)
Year(s) produced: 2010–2011
Sold in: Worldwide (except Japan)
Made in: Japan
Finish(es): Black (BK) / Phantom Blue (PBL) / Poisoned Pumpkin (PPN) / White Plaster (WHP)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer
Pickguard:
Black
Hardware color:
Cosmo black
Neck
Neck type:
Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Small black dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez V8 (H)
Middle pickup:
Ibanez S1 (S)
Neck pickup:
Ibanez V7 (H)
Controls:
Master volume / master tone / 5-way lever

Images

Other available finishes

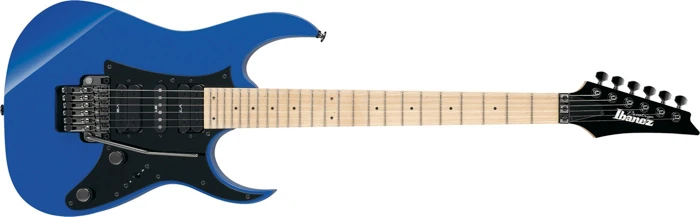

RG1550MZ PBL
Phantom Blue
RG1550MZ PPN
Poisoned Pumpkin
RG1550MZ WHP
White Plaster
