2021 RG1270K NT
RG1270K Natural Low Gloss (more images) Red copyright sprite

The RG1270K is an RG series solid body electric guitar model introduced by Ibanez in late 2022. It was made in Indonesia as part of the mid-tier Premium line.

The RG1270K was created exclusively for Shimamura Musical Instruments in Japan and although it was produced in early 2021, it was first displayed at the "Fukuoka Guitar Show" in October , 2022. Only a single example was produced.

The RG1270K features a koa top with cream binding and a natural low gloss finish on an American basswood body bolted to an eleven piece maple, walnut and bubinga Wizard neck with a 24-fret ebony fingerboard with mother of pearl and abalone split block position markers. Components include DiMarzio pickups with Air Norton and Tone Zone humbuckers with black and white reverse zebra bobbins mounted directly to the body flanking a True Velvet single-coil with a black cover, an Edge double locking tremolo bridge and Gotoh tuning machines.

The RG1270FM is a related model with a flame maple top.

Specifications[]

Related content: Premium series | RG series | Models-icon
Specifications for RG1270K
Model name: RG1270K
Year(s) offered: 2022
Sold in: Japan
Made in: Indonesia
Price: SMAP: ¥173,800[1]
Finish(es): Natural Low Gloss (NTL)
Body
Body type:
Solid body
Body material:
American basswood w/ koa top w/ cream binding
Neck joint:
AANJ
Bridge:
Edge tremolo (10.8mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
Wizard Premium
Neck material:
11-piece maple/ walnut/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Pearloid and ablone split block
Frets:
24 / jumbo nickel silver (Premium edge treatment)
Nut:
Top-Lok III
Machine heads:
Gotoh
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H) passive/ alnico
Middle pickup:
DiMarzio True Velvet (S) passive/ alnico
Neck pickup:
DiMarzio Air Norton (H) passive/ alnico
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Additional details

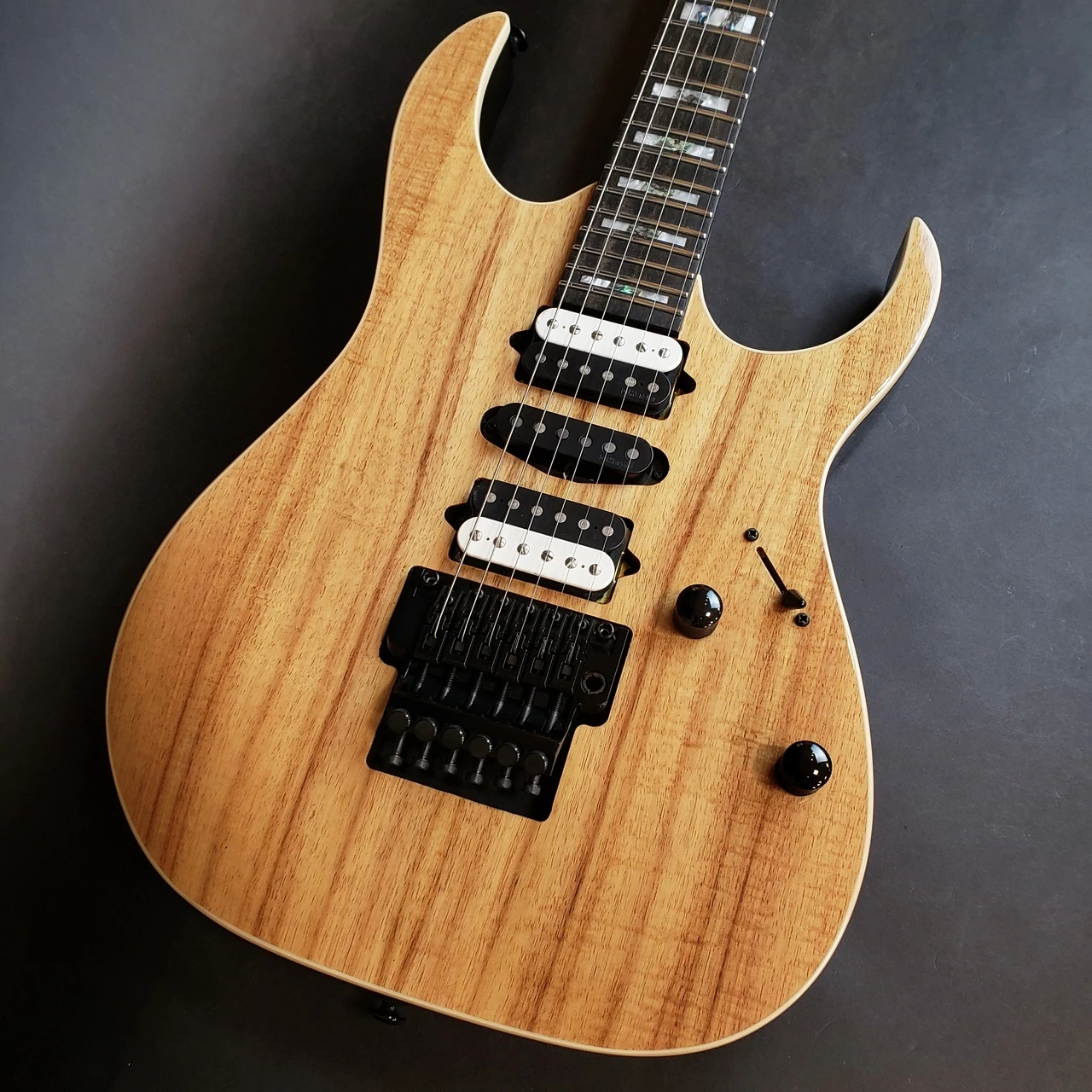

RG1270K front
Front of body

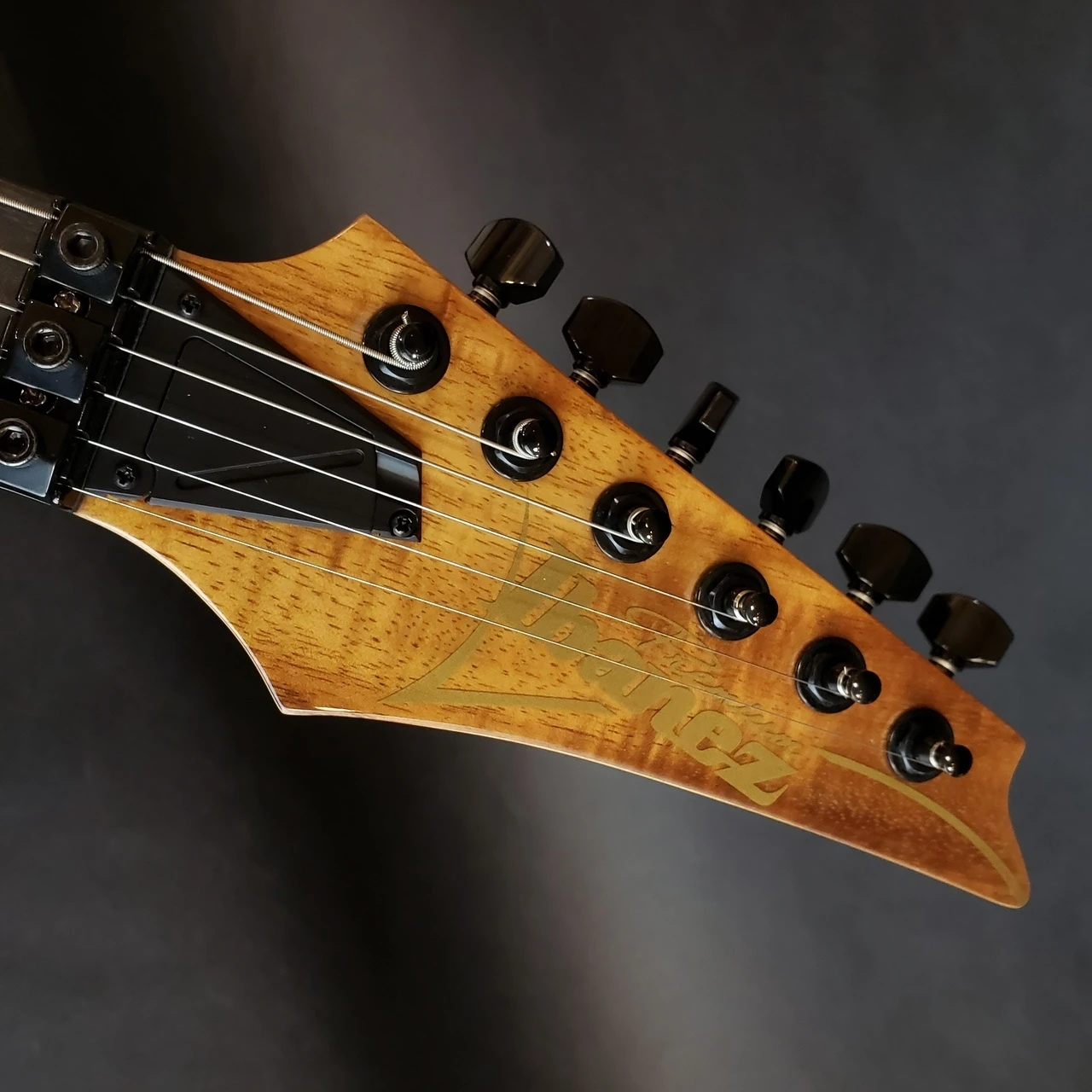

RG1270K headstock
Headstock (front)

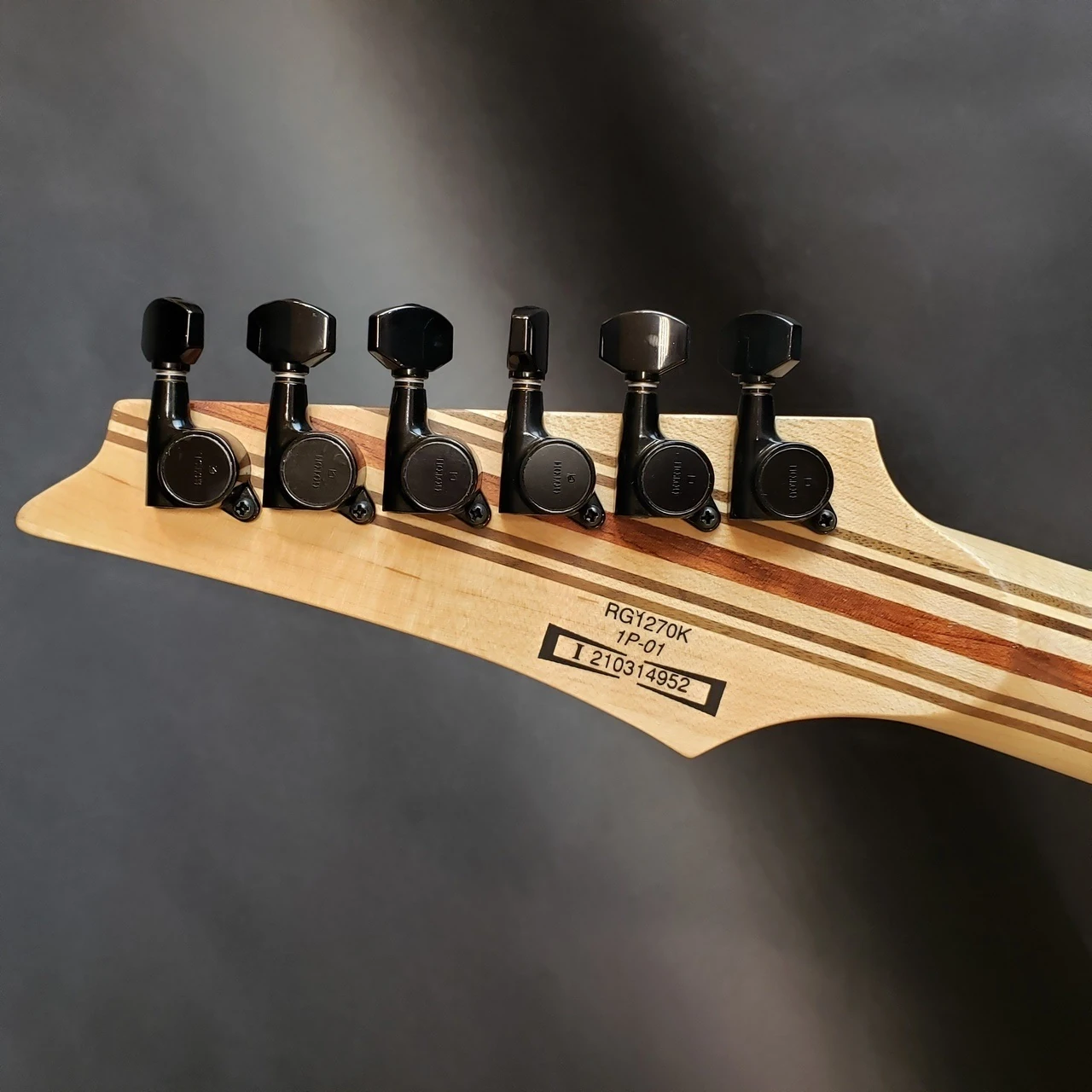

RG1270K tuners
Headstock (rear)

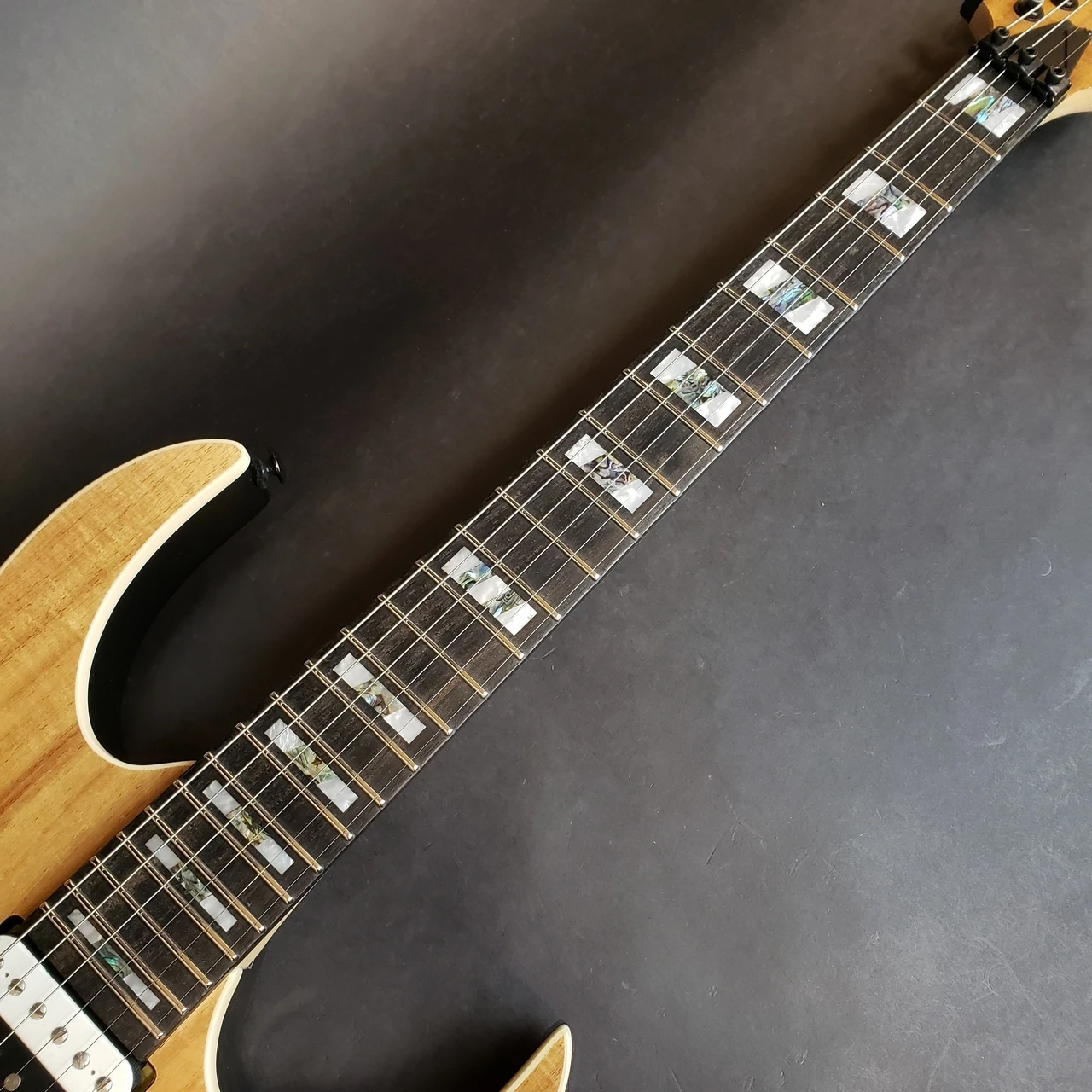

RG1270K fretboard
Ebony fretboard & mother of pearl split blocks inlays

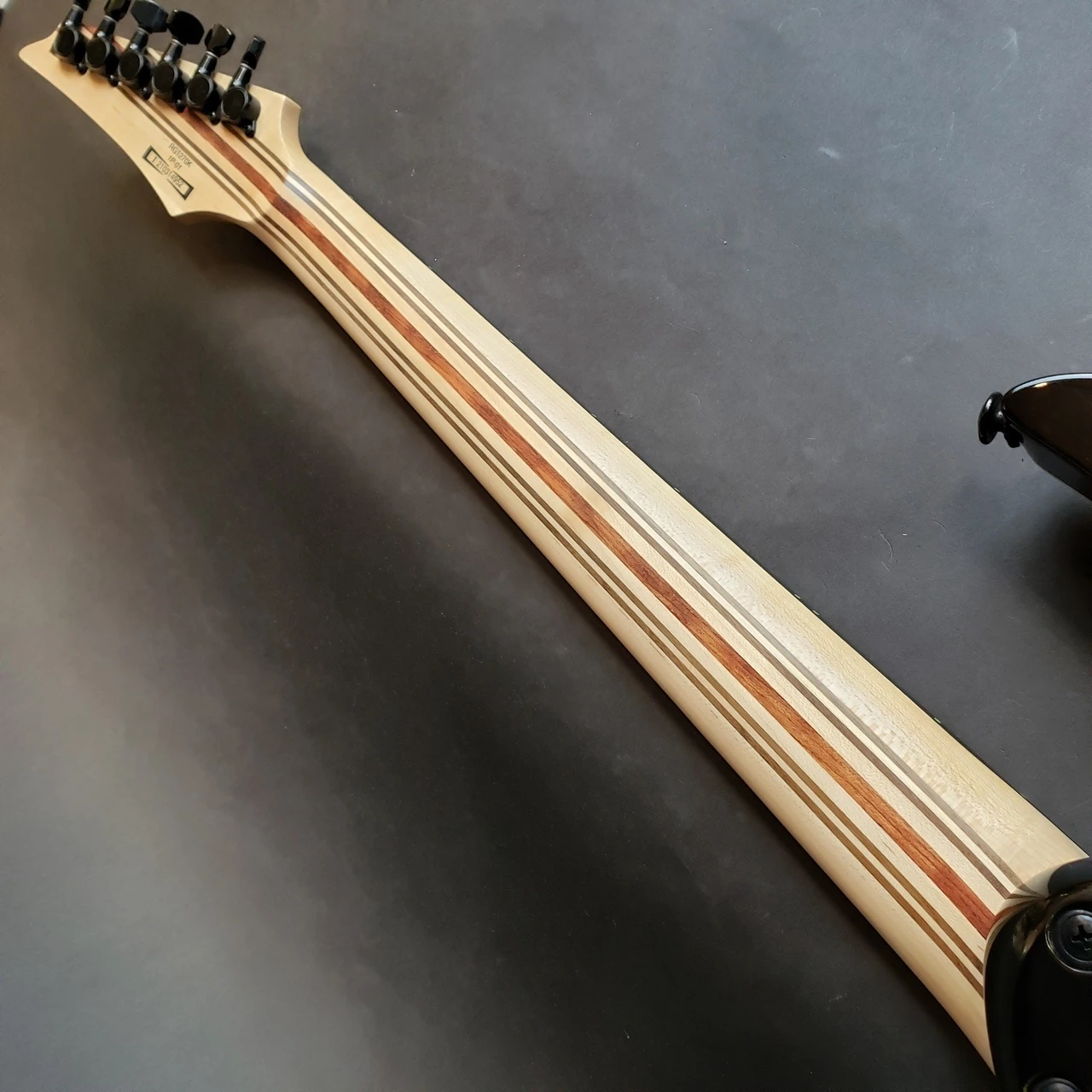

RG1270K neck
11 piece maple, walnut and bubinga Wizard neck

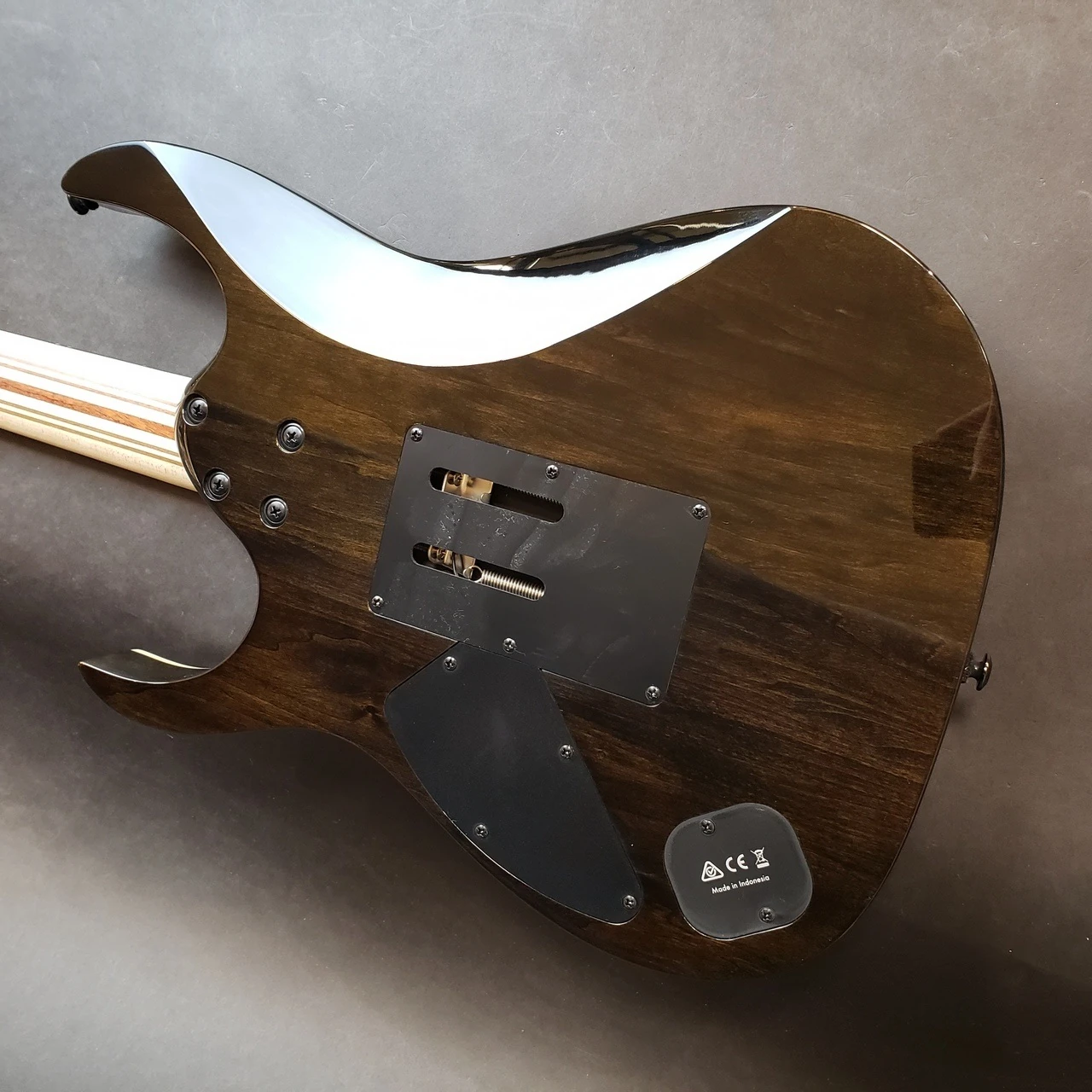

RG1270K rear
Rear of body
2022 Fukuoka Guitar Show AD.
2022 Fukuoka Guitar Show advertisement
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Controls layout

Sources[]

  1. Ibanez RG1270K [Ibanez sample product NT] product listing, Guitar Selection/ Shimamura Gakki (Japanese retailer), archived October 2022
