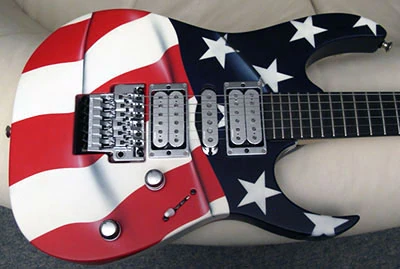

1997 RG-USA1
RG-USA1 (more images) Red copyright sprite

The RG-USA is an RG series solid body electric guitar model offered by Ibanez in 1997. They were produced in Japan by FujiGen as part of the upscale J Custom line.

The RG-USA features a painted representation of the flag of the United States of America. Three different designs were painted and it is believed that each design is a one-off, meaning there were three total RG-USA guitars produced. These versions have been unofficially referred to as RG-USA1, RG-USA2 and RG-USA3, although they were never designated as such by Hoshino/Ibanez. The guitars have a thick matte/satin finish over the airbrushed flag design and a matching headstock.

The bodies of the RG-USA guitars are believed to be basswood bolted to a maple Ultra neck with a 24-fret ebony fingerboard with offset abalone dots at the 12th fret. Components include chrome DiMarzio Evolution pickups mounted in pickup rings with a pair of humbuckers flanking a single-coil (these are the same pickups as in the JEM10th), a Lo-Pro Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines and Free-lock strap locks.

The RG-USA was produced only in 1997.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for RG-USA
Model name: RG-USA
Year(s) offered: 1997
Sold in: Japan
Made in: Japan
Finish(es): Airbrushed American flag (3 designs)
Body
Body type:
Solid body
Body material:
Basswood (?)
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Strap buttons:
Gotoh Free Lock
Hardware color:
Chrome
Neck
Neck type:
RG J Custom Ultra
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Offset abalone dot at 12th fret
Frets:
24 / jumbo (SBB216-195)
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Evolution (H)
Middle pickup:
DiMarzio Evolution Single (S)
Neck pickup:
DiMarzio Evolution (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009/.011/.016/.024/.032/.042

Images[]

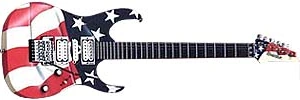

RG-USA 2

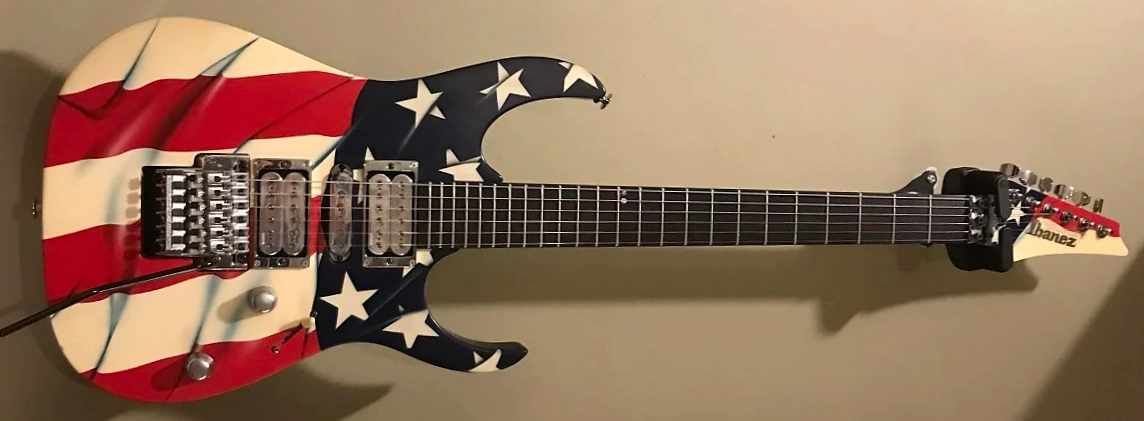

1997 Ibanez RG-USA2 J.Custom line Red copyright sprite
Additional details for the RG-USA2

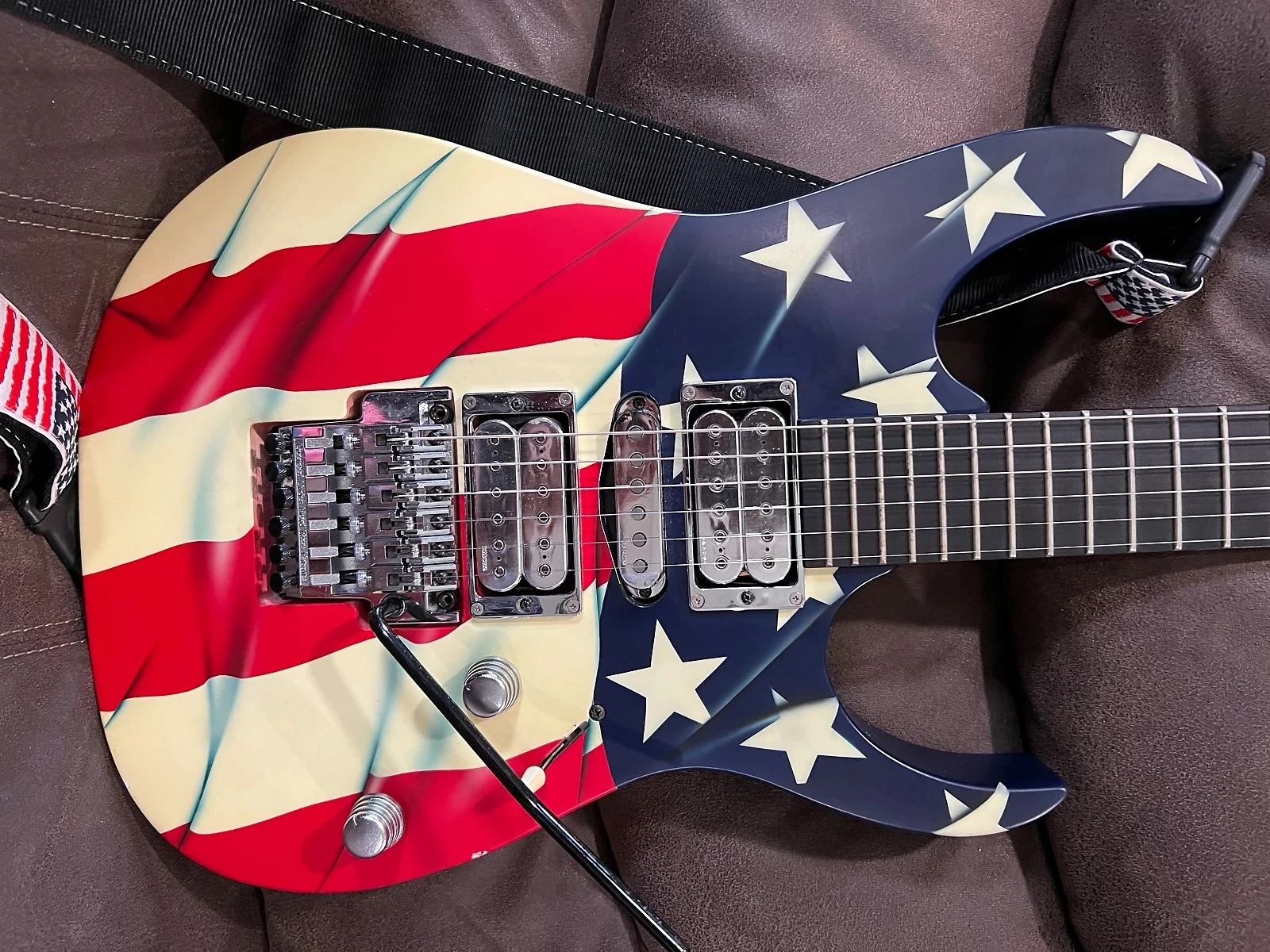

RG-USA2 front
Front of body

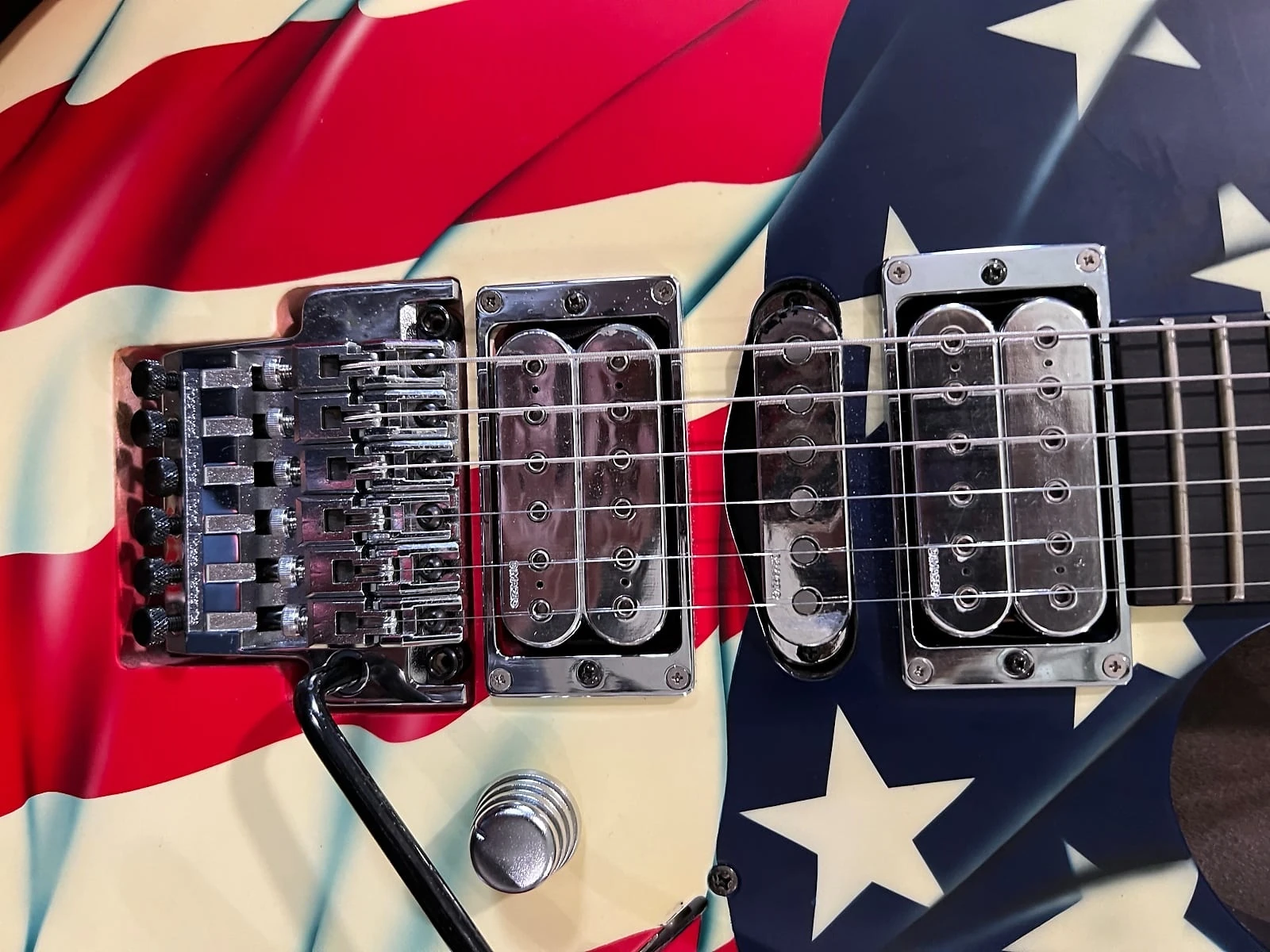

RG-USA2 DiMarzios
DiMarzio pickups

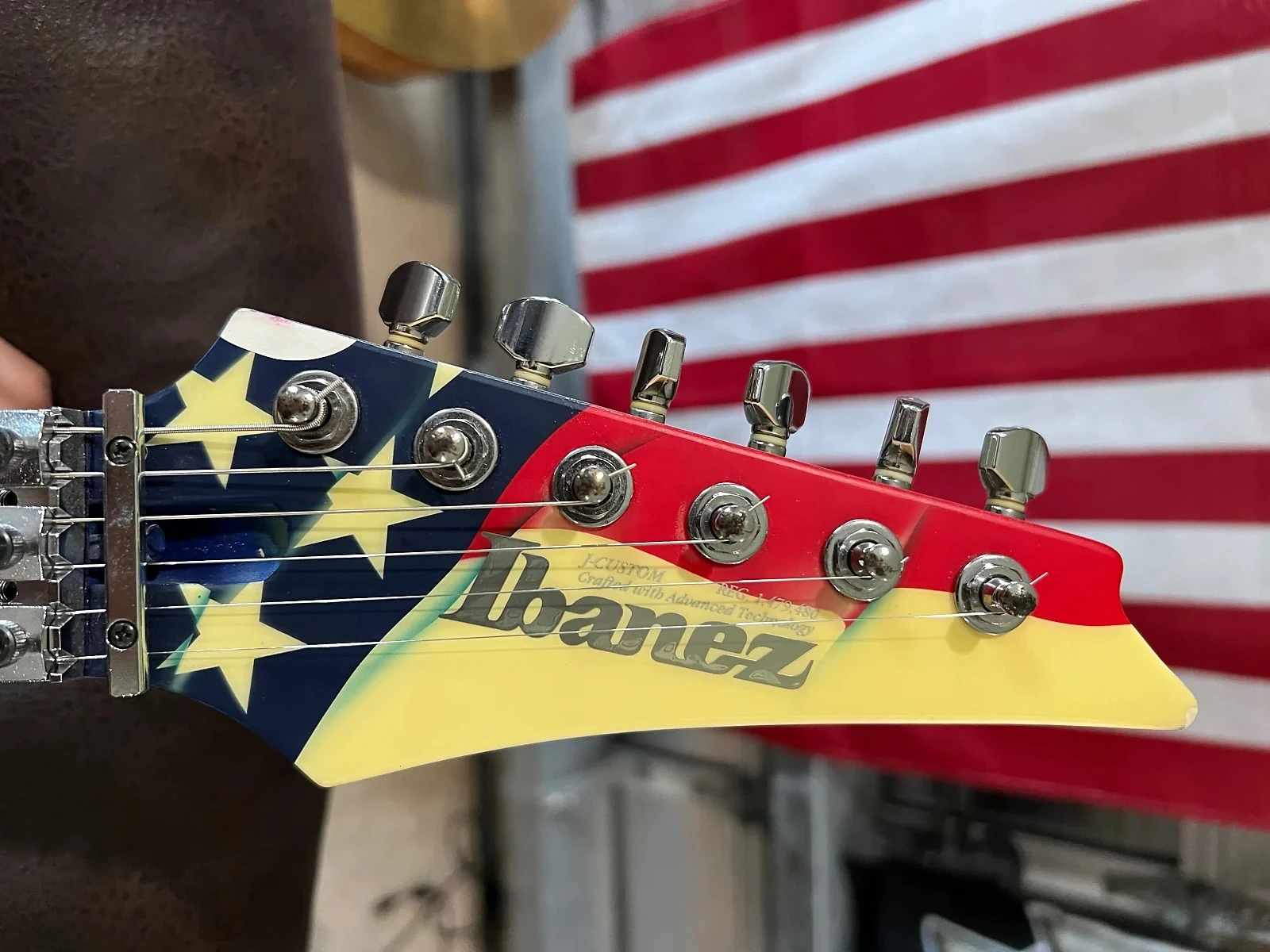

RG-USA2 headstock
Headstock

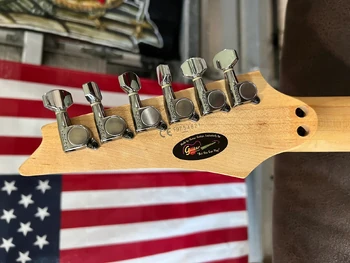

RG-USA2 tuners
Gotoh SG38

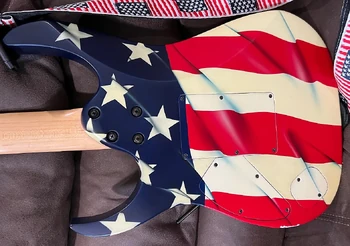

RG-USA2 rear
Rear of body
Other available finishes and details

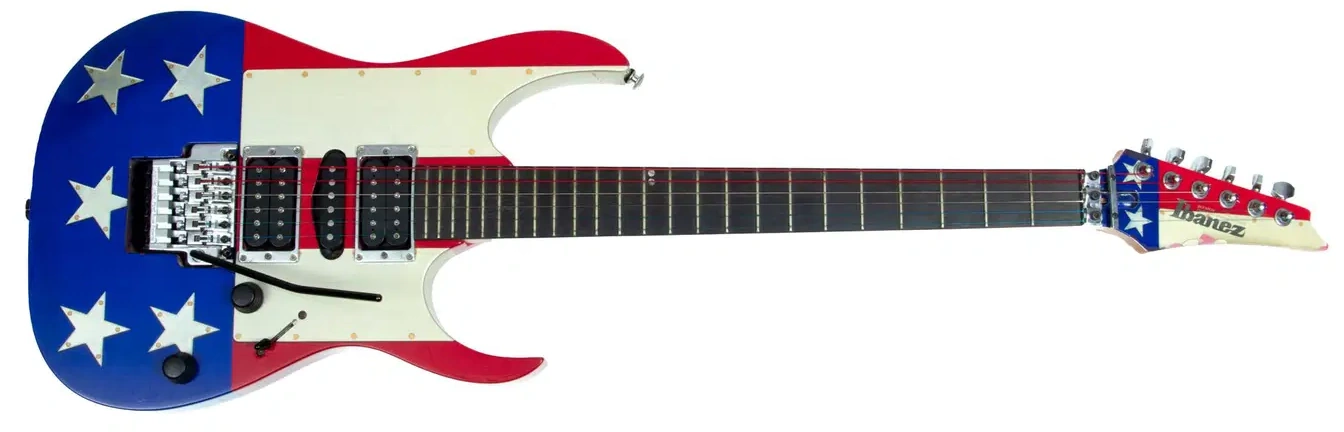

1997 RG-USA3
RG-USA3

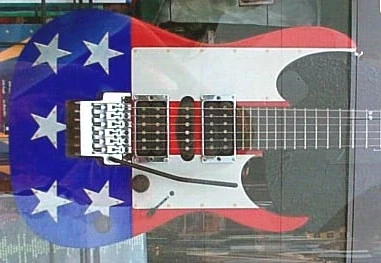

RG-USA 1
RG-USA1 (closeup)
RG-USA 3
RG-USA3 (closeup)

Sources[]

  • 1997 J-Custom guitars, Jemsite (enthusiast website), archived from the original October 2017
  • RG-USA1, Ibanez Register (enthusiast website), archived November 2007
  • RG-USA2, Ibanez Register (enthusiast website), archived November 2007
  • RG-USA3, Ibanez Register (enthusiast website), archived November 2007
