RD707-TG

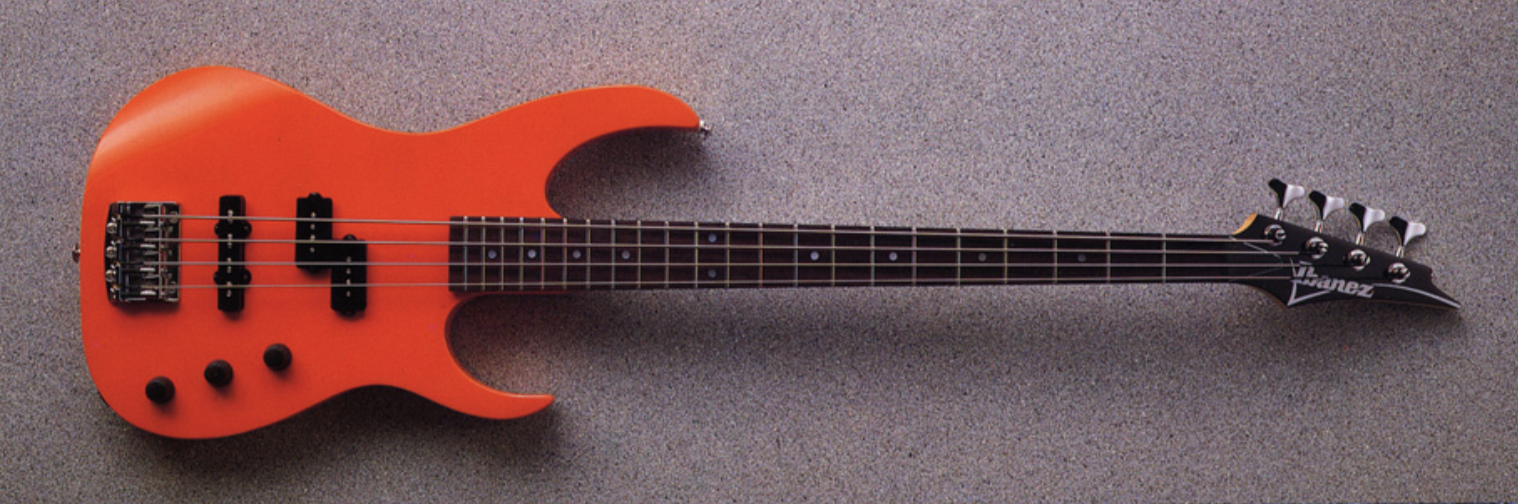

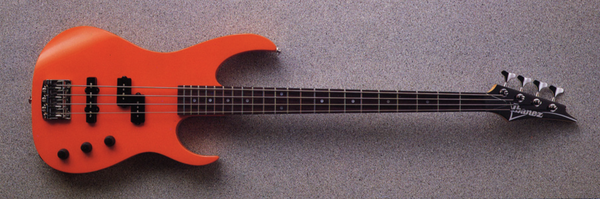

RD707 Tangerine (more images) Red copyright sprite

The RD707 is a Roadbass series solid-body electric bass model introduced by Ibanez for 1988. It was made in Japan by FujiGen.

Roadbass series bodies evolved since the previous year. The hard-edged square profile and pointed head are roughly in shape to the RG series introduced a year earlier.

The RD707 features a double-cutaway basswood body bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers and a black headstock. Components include a P50 and J50 pickups passive pickups, an Accu-cast BII fixed bridge with 19mm string spacing, a plastic nut, chrome hardware and Gotoh tuning machines.


The RD707F is fret-less version. The RD606 and RD808LE are similar models with different pickup configurations. The RD727 is basically the same model with Sharktooth inlays. The RB707E is a predecessor to RD707 with slightly different and more rounded body shape.

The RD707 was discontinued after 1990.


Specifications[]

Related content: Roadbass series | Models-icon
Specifications for RD707
Model name: RD707
Year(s) offered: 1988–1990
Sold in: Asia 1989 / Europe 1988-1990 / North America 1989 / USA 1989-1990
Made in: Japan
Price: MSRP: US$: 649.95 (1989-1990)
Finish(es): Black (BK) 1989-1990 / Lavender (LD) 1990 / Magenta (MG) 1988-1989 / Red (RD) 1988;1990 / Tangerine (TG) 1988 / White (WH) 1989-1990/ Yellow (YL) 1988
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Bolt-on
Bridge:
Accu-cast BII
Hardware color:
Chrome
Neck
Neck type:
RD neck
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
22
Nut:
plastic (black) (40mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
J50 passive
Neck pickup:
P50 passive
Controls:
Master volume / Master tone / balancer
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional finishes & details

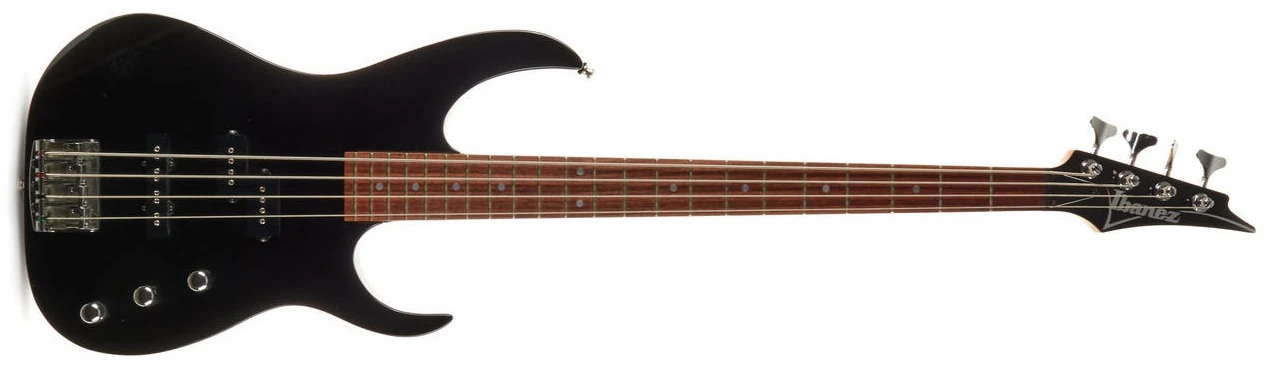

RD707-BK
Black

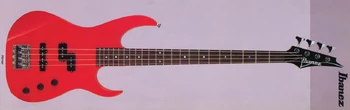

RD707-MG
Magenta
RD707-LD
Lavender

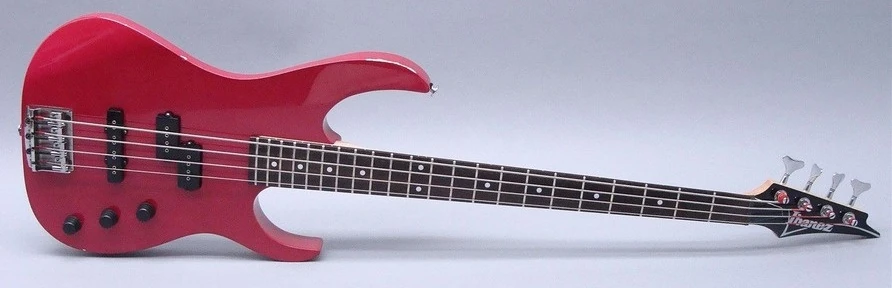

RD707-RD
Red

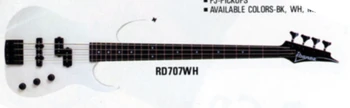

RD707-WH
White

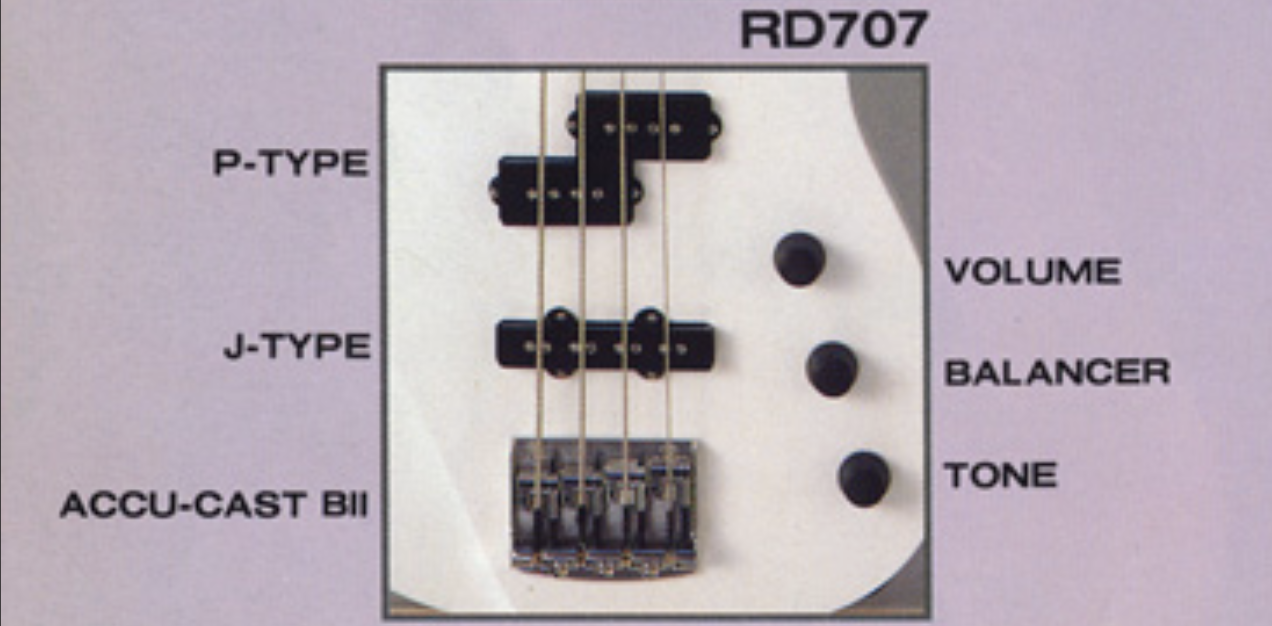

ControlsRD707
Controls layout
Wimage An image for this article is missing!
An image of the RD707 Yellow (YL) is wanted for this article. You can help by finding, uploading and adding it!
