2016 RC720 CNF
RC720 Charcoal Brown Flat Red copyright sprite

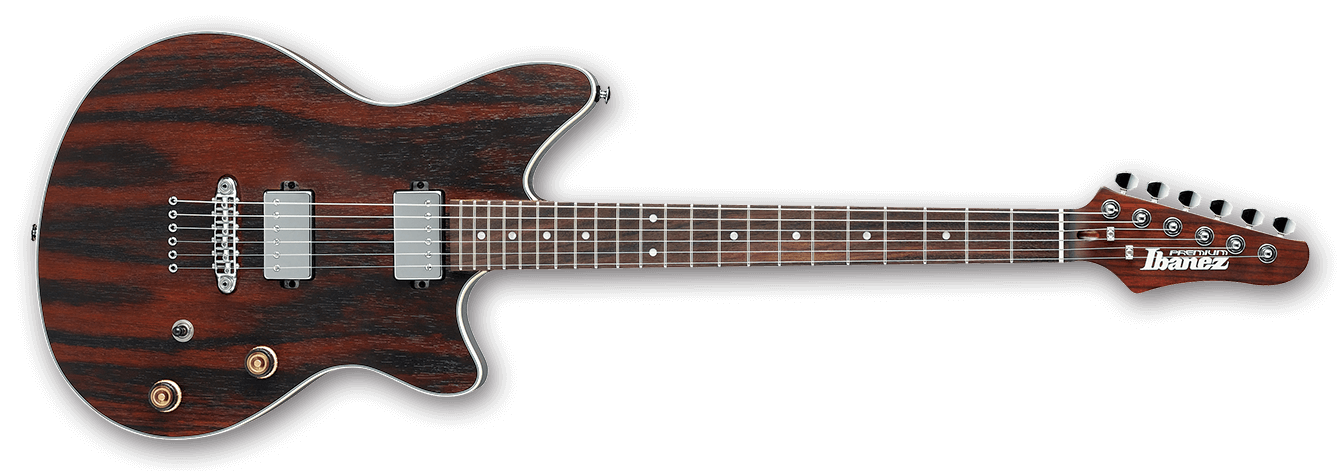

The RC720 is a Roadcore series solid body electric guitar model introduced by Ibanez in 2015. It was produced in Indonesian as part of the mid-tier Premium line.

The RC720 features a retro-styled, slab mahogany body with rosewood top and back bolted to a maple neck with 22-fret rosewood fingerboard with dot position markers. Components include dual Ibanez Core-Tone humbucking pickups, a Tight Tune fixed bridge with through body string routing and Sure Grip III knobs.

The RC720 was discontinued after 2016.

Specifications

Specifications for RC720
Year(s) produced: 2015–2016
Sold in: Europe
Made in: Indonesia
Finish(es): Charcoal Brown Flat (CNF)
Body
Body type:
Solid body
Body material:
Mahogany w/ rosewood top & back
Neck joint:
Bolt-on
Bridge:
Tight Tune fixed
Knob style:
Sure Grip III (gold)
Hardware color:
Chrome
Neck
Neck type:
RC
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
22 / medium (Premium edge treatment)
Nut:
White plastic (42mm)
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Core-Tone (H) passive/ alnico
Neck pickup:
Core-Tone (H) passive/ alnico
Controls:
Master volume / master tone / 3-way toggle
String gauge (factory):
.010–.046

Images

Additional details
HH 3-way toggle
Pickup switching
Controls VT3 Roadcore
Controls layout
