RC330T BBS

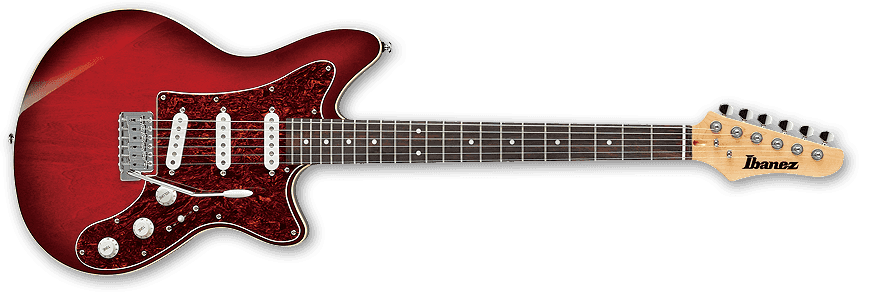

RC330T in Blackberry Sunburst (more images) Red copyright sprite

The RC330T is a Roadcore series solid body electric guitar model introduced by Ibanez in 2014. It was made in Indonesia.

The RC330T features a retro design, including a traditional bolt-on neck with plate joint, all-slab body with dual bindings and gloss-finished round-profile neck. It has a basswood body and a maple neck with a 22-fret rosewood fingerboard with dot inlays. Components include a synchronized tremolo bridge and three Ibanez single coil pickups mounted in a tortoise pickguard.

The RC330T is among only a handful of Ibanez models with a triple single coil pickup configuration.

The RC330T was discontinued after 2015.

Specifications[]

Related content: Roadcore series | Models-icon
Specifications for RC330T
Year(s) offered: 2014–2015
Sold in: Europe / North America (excl. USA), South America and Oceania / USA 2014
Made in: Indonesia
Finish(es): Blackberry Sunburst (BBS) / Blue Sparkle (BSP) / White (WH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Bolt-on
Bridge:
Standard tremolo
Pickguard:
BSP finish: White pearloid
Other finishes: Red tortoise
Knob style:
Plastic top hat (white)
Hardware color:
Chrome
Neck
Neck type:
RC
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
White plastic (42mm)
Electronics
Pickup configuration:
SSS
Bridge pickup:
Core-Tone (S)
Middle pickup:
Core-Tone (S)
Neck pickup:
Core-Tone (S)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Additional finishes/ details

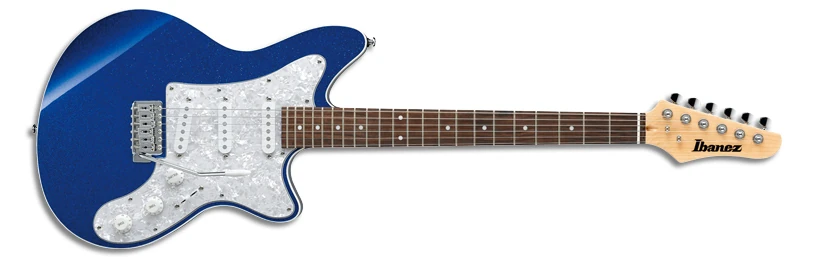

2014 RC330T BSP 1P 01
Blue Sparkle

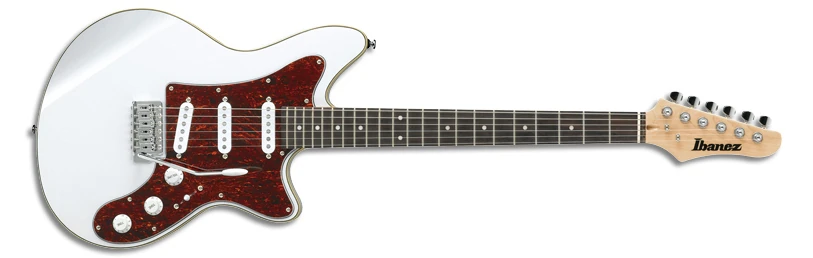

2014 RC330T WH 1P 01
White
SSS 5-way Roadcore
Pickup switching
Controls V2T5 Roadcore
Controls layout
