RC320 TCR

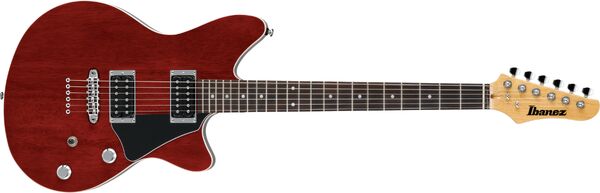

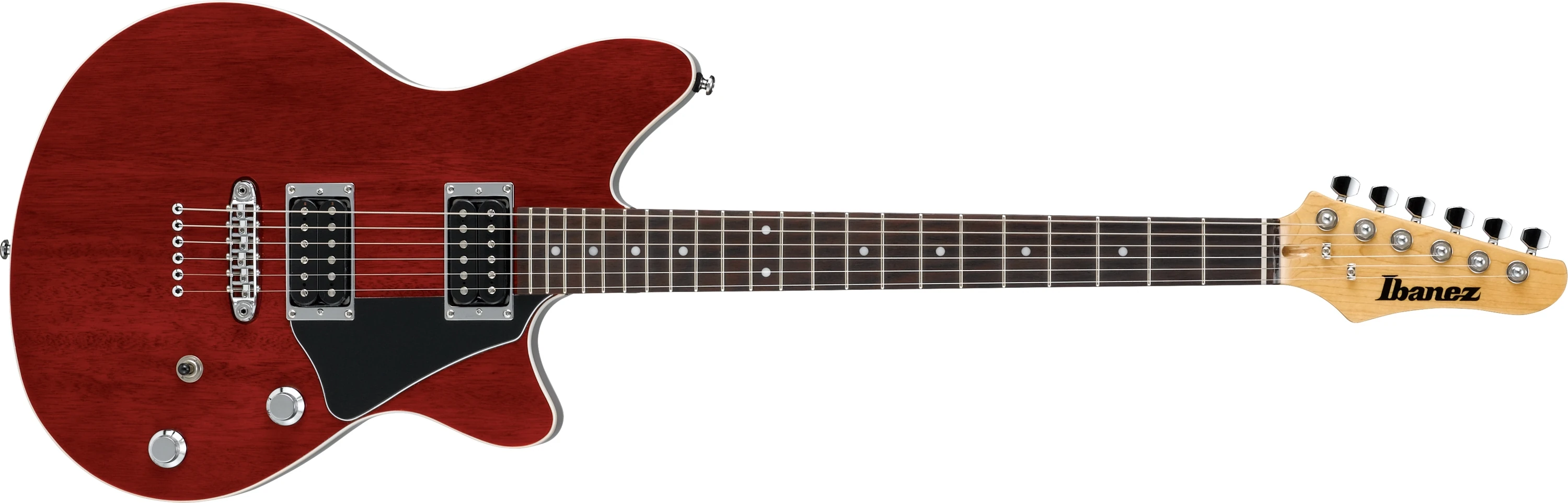

RC320 Transparent Cherry (more images) Red copyright sprite

The RC320 is a solid body electric guitar model introduced by Ibanez in late 2012. It was the initial model in the Roadcore series. It was produced in Indonesia.

The RC320 features a retro design, including a traditional bolt-on neck with plate joint, all-slab body with dual bindings and gloss-finished round-profile neck. It has a mahogany body with a gloss finished maple neck and 22-fret rosewood fingerboard with dot inlays. Components include dual Ibanez humbucking pickups mounted in chrome pickup rings, a fixed bridge with through-body stringing and a barrel output jack.

The RC320M is a similar model with a maple fingerboard which was introduced in 2014.

The RC320 was discontinued after 2016.

Specifications

Specifications for RC320
Year(s) produced: 2012–2016
Sold in: Worldwide (except Japan)
Made in: Indonesia
Finish(es): Black (BK) 2012–2014 / Transparent Cherry (TCR) / White (WH) 2015–2016 / Walnut Sunburst (WNS) 2015–2016
Body
Body type:
Solid body
Body material:
Mahogany w/ white binding (front and rear)
Neck joint:
Bolt-on plate
Bridge:
Tight Tune fixed
Pickguard:
3-ply black/ white/ black
Knob style:
Top hat (chrome)
Hardware color:
Chrome
Neck
Neck type:
RC
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
White plastic (42mm)
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Core-Tone (H) passive/ alnico
Neck pickup:
Core-Tone (H) passive/ alnico
Controls:
Master volume / master tone / 3-way toggle
String gauge (factory):
.010–.046

Images

Additional finishes/ details

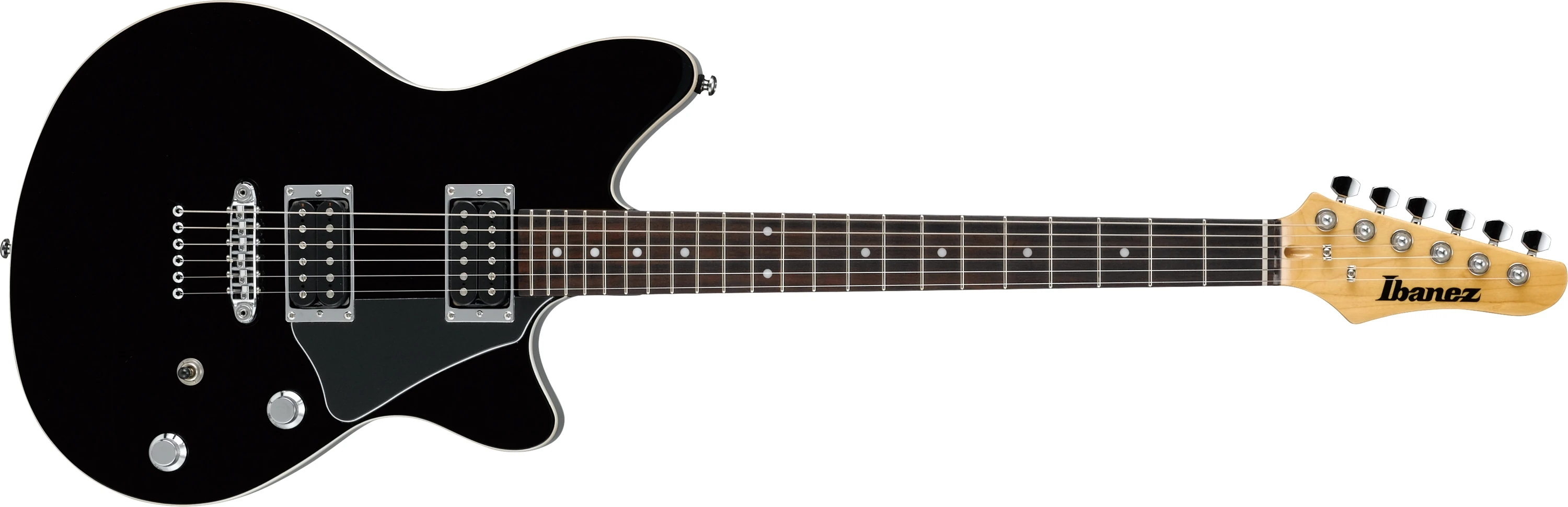

RC320 BK
Black

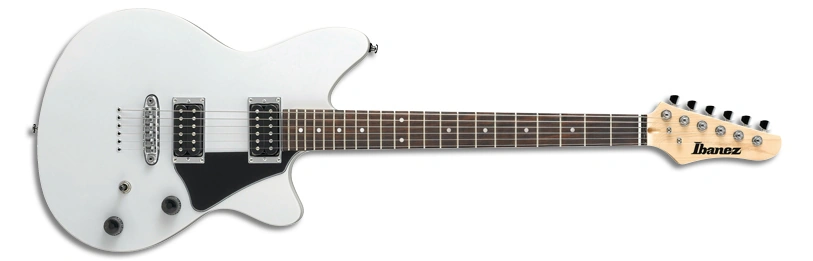

2016 RC320 WH
White

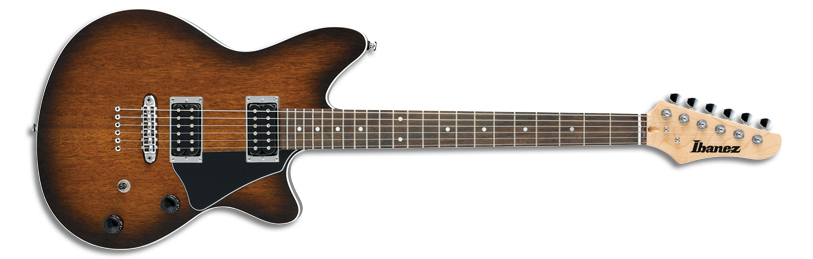

2016 RC320 WNS
Walnut Sunburst
HH 3-way toggle
Pickup switching
Controls VT3 Roadcore
Controls layout
