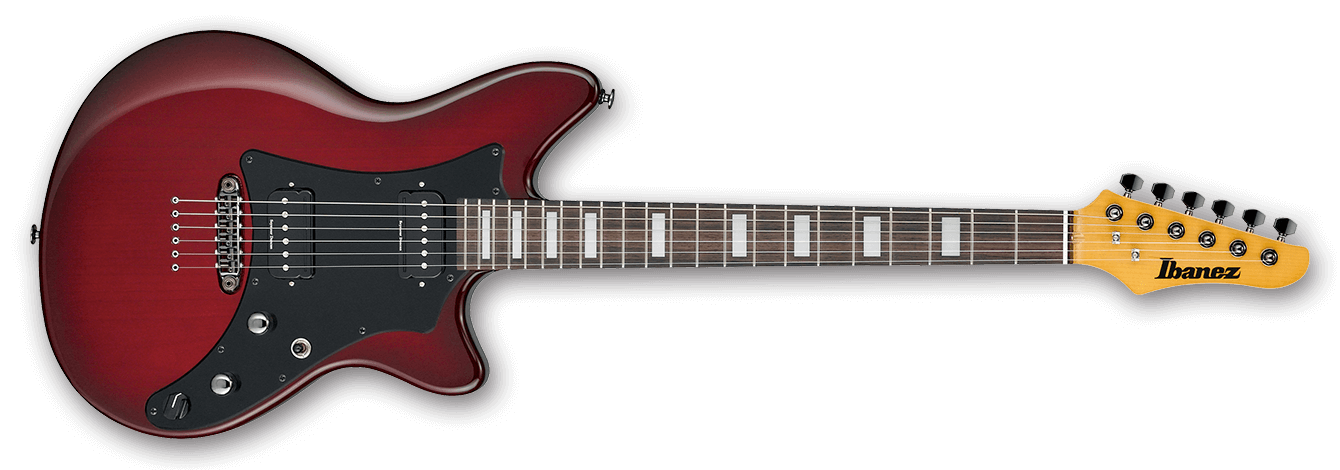

2016 RC2720 DCR
RC2720 Dark Cherry Red copyright sprite

The RC2720 is a Roadcore series solid body electric guitar model introduced by Ibanez in 2015. It was produced in Japan by FujiGen as part of the Prestige line. There was also a version sold as the RC2720PR; it is unclear if there were actually any differences in the two versions.

The RC2720 features an alder body bolted to a maple neck with a 22-fret rosewood fingerboard with block position markers. Components include a fixed bridge, bone nut and Gotoh locking tuning machines. It has Seymour Duncan P-Rails pickups which combine a Hot Rails coil with a Vintage P90 soapbar into a single humbucker-sized pickup. A special rotary switch allows the player to activate either the Hot Rails or Vintage P90 or both together to offer a wide variety of tones.

The RC2720 was discontinued after 2017.

Specifications[]

Related content: Roadcore series | Models-icon
Specifications for RC2720
Year(s) offered: 2015–2017
Sold in: Japan
Made in: Japan
Finish(es): Dark Cherry (DCR)
Body
Body type:
Solid body
Body material:
Alder
Neck joint:
Bolt-on
Bridge:
Tight Tune fixed
Pickguard:
Black
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
RC
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Acrylic block
Frets:
22 / medium (Prestige edge treatment)
Nut:
Bone (42mm)
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Seymour Duncan P-Rails soapbar (H)
Neck pickup:
Seymour Duncan P-Rails soapbar (H)
Controls:
Master volume / master tone / 3-way toggle pickup selector / rotary coil-split switch
String gauge (factory):
.010–.046

Images[]

Additional details

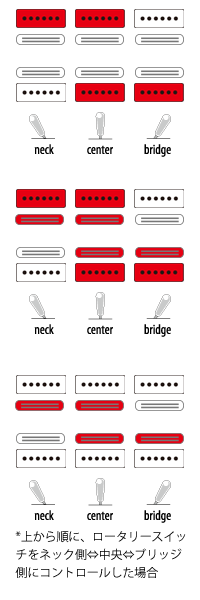

Dual-PRails 3-way rotary-switch
Pickup switching diagram
Controls VT3 rotary
Control layout
