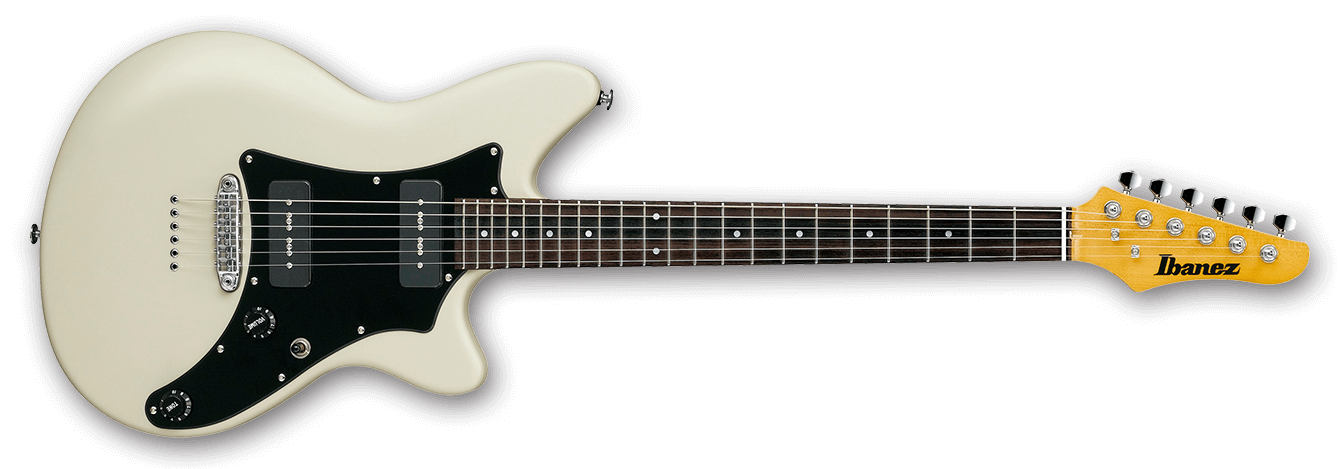

2016 RC1720S AWF
RC1720S Antique White Flat (more images) Red copyright sprite

The RC1720S is a Roadcore series solid body electric guitar model introduced by Ibanez in 2015. It was produced in Japan by FujiGen as part of the Prestige line. There was also a version sold as the RC1720SPR; it is unclear if there were actually any differences in the two versions.

The RC1720S features an alder body bolted to a maple neck with a 22-fret rosewood fingerboard with dot position markers. Components include a fixed bridge, dual Ibanez soapbar-style single coil pickups, a bone nut and Gotoh tuning machines.

The RC1720M is a similar model with a maple fingerboard and different pickups.

The RC1720S was discontinued after 2017.

Specifications

Specifications for RC1720S
Year(s) produced: 2015–2017
Sold in: Japan
Made in: Japan
Finish(es): Antique White Flat (AWF) / Transparent Yellow Flat (TYF)
Body
Body type:
Solid body
Body material:
Alder
Neck joint:
Bolt-on
Bridge:
Tight Tune fixed
Pickguard:
Black
Knob style:
Top hat (black)
Hardware color:
Chrome
Neck
Neck type:
RC
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
22 / medium (Prestige edge treatment)
Nut:
Bone (42mm)
Machine heads:
Gotoh SG381 (non-locking)
Electronics/ Strings
Pickup configuration:
SS
Bridge pickup:
Ibanez Super 9 soapbar (S)
Neck pickup:
Ibanez Super 9 soapbar (S)
Controls:
Master volume / master tone / 3-way toggle
String gauge (factory):
.010–.046

Images

Additional finishes/ details

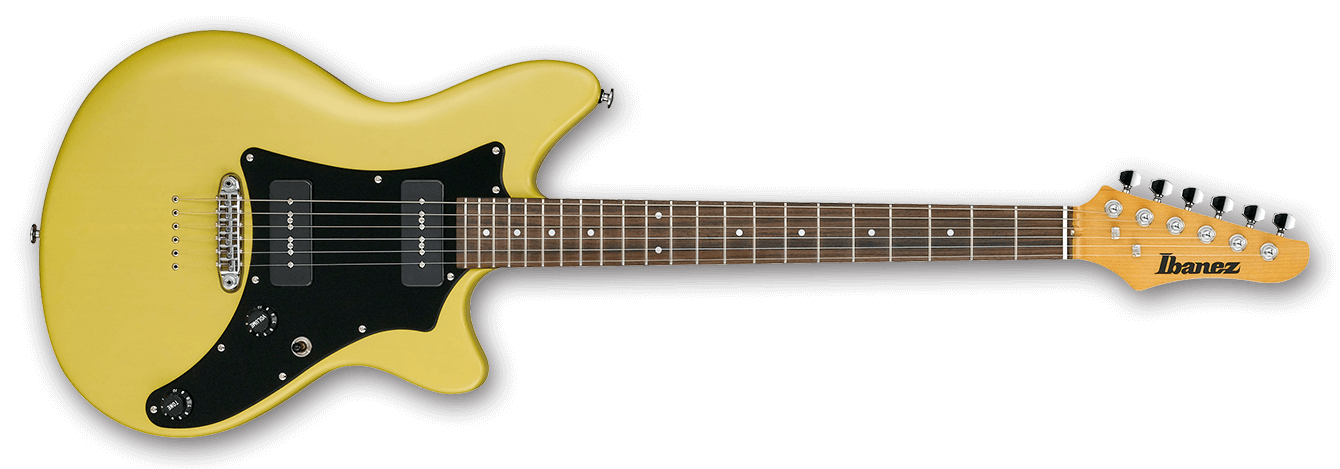

2016 RC1720S TYF
Transparent Yellow Flat
SS 3-way
Pickup switching diagram
Controls VT3 Roadcore-Prestige
Control layout
