RBM400 SOL
RBM400 Stained Oil (more images) Red copyright sprite

The RBM400 is a Reb Beach series solid body electric guitar model introduced by Ibanez in 1994. It is a signature model of American guitarist Reb Beach, who is best known for his work in the melodic rock band Winger. The RBM400 was made in Japan by FujiGen. It replaced the RBM2.

The RBM body style is the second unique body shape used by Beach after the modified Explorer styled WRB3 model. The body, which was designed by Reb Beach himself, features a deep cutaway at the back of the body all the way to the tremolo. It is also known as Voyager style.

The RBM400 features a mahogany body bolted to a Bolivian rosewood neck with a 22-fret Bolivian rosewood fingerboard with clay dot position markers. Components include Ibanez pickups with a humbucker at the bridge and single coil-sized humbuckers in the middle and neck positions and a Lo Pro Edge double locking tremolo bridge.

The RBM100 is a similar model with a maple neck and rosewood fretboard.

The RBM400 was discontinued after 1995 along with the rest of the Reb Beach signature models.

Specifications[]

Related content: Reb Beach series | Models-icon
Specifications for RBM400
Model name: RBM400
Year(s) offered: 1994–1995
Sold in: Europe / Japan
Made in: Japan
Finish(es): Stained Oil (SOL) a.k.a. Oil (OL)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Pickguard:
Brass
Hardware color:
Gold
Neck
Neck type:
RBM
Neck material:
1-piece Bolivian rosewood
Scale length:
648mm/ 25½"
Fingerboard material:
Bolivian rosewood
Fingerboard inlays:
Clay dot
Frets:
22 / Dunlop #6130
Nut:
Locking
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
Ibanez HB2 (H)
Middle pickup:
Ibanez SB1 (H)
Neck pickup:
Ibanez SB1 (H)
Controls:
Master volume / 5-way lever pickup selector / coil-split mini-toggle
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

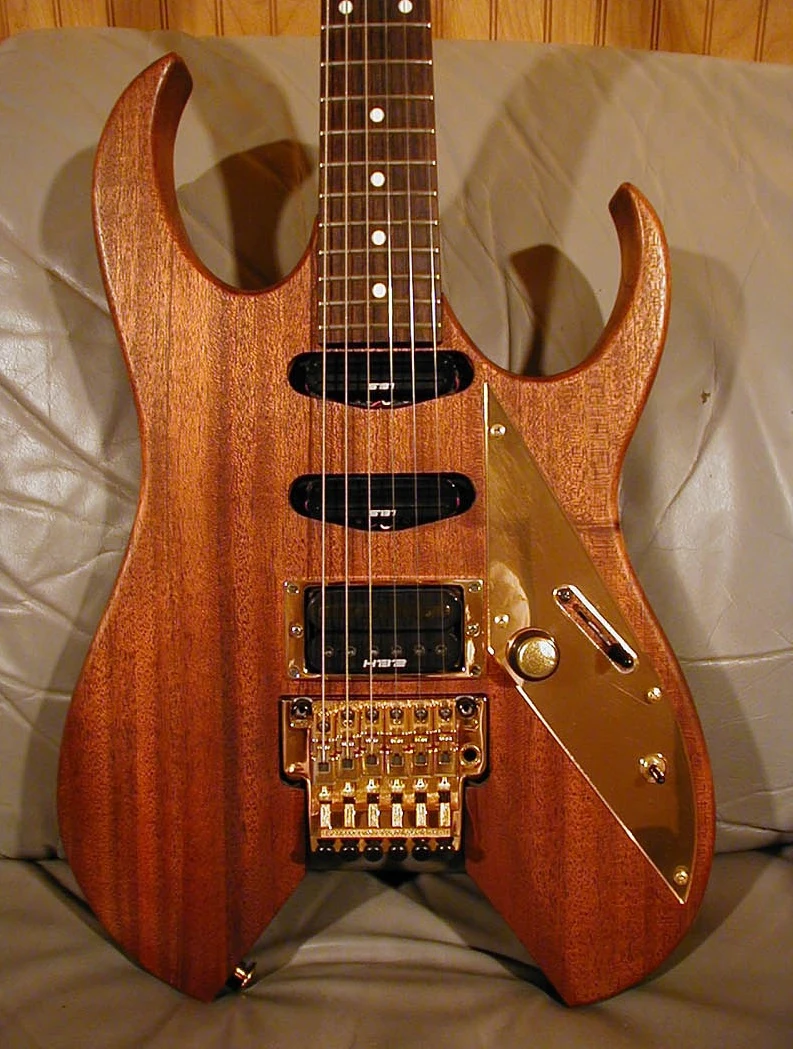

RBM400 SOL front
Front of body

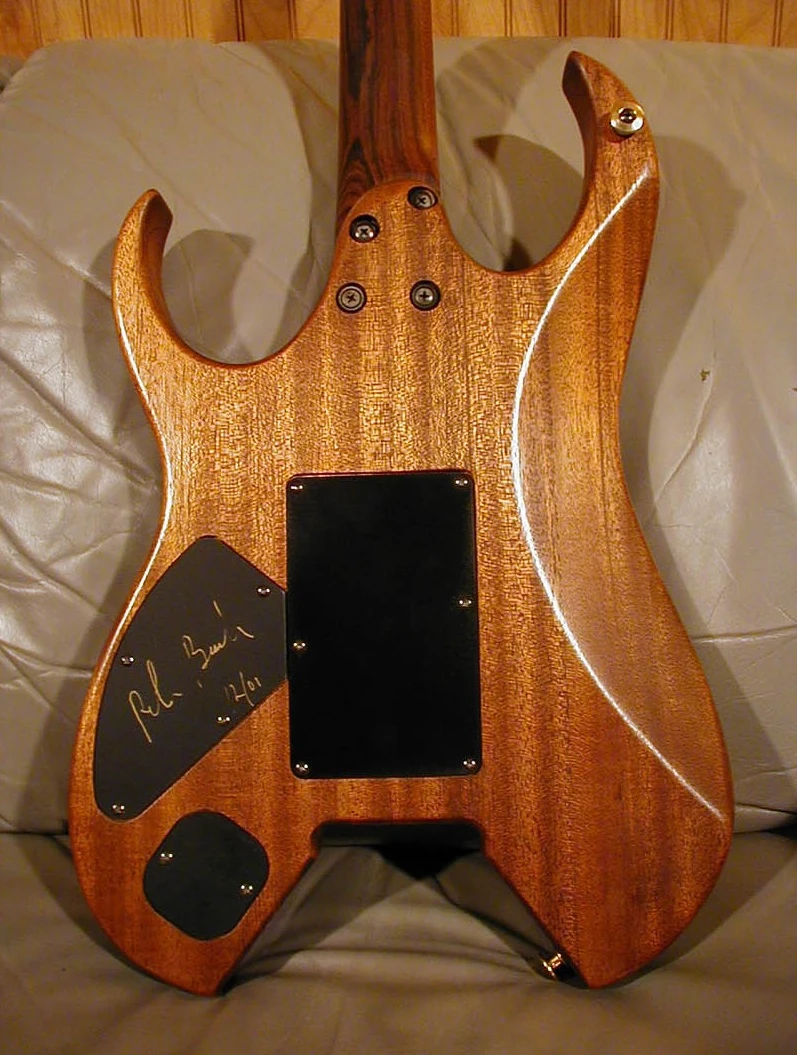

RBM400 SOL rear
Rear of body
Wiring-diagram 1994 RBM100-RBM400
Wiring diagram[1]

Video[]

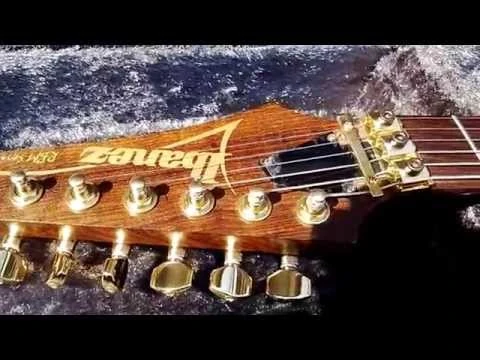

Ibanez RBM400 unboxing


Sources[]

  1. RBM400 wiring diagram, Ibanez, archived April 2003
