RBM100 BK
RBM100 Black (more images) Red copyright sprite

The RBM100 is a Reb Beach series solid body electric guitar model introduced by Ibanez for 1994 . It is a signature model of American guitarist Reb Beach, who is best known for his work in the melodic rock band Winger. The RBM100 was made in Japan by FujiGen. It replaced the RBM2.

The RBM body style is the second unique body shape used by Beach after the modified Explorer styled WRB3 model. The body, which was designed by Reb Beach himself, features a deep cutaway at the back of the body all the way to the tremolo. It is also known as Voyager style.

The RBM100 features a mahogany body bolted to a maple neck with a 22-fret rosewood fingerboard with clay dot position markers. Components include Ibanez pickups with a humbucker at the bridge and single coil-sized humbuckers in the middle and neck positions, a Lo Pro-Edge double locking tremolo bridge and gold hardware.

The RBM10 is a less expensive version which was made in Korea. The RBM400 is a similar model with a Bolivian rosewood neck and fretboard.

The RBM100 was sold only in Europe and Japan and was discontinued after 1994.

Specifications[]

Related content: Reb Beach series | Models-icon
Specifications for RBM100
Model name: RBM100
Year(s) offered: 1994
Sold in: Europe / Japan
Made in: Japan
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Pickguard:
Brass
Knob style:
Stainless steel Metal Dome w/ rubber rings (gold and black)
Hardware color:
Gold
Neck
Neck type:
RBM
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Clay dot
Frets:
22 / Dunlop #6130
Nut:
Locking (42.5mm)
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
Ibanez HB2 (H)
Middle pickup:
Ibanez SB1 (S)
Neck pickup:
Ibanez SB1 (S)
Controls:
Master volume / 5-way lever pickup selector / coil-split mini-toggle
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

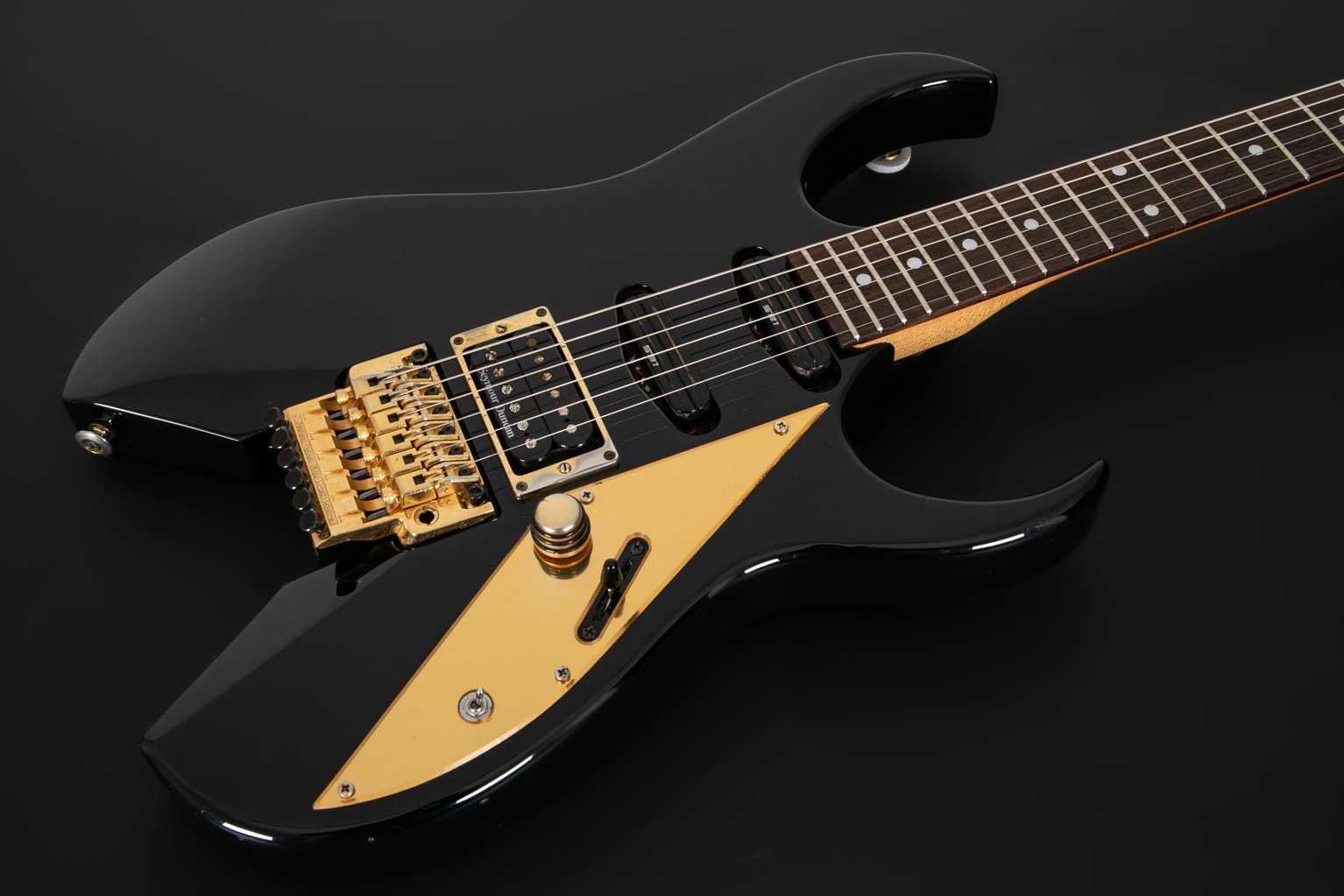

RBM100-BK front
Body front

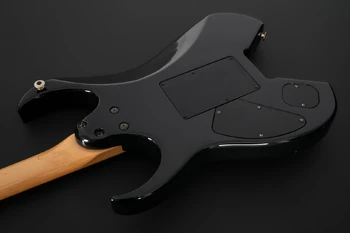

RBM100-BK rear
Body rear

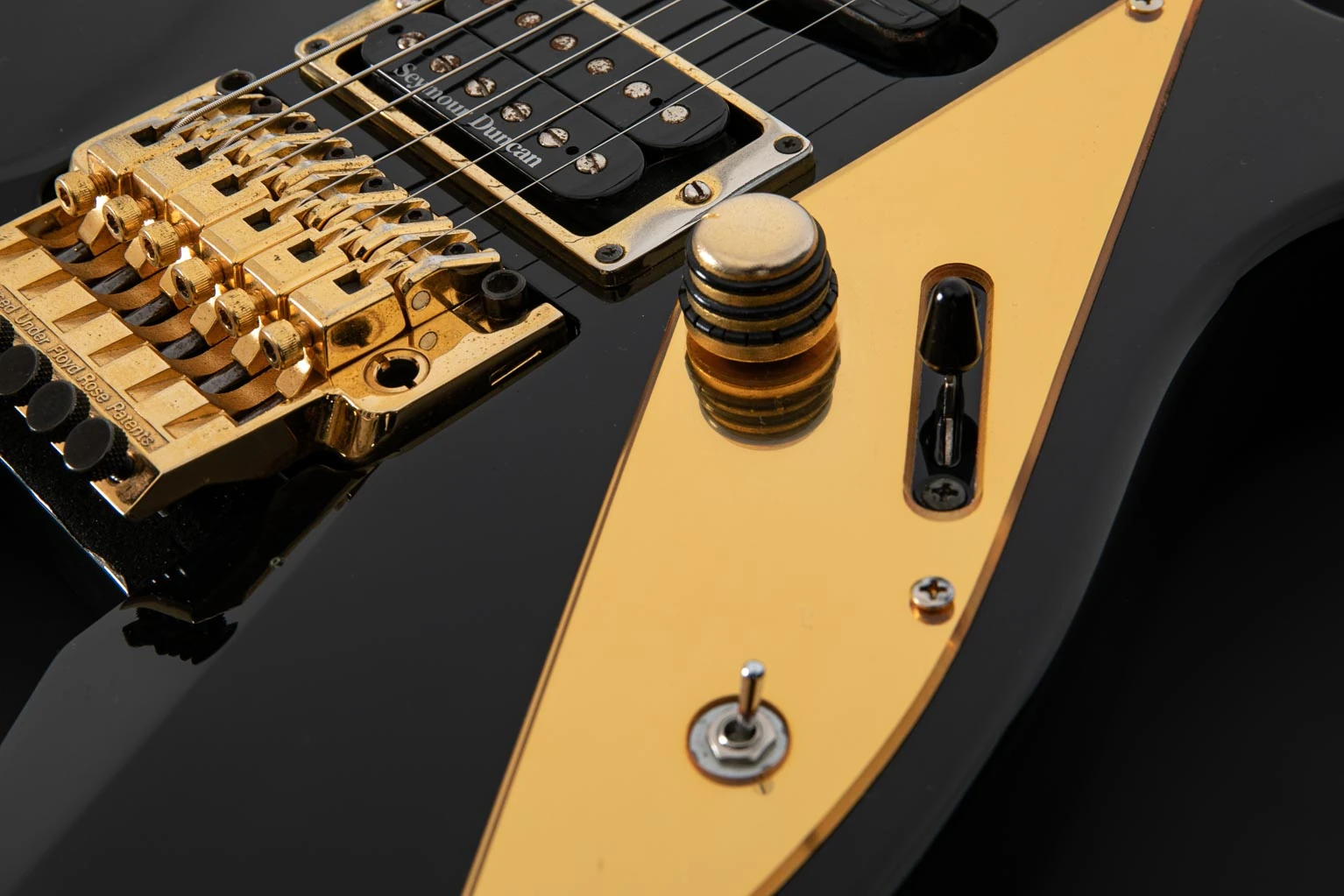

RBM100-BK controls
Controls

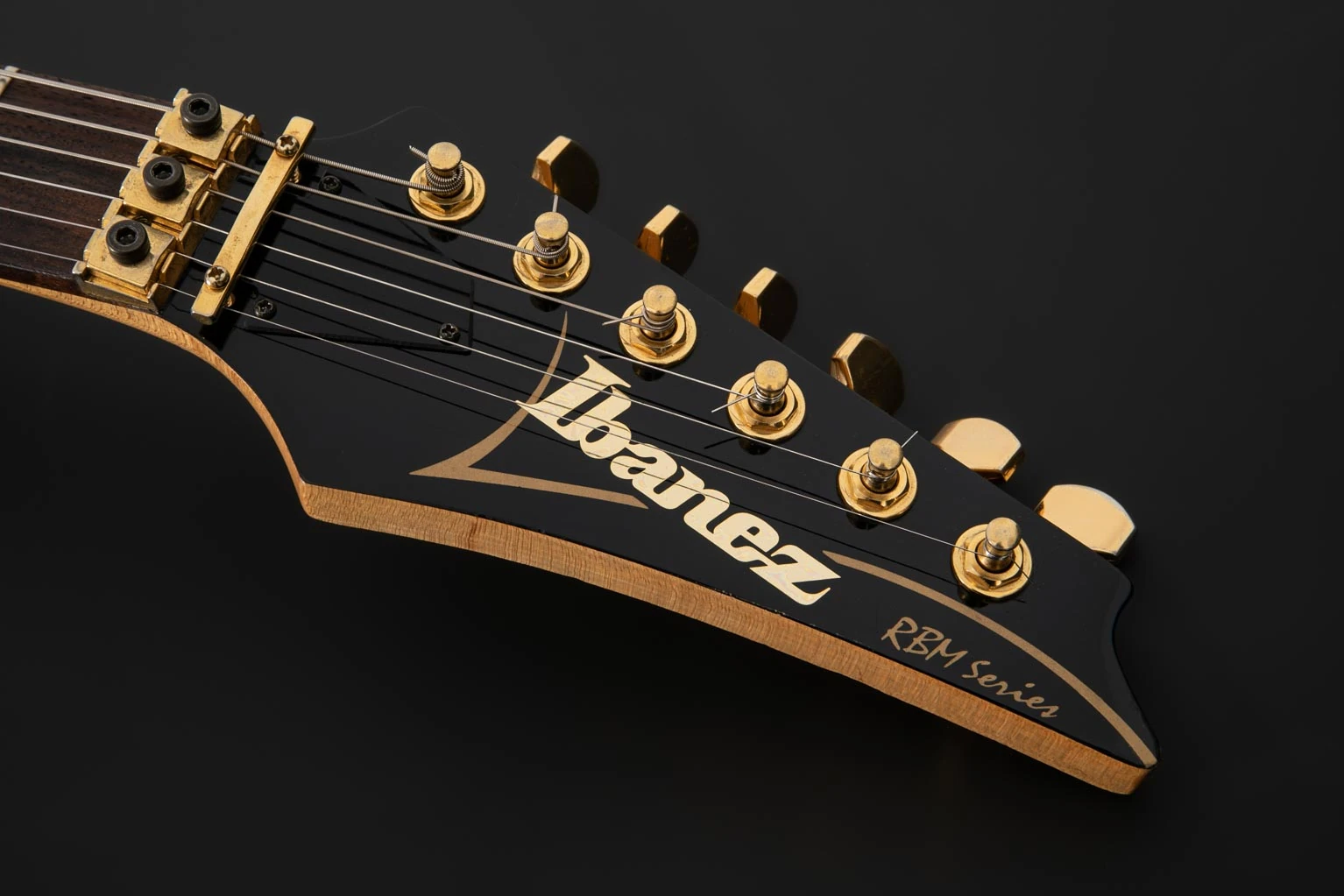

RBM100-BK headstock
Headstock

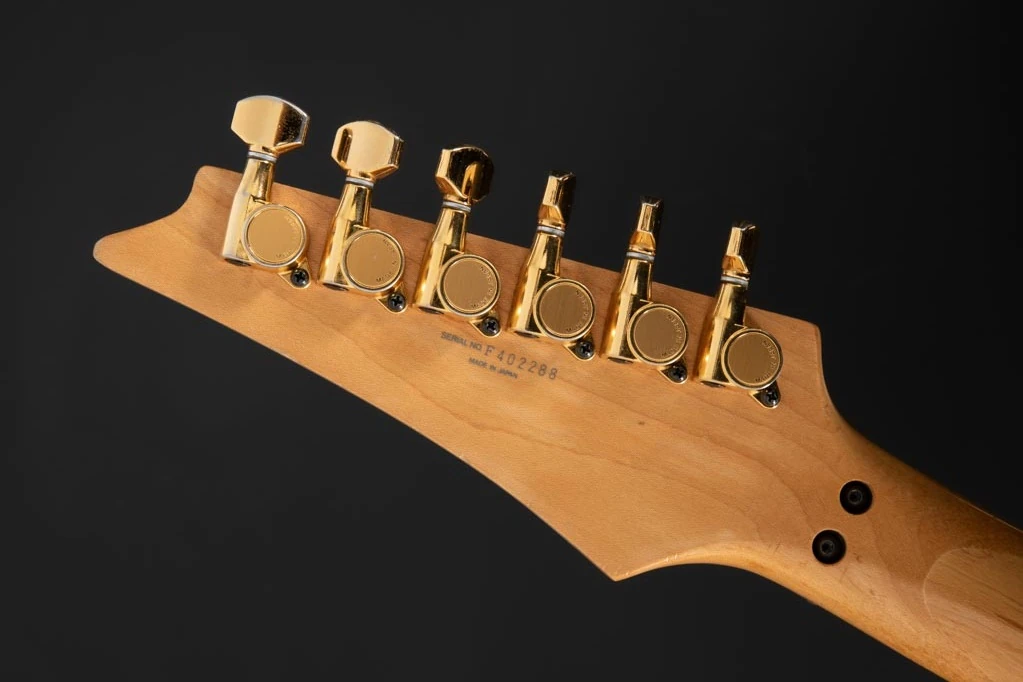

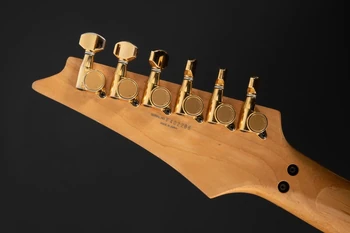

RBM100-BK tuners
Machine heads

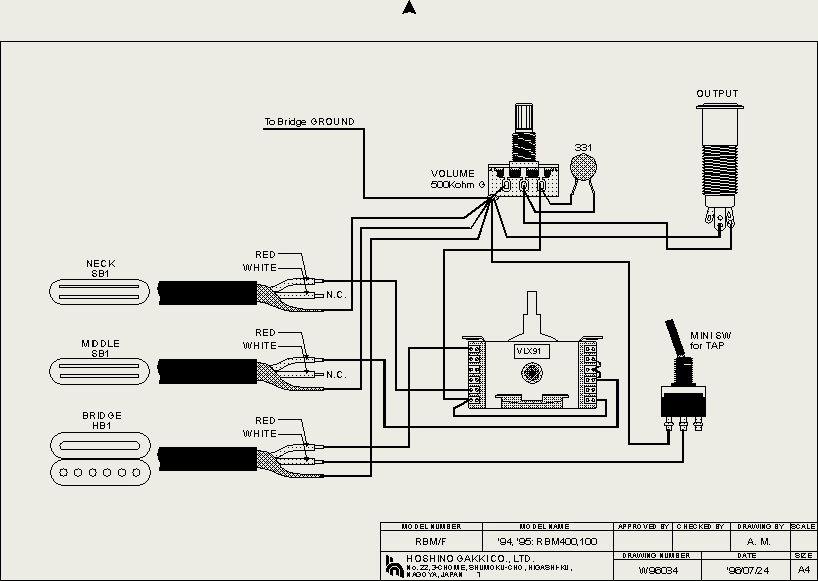

Wiring-diagram 1994 RBM100-RBM400
Wiring diagram[1]

Sources[]

  1. RBM100 wiring diagram, Ibanez, archived April 2003
