R7131A13H126B

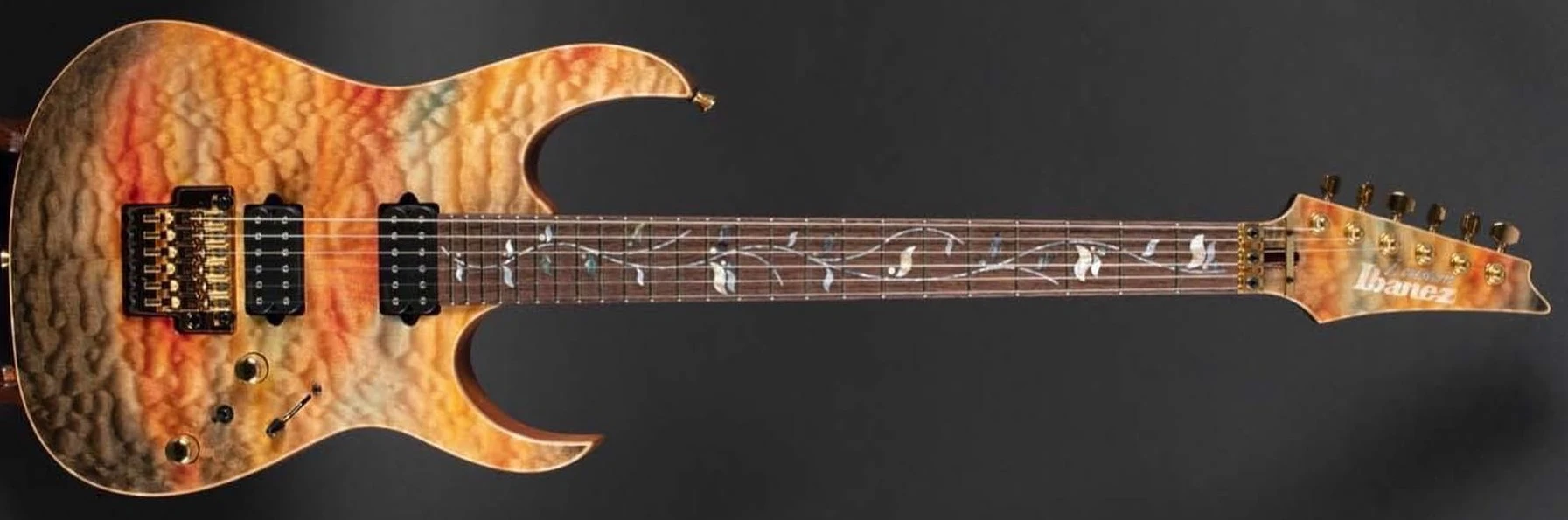

R7131A13H1 Sunset Sky (more images) Red copyright sprite

The R7131A13H1 is an RG series solid body electric guitar model introduced by Ibanez for 2022. It was crafted in Japan by Sugi as part of the high-end J Custom line. It was also known as the R7131A13H1-26B

The R7131A13H1 is a one off model which is sold exclusively by select Japanese and European music retailers.

The R7131A13H1 features an exotic maple top on an African mahogany body bolted to a wenge and purpleheart neck with a 24-fret wenge fingerboard with pearl abalone tree of life inlays and luminlay side dots. Components include a pair of DiMarzio Fusion EdgeHumbucking pickups, a Lo-Pro Edge double locking tremolo bridge, Gotoh tuning machines and Gotoh Strap lock pins.

Only one piece was produced.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for R7131A13H1 / R7131A13H1-26B
Model name: R7131A13H1 / R7131A13H1-26B
Year(s) offered: 2022
Sold in: Japan / Europe
Made in: Japan
Finish(es): Sunset Sky (SS)
Body
Body type:
Solid body
Body material:
African mahogany w/ exotic maple top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Knob style:
Gotoh VK1-19 (Gold)
Hardware color:
Gold
Neck
Neck type:
RG J Custom Super Wizard
Neck material:
3-piece wenge/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Wenge
Fingerboard inlays:
Pearl and abalone Tree of Life
Frets:
24 / jumbo stainless steel (J.Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG381
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
DiMarzio Fusion Edge (H) passive/ ceramic
Neck pickup:
DiMarzio Fusion Edge (H) passive/ ceramic
Controls:
Master volume / master tone / 3-way lever pickup selector / coil-split toggle
Output jack:
¼" stereo barrel (angled side mount)

Images[]

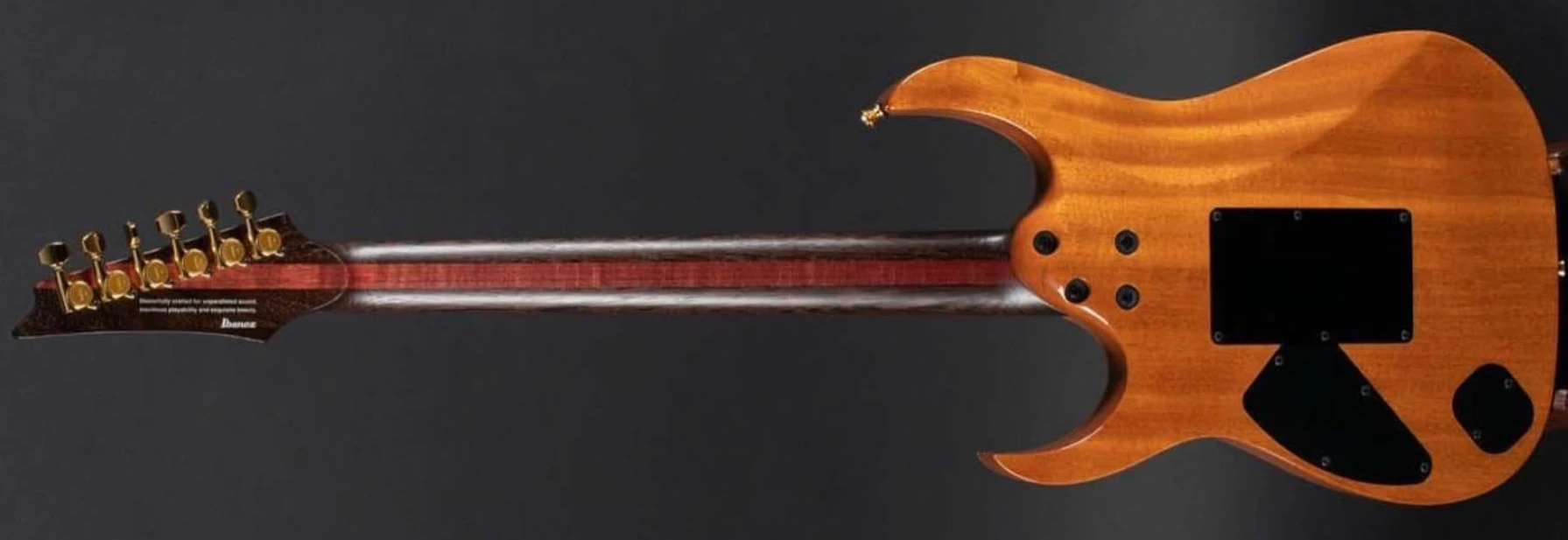

R7131A13H126B rear
2022 Ibanez R7131A13H1 ( Rear: African Mahogany body bolted to a 3pc wenge/purpleheart J.Custom Super Wizard neck and Gotoh SG381 machine heads ) Red copyright sprite
Additional details

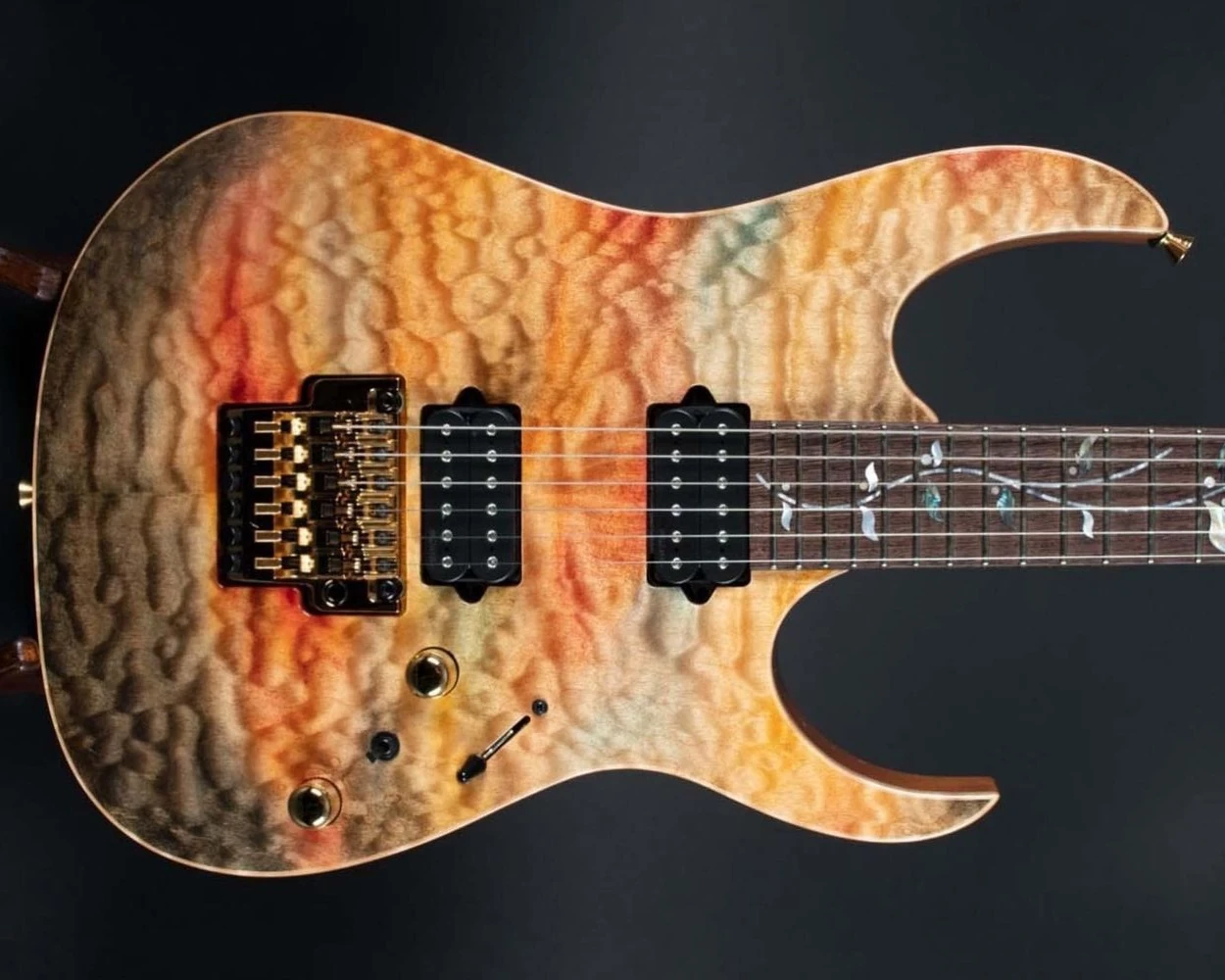

R7131A13H126B front
Front of body

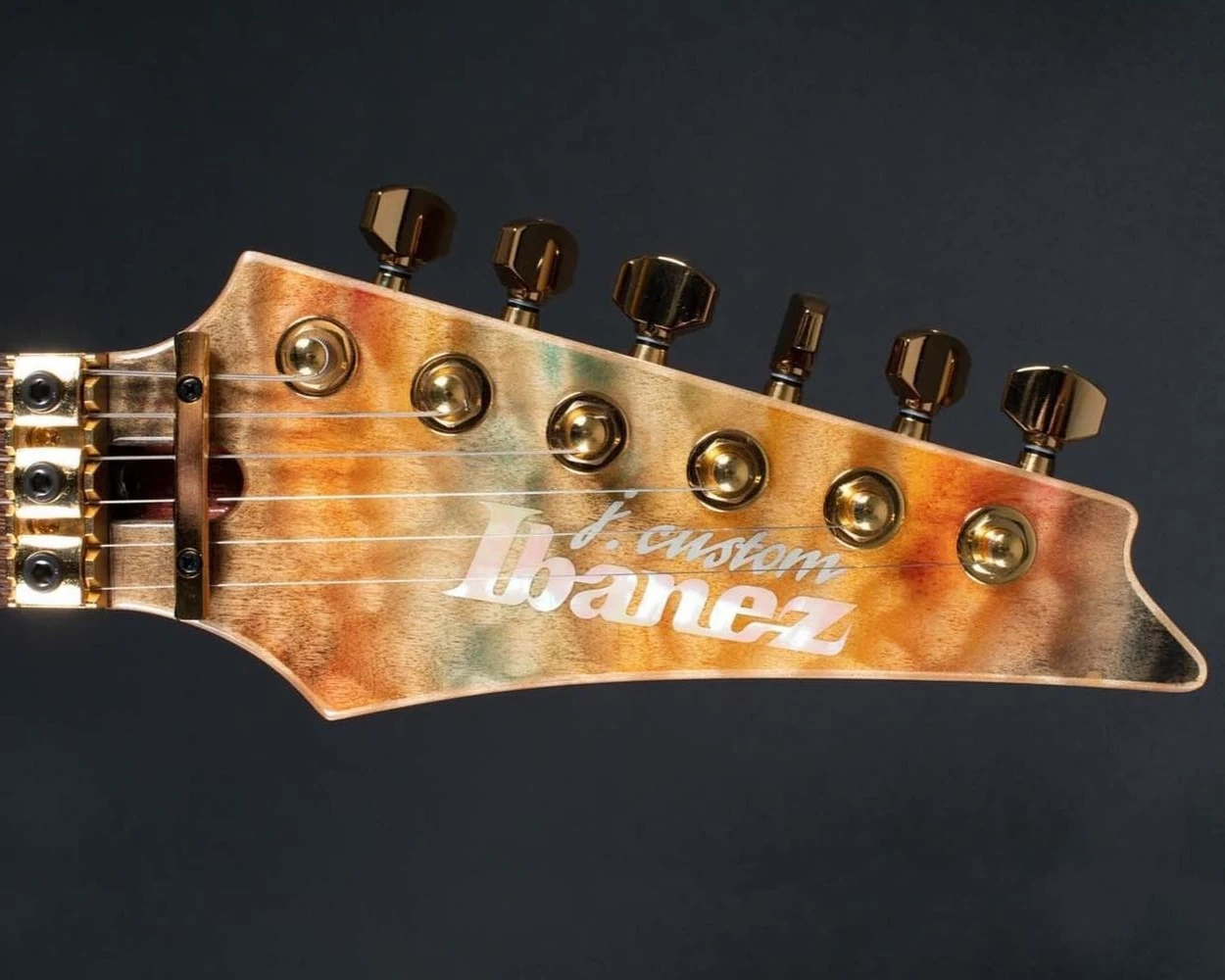

R7131A13H126B headstock
Headstock
HH 3-way-toggle coil-split-toggle
Pickup switching
Controls VT3L coil-split-toggle
Control layout
