2022 R5123A25G1-35A AM
R5123A25G1 Amber Red copyright sprite

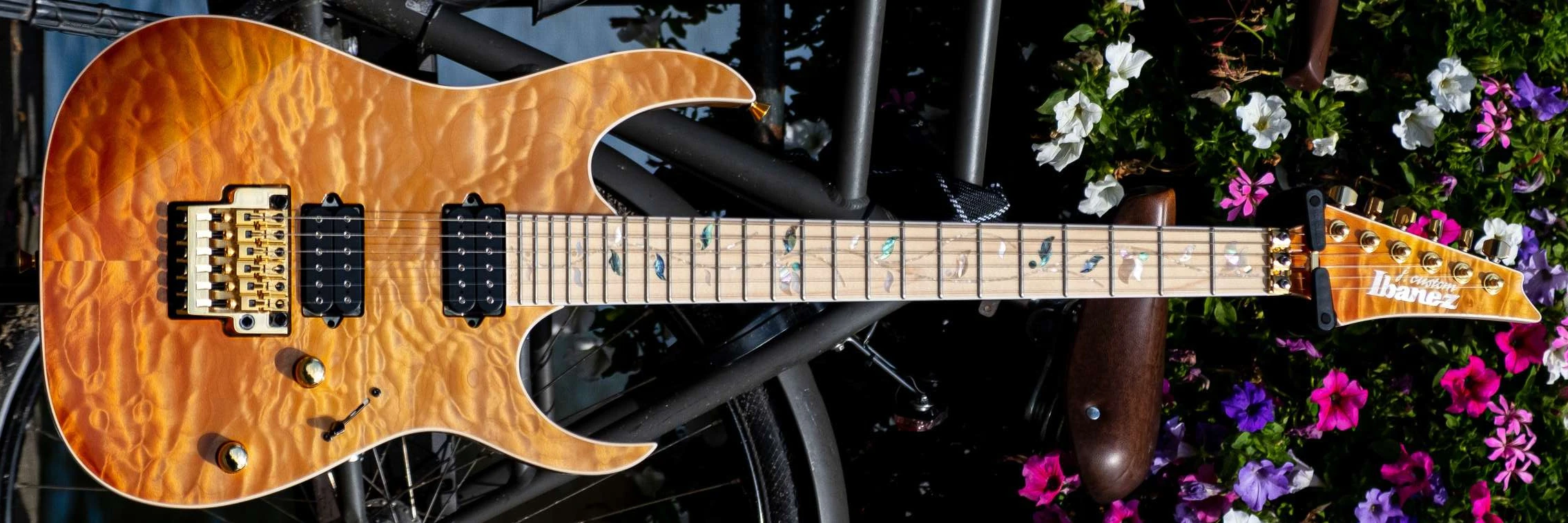

The R5123A25G1 is an RG series solid body electric guitar model introduced by Ibanez for 2022. It was crafted in Japan by Sugi as part of the high-end J Custom line. It is a spot model which was sold exclusively by European music retailer Axe Palace. It's also referred to as the R5123A25G1-35A.

The R5123A25G1 features a master grade quilted maple top on an ash body bolted to a maple and purpleheart neck with Velvetouch finish and a 24-fret maple fingerboard with pearl and abalone Tree of Life inlays and Luminlay side dots. Components include a pair of DiMarzio humbucking pickups with an Air Norton at the neck and The Tone Zone at the bridge, an Edge Zero double locking tremolo bridge with removable ZPS tuning stablizer, Gotoh tuning machines and Gotoh locking strap buttons.

Only a single example was produced.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for R5123A25G1 / R5123A25G1-35A
Model name: R5123A25G1 / R5123A25G1-35A
Year(s) offered: 2022
Sold in: Europe
Made in: Japan
Price: SMAP: €6,999.99
Finish(es): Amber (AM)
Body
Body type:
Solid body
Body material:
Ash w/ master grade quilted maple top
Neck joint:
AANJ
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer (10.8mm string spacing)
Strap buttons:
Gotoh Free Lock
Knob style:
Gotoh VK1-19 (knurled metal dome)
Hardware color:
Gold
Neck
Neck type:
JCRG Super Wizard w/ Velvetouch finish
Neck material:
3-piece maple/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Pearl/ abalone Tree of Life
Luminlay side dots
Frets:
24 / jumbo nickel silver (J. Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio The Tone Zone (H) passive/ alnico 5
Neck pickup:
DiMarzio Air Norton (H) passive/ alnico 5
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
